Model
Hotpoint RB536BK1BB
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB536BK1BBElectric Range
3 diagrams125 parts

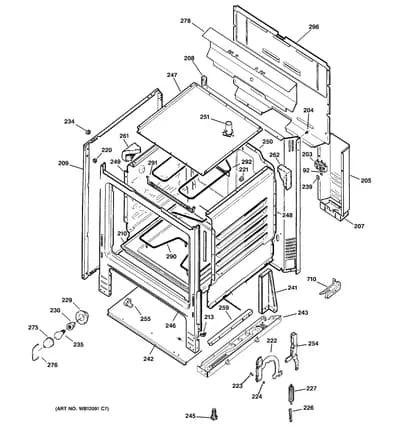

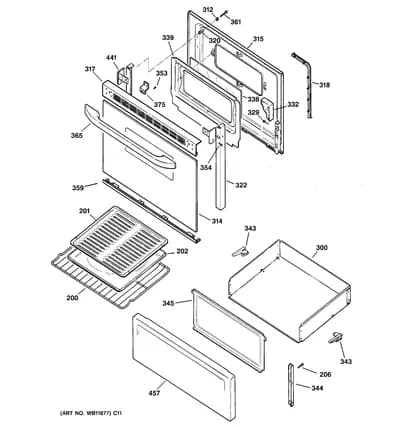

Parts Sections (3)
Diagram

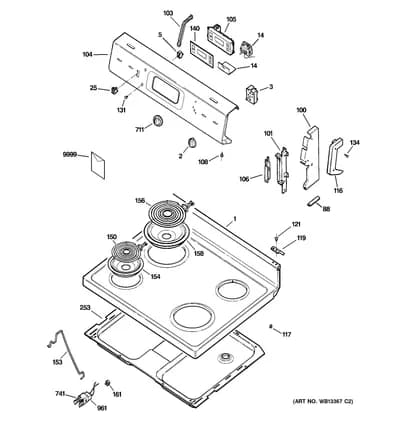

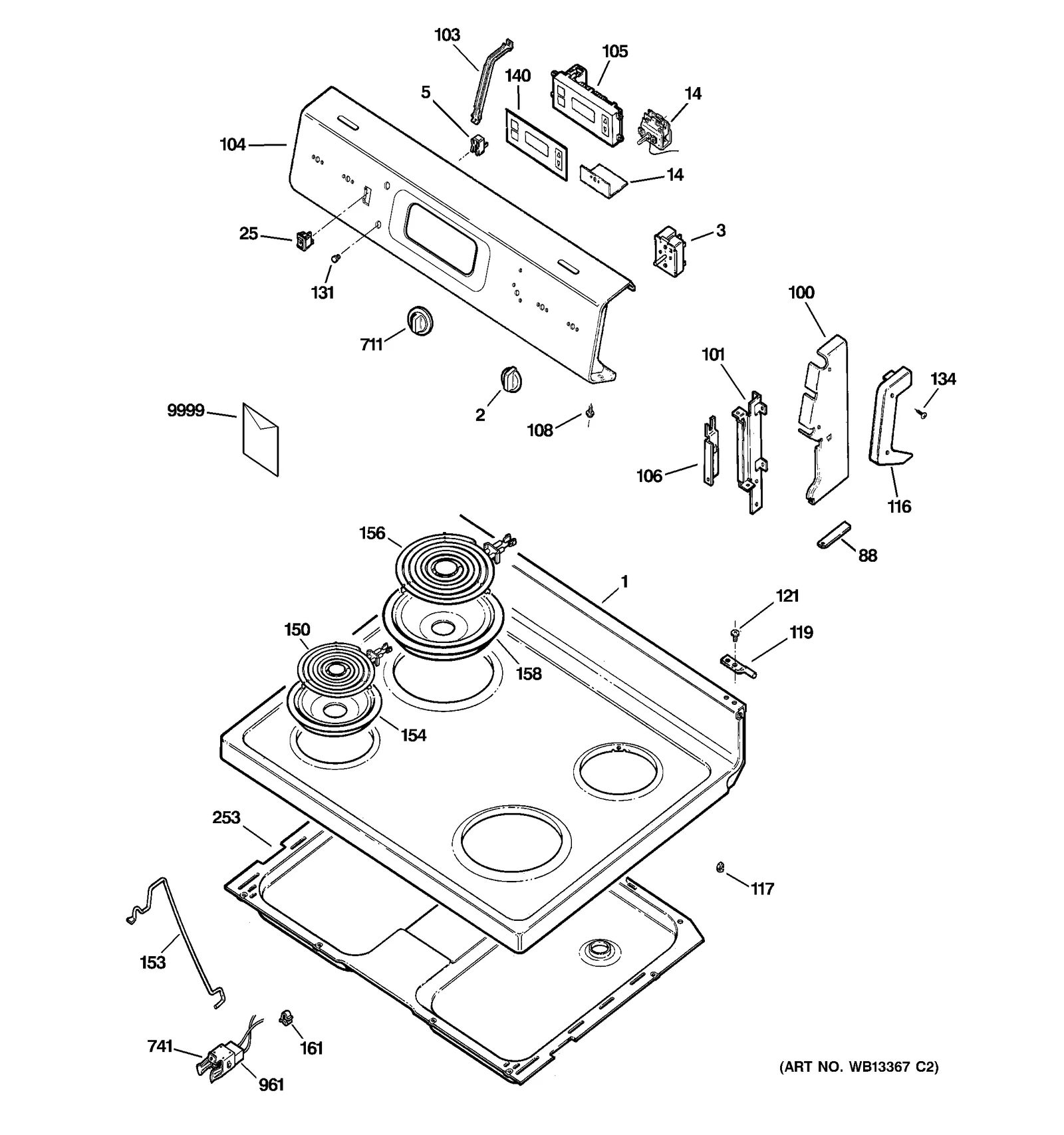

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | COOKTOP BLACK | $132.58 Parts Dr |
| 2 |  | (GE ) KNOB | $57.38 Parts Dr |
| 3 |  | INF SW CONTROL (2500W) | $28.40 Part Advantage |
| 3 |  | CONTROL INFINITE SWITCH | $30.50 Part Advantage |
| 5 |  | LAMP PILOT | $10.20 Part Advantage |
| 14 |  | CARTON COVER THERMOSTAT | $20.27 ApplianceParts Pro |
| 14 |  | WB20K10026replaces WB20K10011 THERMOSTAT TOP HEAT SP | $51.67 Part Advantage |
| 25 |  | SWITCH ROCKER (BLK) | Discontinued |
| 88 | | WB2X1222replaces WB02X1222 PAD GLASS (FELT) | - |
| 100 | | COVER END RT (BLACK) | - |
| 100 | | COVER END LT (BLACK) | - |
| 101 | | WB37K17replaces WB37K0017 PLATE END RIGHT | - |
| 101 | | WB37K18replaces WB37K0018 PLATE END LEFT | - |
| 103 | | BRACKET MTG TIMER | - |
| 104 | | TRIM & BRACKET ASM WELD | - |
| 104 | | TRIM & BRACKET ASM WELD | - |
| 105 |  | TIMER TOD LED | $83.15 Part Advantage |
| 106 | | SUPPORT HINGE CKTP RT | - |
| 106 | | SUPPORT HINGE CKTP LT | $7.50 ApplianceParts Pro |
| 108 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 108 | | WB01X5716NLA SCREW (BLK) | Discontinued |
| 116 |  | END CAP RT (BLACK) | - |
| 116 | | WB07K10004NLA END CAP LT (BLACK) | Discontinued |
| 117 | | WB2K17replaces WB02K0017 PIN LOCATOR FRONT | - |
| 119 |  | PIN HINGE | Discontinued |
| 121 |  | WB1K5119replaces WB01K0001 SCREW | $7.18 Parts Dr |
| 131 |  | WB25T10041replaces WB25K0002 LENS | $5.09 Part Advantage |
| 134 | | SCREW-MTG END CAP (BLACK | - |
| 140 | | FACEPLATE GLOSS BK | - |
| 150 |  | WB30X24401replaces WB30T10027 SURFACE UNIT ASSY 6" | $43.06 Part Advantage |
| 153 |  | ROD SUPPORT | $5.84 Part Advantage |
| 154 |  | 6 INCH CHROME BURNER BOWL - ELEC | $7.42 Part Advantage |
| 156 |  | WB30T10074replaces WB30T10033 SURFACE UNIT ASSY 8" | $49.42 Part Advantage |
| 158 |  | 8 INCH CHROME BURNER BOWL - ELEC | $9.50 Part Advantage |
| 161 | | WB02X8115NLA CLIP WIRE | Discontinued |
| 253 |  | BOX COOKTOP | $87.54 ApplianceParts Pro |
| 711 |  | ASM KNOB GE THERMOSTAT | $11.03 Part Advantage |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 961 |  | WB17T10006replaces WB17T10001 TERMINAL BLOCK | $15.34 Part Advantage |
| 9999 | – | 31-21172 PM MINI-MANUALS ELECT | - |
| 9999 | – | 49-88018 PM USE AND CARE MANUAL | - |
