Model
Hotpoint RB536S2
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB536S2Electric Range
3 diagrams106 parts

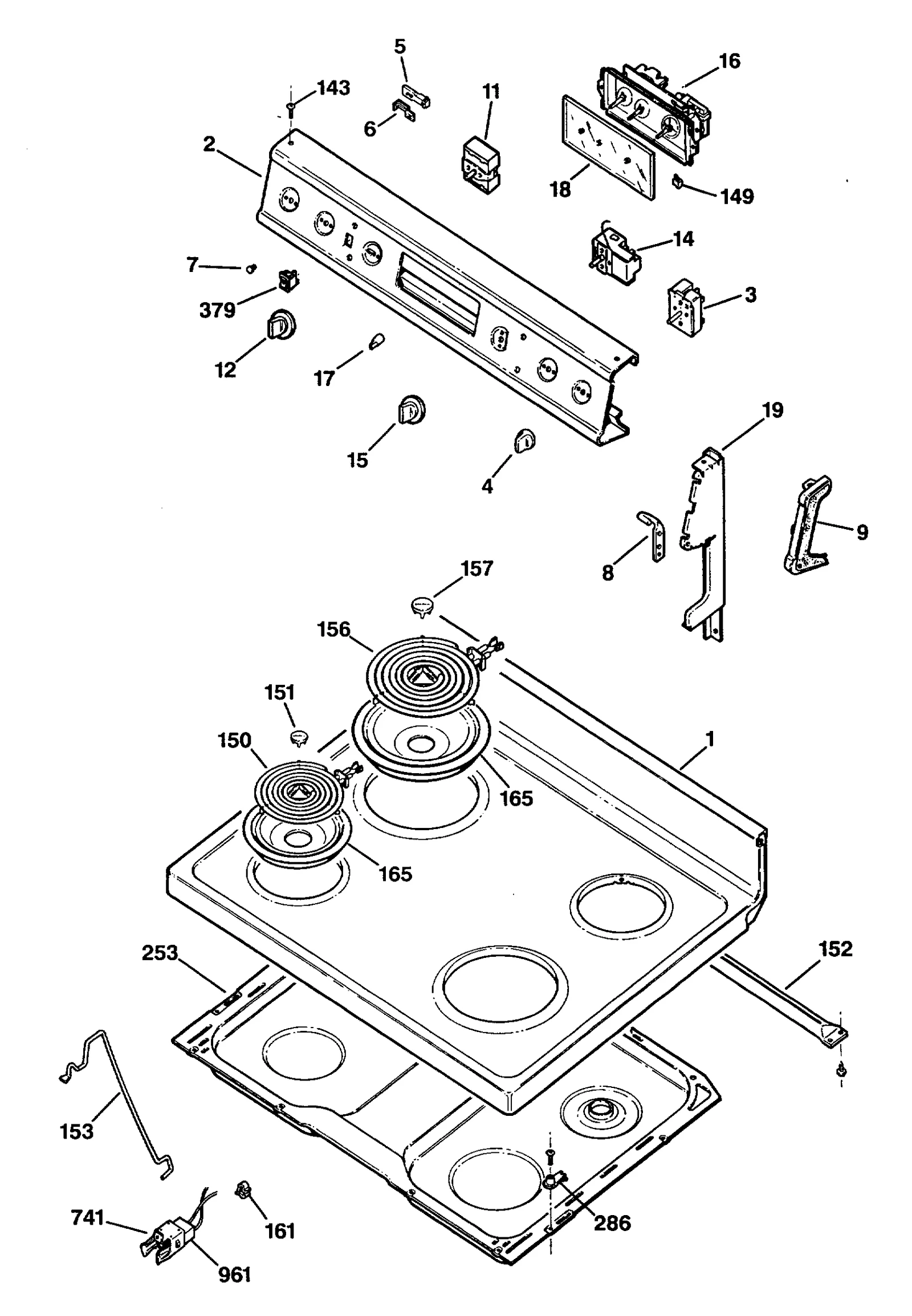

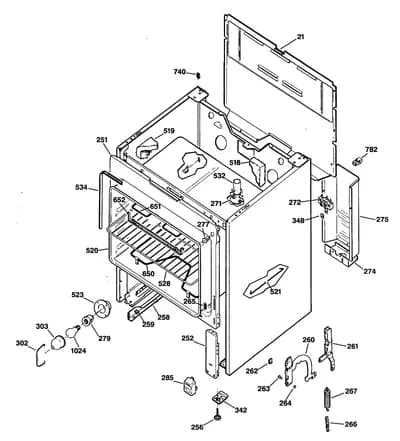

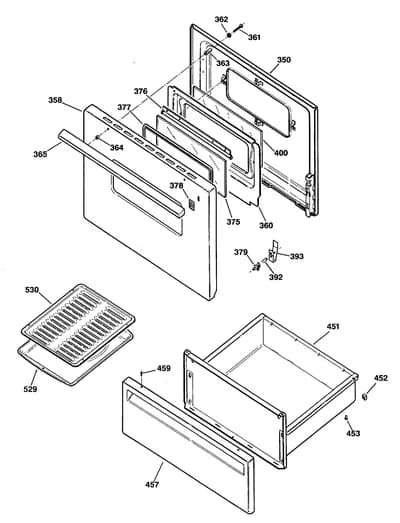

Parts Sections (3)
Diagram
Parts List
Parts in Parts List
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB62X5427 COOKTOP WH | - |
| 1 | – | WB62X5428 COOKTOP AD | - |
| 2 |  | TRIM & BRACKET ASM | - |
| 3 |  | WB21X36771replaces WB24X5333 SWITCH, INF SURFACE UNIT | $35.64 Part Advantage |
| 4 | | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X1608NLA INDICATOR LAMP | Discontinued |
| 6 | | WB21X36771replaces WB24X5334 SWITCH INFINITE CONTROL | $35.64 Part Advantage |
| 7 |  | WB25X65replaces WB25X0065 JEWEL | $19.30 RepairClinic |
| 8 | | WB2X8126replaces WB02X8126 PIN HINGE R | - |
| 8 | – | WB02X8127 PIN HINGE L | - |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 11 |  | WB22X5131NLA SWITCH, OVEN | Discontinued |
| 14 | – | WB02X6274 SLEEVE | - |
| 14 | | WB02X6494NLA BARRIER | Discontinued |
| 14 | | THERMOSTAT, OVEN L.O. | - |
| 15 | – | WB03X5824 KNOB THERMOSTAT | - |
| 16 |  | WB19X10008replaces WB19X5306 TIMER | - |
| 17 |  | WB3X5699replaces WB03X5814 KNOB, OVEN SET | $14.95 Part Advantage |
| 18 | | WB36X5574NLA CRYSTAL TIMER | Discontinued |
| 19 | | WB07X7165NLA PLATE END R | Discontinued |
| 19 | | WB07X7166NLA PLATE END | Discontinued |
| 149 | – | WB02X7702 CLIP CRYSTAL | - |
| 150 |  | WB30M1replaces WB30X5121 UNIT ASM 6" P I | $32.76 Part Advantage |
| 151 | | WB32X5089NLA TRIM CENTER | Discontinued |
| 152 |  | WB2X1351replaces WB02X1351 TERM BLOCK DOUBLE COIL | $14.95 ApplianceParts Pro |
| 152 | – | WB02X8128 BAR TORSION | - |
| 153 | | WB02X8114NLA ROD SUPPORT | Discontinued |
| 156 |  | WB30M2replaces WB30X5122 UNKNOWN | $44.65 Part Advantage |
| 161 | | WB02X8115NLA CLIP WIRE | Discontinued |
| 165 |  | WB31K10265replaces WB32X5075 BURNER BOWL 6" | $4.94 Part Advantage |
| 165 |  | WB31K10266replaces WB32X5076 BURNER BOWL 8" CHROME | $5.43 Part Advantage |
| 253 | | WB49X5566replaces WB49X5499 BOX COOKTOP | - |
| 276 | – | WB2X8105 DIVIDER WIRING | - |
| 286 | – | WB02X8107 STRIKE COOKTOP | - |
| 349 | – | WB49X5533 REFLECTOR | - |
| 379 | | SWITCH | - |
| 741 |  | WB2X8228replaces WB02X8228 CLIP RECEPTACLE | $16.69 Part Advantage |
| 752 | – | WB00X6542 340531 | - |
| 769 |  | WB1X500Dreplaces WB01X0500 SCR 8-18 B HXW 1/4 S | $7.64 RepairClinic |
| 961 | | WB02X1185NLA CLIP | Discontinued |
| 1458 | | TERMINAL BLK ASM (1 PIN) | - |
| 32767 | – | 31-0824 INSTALL INSTR (ANTI-TIP) | - |
| 32767 | – | 31-1426 PM MANUAL | - |
| 32767 |  | WB02T10415replaces WB02X7876 BRACKET ASM ANTI-TIP | - |
