Model
Hotpoint RB557GV1AD
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB557GV1ADElectric Range
3 diagrams126 parts
Parts Sections (3)

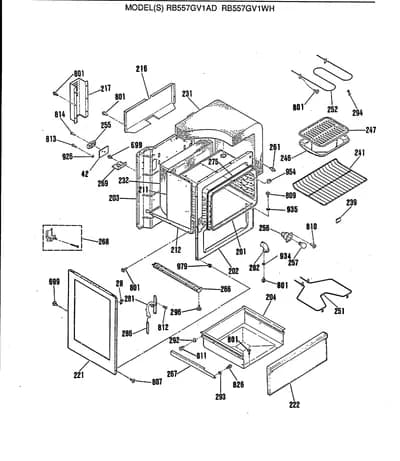

Diagram
Parts List
Parts in Parts List
53 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 28 | – | WB02K5219 CLOCK BRACKET | - |
| 28 | – | WB02K5268 MAIN TOP BRACKET | - |
| 42 |  | DISCONNECT SHIELD | - |
| 201 | | OVEN BODY | - |
| 202 | – | WB63K5163 UNKNOWN | - |
| 203 | | WB63K5187replaces WB63K5134 MAIN BACK | - |
| 204 | – | WB58X0065 STORAGE DRAWER | - |
| 211 | – | WB02M0038 INSULATION RETAINER | - |
| 212 | – | WB02K5093 INS RETAINER-LO | - |
| 216 | – | WB34M0020 WIRE COVER-UPPER | - |
| 217 | | WIRE COVER | - |
| 221 | – | WB63K5193 BODY SIDE-TEXTURED | - |
| 221 | – | WB63X0352 BODY SIDE-ALMOND-SMOOTH | - |
| 222 | | LOWER FRONT PANEL ALMOND | - |
| 231 | | INSULATION-OV BODY | - |
| 232 | | INSULATION-OV BACK | - |
| 239 | | WB2X9189replaces WB02X9189 PLUG BUTTON-RECTANGULAR | - |
| 241 | – | WB48X0208 OVEN RACK | - |
| 246 |  | WB48X10056replaces WB48M0003 BROILER PAN | $16.74 Part Advantage |
| 247 | | WB48X10056replaces WB48K5018 WB48T10001 | $16.74 Part Advantage |
| 251 |  | BAKE ELEMENT | $24.53 Part Advantage |
| 252 |  | WB44X232replaces WB44X0232 BROIL ELEMENT 240V | $66.77 Part Advantage |
| 255 |  | WB17X5095replaces WB17M0005 POWER RING HOUSING | $69.99 Parts Dr |
| 256 | | OVEN LAMP HOLDER | Discontinued |
| 257 | – | BUY LOCAL BULB OVEN LI | - |
| 261 | – | WB24K5030 JAMB SWITCH | - |
| 266 | | WB2K5271replaces WB02K5274 BASE ASM W/LEVELERS | - |
| 267 | | WB56M0003NLA DRAWER SUPPORT | Discontinued |
| 268 |  | WB2X7909replaces WB02X9400 STABILITY BRACKET KIT | $34.00 RepairClinic |
| 269 | – | WB02X9427 RANGE SERVICE MTG PLATE | - |
| 275 | | WB02X9437NLA OV DR SEAL | Discontinued |
| 281 |  | WB14X103replaces WB14X0103 HINGE ASM-LT | $46.64 Part Advantage |
| 281 |  | WB14X104replaces WB14X0104 HINGE ASM-RT | $42.20 Part Advantage |
| 282 | – | WB38M0001 VENT TUBE | - |
| 286 | – | WB09X0264 OV DR SPRING | - |
| 292 | – | WB02X9146 SLIDE BLOCK-REAR | - |
| 293 | – | WB02X9148 SLIDE BLOCK FRONT | - |
| 294 |  | WB2X9719replaces WB02X9719 BROIL ELEMENT SUPPORT | $6.89 Part Advantage |
| 296 | | WB2X9188replaces WB02X9188 LEVELER LEG | - |
| 699 |  | WB1M1replaces WB01K5150 SCREW ST10-16 X 7/16" | $7.64 RepairClinic |
| 801 | | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 807 |  | WB01X32746replaces WB01X1174 SCREW-NICKLE | $3.47 RepairClinic |
| 809 |  | WB1X1137replaces WB01X1137 SCREW | $10.95 ApplianceParts Pro |
| 810 |  | WB1X1130replaces WB01X1253 SCREW | $7.22 Parts Dr |
| 811 | – | WB01X1172 SCREW | - |
| 812 |  | WB1K5191replaces WB01X1133 SCREW | $7.95 ApplianceParts Pro |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 814 |  | WB1X1258replaces WB01X1258 SCREW | - |
| 826 | | WB01X1167NLA SCREW | Discontinued |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 935 |  | WB1K5174replaces WB01K5174 WASHER | $3.78 ApplianceParts Pro |
| 954 | | WB02X9105NLA RETAINER CLIP | Discontinued |
| 979 | – | WB01X1177 SPACER | - |
