Model
Hotpoint RB557GV2WH
Electric Range

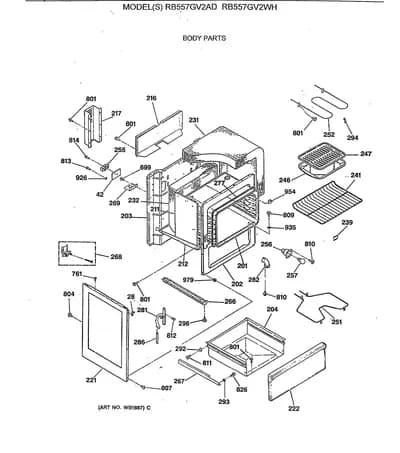

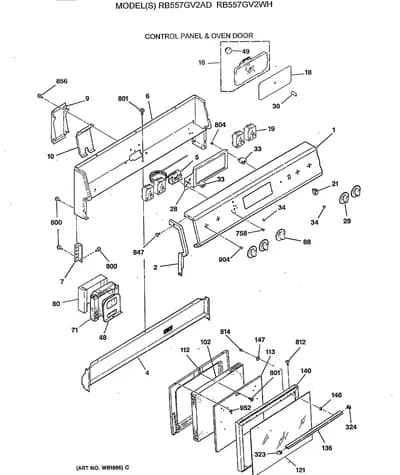

Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB557GV2WHElectric Range
3 diagrams125 parts
Parts Sections (3)
Diagram

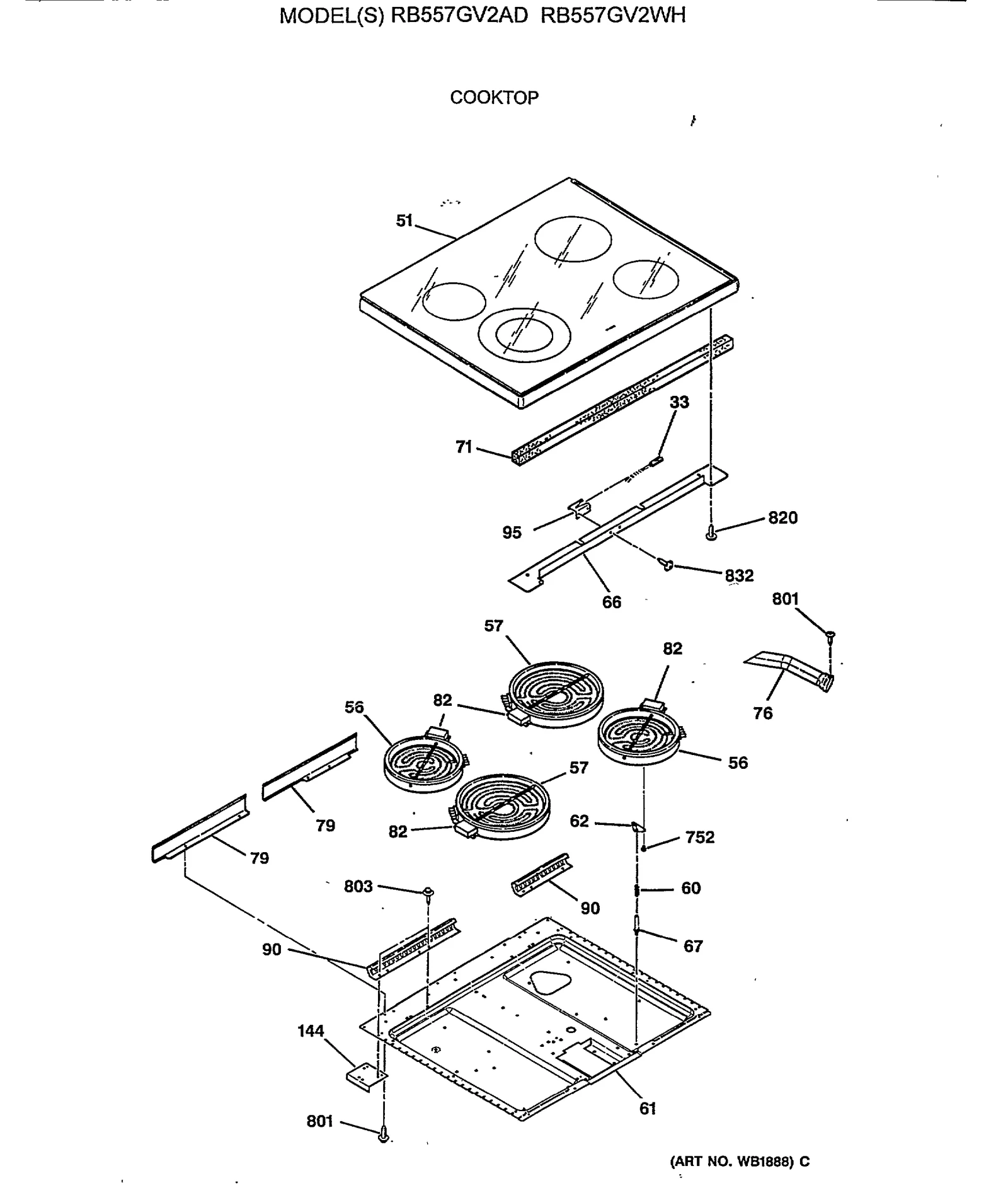

COOKTOP
Parts in COOKTOP
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 33 | – | WB25K5022 HOT LIGHT | - |
| 33 |  | WB25T10039replaces WB25X0092 INDICATOR LIGHT | $21.34 ApplianceParts Pro |
| 33 |  | WB25T10040replaces WB25X0093 IND LHT OVN HOT SURFACE | $7.39 ApplianceParts Pro |
| 51 | – | WB62K5135 UNKNOWN | - |
| 56 | – | WB23K5039 UNKNOWN | - |
| 57 |  | WB23K5040NLA UNKNOWN | Discontinued |
| 60 | | WB09K5014NLA RADIANT SPRING | Discontinued |
| 61 | – | WB64K5068 UNKNOWN | - |
| 62 |  | WB2K5318replaces WB02K5318 RADIANT HEATER BRACKET | - |
| 66 | – | WB34K5199 COVER PLATE | - |
| 67 |  | WB2X9502replaces WB02X9502 RADIANT HEATER STUD | - |
| 71 | – | WB35K5052 VENT DUCT INSULATION | - |
| 71 | | MAINTOP FRAME INSULATION | - |
| 76 | – | WB38K5050 VENT TUBE EXTENSION | - |
| 79 | – | WB34M0045 BBB BAFFLE-LT | - |
| 79 | – | WB34M0046 BAFFLE-RIGHT | - |
| 82 | | THERMAL SWITCH 1400W | - |
| 82 | | WB24K5071NLA THERMAL SWITCH 1900W | Discontinued |
| 90 | – | WB02X9876 GLASS SUPPORT-RIGHT | - |
| 90 | – | WB02X9877 GLASS SUPPORT-LEFT | - |
| 95 | – | WB02K5157 HOT LIGHT BRACKET | - |
| 144 | | WB02K5316NLA REINFORCEMENT PLATE | Discontinued |
| 752 | – | WB00X6542 340531 | - |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 803 |  | WB1K5162replaces WB01K5162 SCREW | $3.47 RepairClinic |
| 820 |  | WB1X1424Dreplaces WB01X1424 SCREW, TRANSFORMER | - |
| 832 |  | WB1X1118replaces WB01X1118 SCREW-NICKEL | $7.18 RepairClinic |
