Model
Hotpoint RB557GY2AD
Electric Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB557GY2ADElectric Range
4 diagrams121 parts

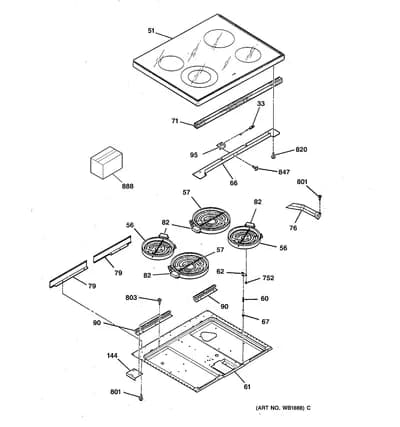

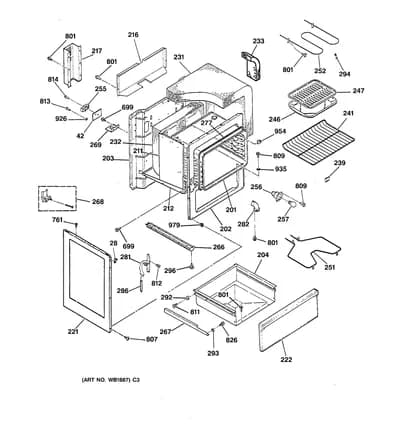

Parts Sections (4)
Diagram

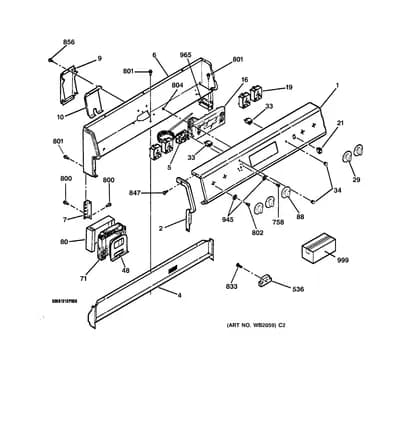

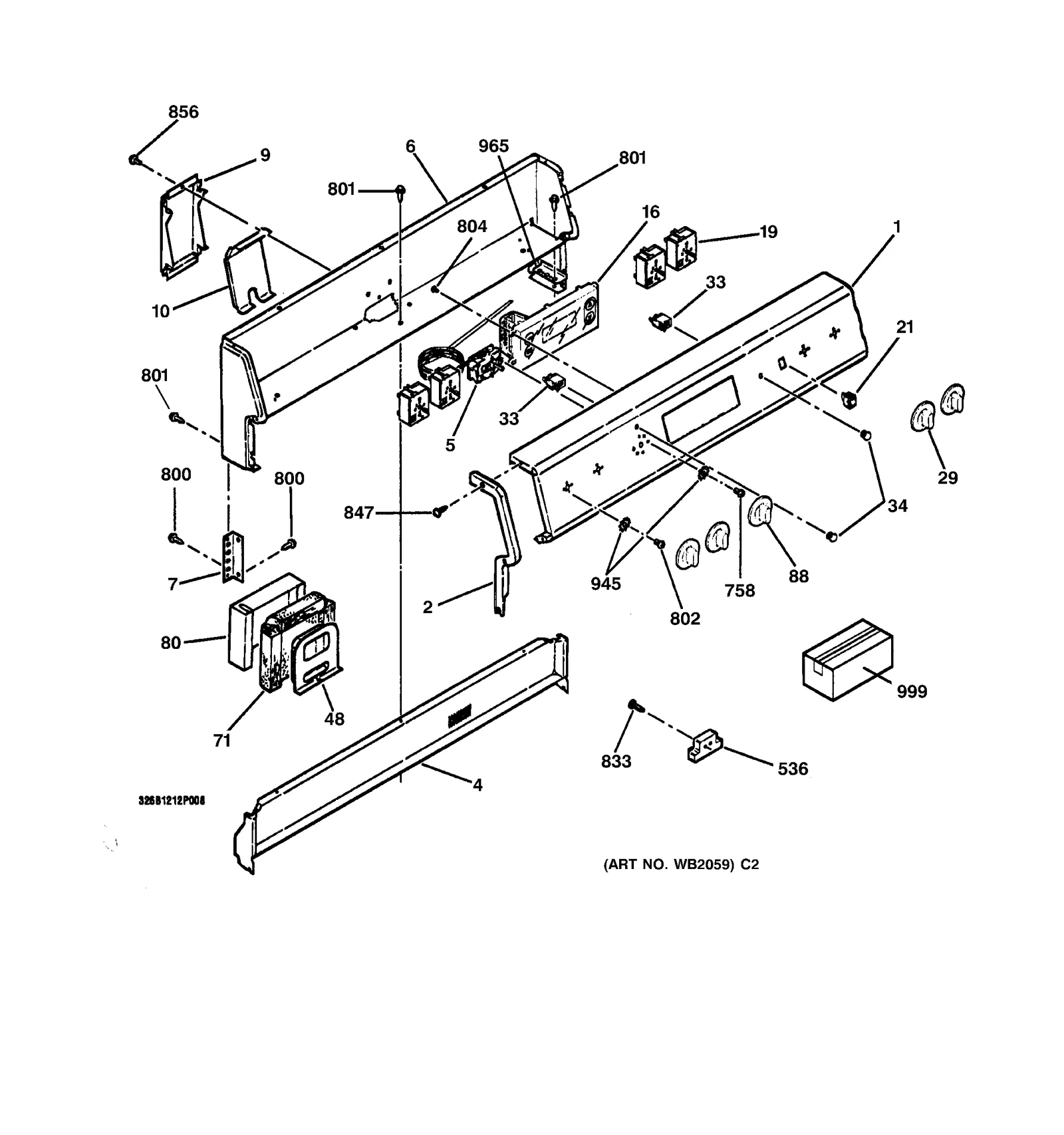

CONTROL PANEL
Parts in CONTROL PANEL
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB36T10017 CONTROL PANEL-BLK | - |
| 2 |  | WB36K5380NLA END CAP RT-BLK | Discontinued |
| 2 | | END CAP LT-BLK | - |
| 4 | – | WB37K5032 BACKGUARD PANEL FRONT | - |
| 5 |  | OVEN THERMOSTAT | $226.31 Parts Dr |
| 6 | | BACKGUARD BODY | - |
| 7 | – | WB06X0127 BACKGUARD SUPPORT-RT | - |
| 7 | – | WB06X0128 BACKGUARD SUPPORT LT | - |
| 9 | – | WB02X9415 WIRE RACEWAY | - |
| 10 | | WB06X0134NLA COVER RACEWAY | Discontinued |
| 16 | | CLOCK/OVEN CONTROL | - |
| 19 |  | WB23M23replaces WB23M0023 ELEMENT CONTROL 2000W | - |
| 19 |  | WB23M24replaces WB23M0024 ELEMENT CONTROL 1400W | $76.28 Part Advantage |
| 21 |  | ROCKER SWITCH-SUR OV | - |
| 29 | | WB03K5252NLA INFINITE KNOB-BLK | Discontinued |
| 33 | – | WB25K5022 HOT LIGHT | - |
| 33 |  | WB25T10039replaces WB25X0092 INDICATOR LIGHT | $21.34 ApplianceParts Pro |
| 33 |  | WB25T10040replaces WB25X0093 IND LHT OVN HOT SURFACE | $7.39 ApplianceParts Pro |
| 34 |  | WB25T10042replaces WB25X0094 INDICATOR LIGHT LENS | $7.94 RepairClinic |
| 48 | – | WB38K5049 VENT BOX ASM | - |
| 71 | – | WB35K5052 VENT DUCT INSULATION | - |
| 71 | | MAINTOP FRAME INSULATION | - |
| 80 | – | WB38K5033 DUCT INSULATION COVER | - |
| 88 | – | WB03K5251 THERMOSTAT KNOB-BLK | - |
| 536 | | POWER RESISTOR | - |
| 758 |  | WD2X323Dreplaces WD02X0323 SCREW 8-32 X 3/8 SPH | - |
| 800 |  | WB1M1replaces WB01K5138 SCREW | $7.64 RepairClinic |
| 801 | | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 802 | – | WB01K5123 SCREW | - |
| 804 |  | WB1X681replaces WB01X1127 SCREW | $7.95 ApplianceParts Pro |
| 833 | | WB1X1131replaces WB01X1131 SCREW | - |
| 847 |  | WB1X1118replaces WB01X1118 SCREW-NICKEL | $7.18 RepairClinic |
| 847 | | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 856 |  | WB1X1293replaces WB01X1293 SCREW TC10-32X.250HEXNI | $5.09 Part Advantage |
| 945 |  | WB1K5046replaces WB01K5046 LOCKWASHER | - |
| 965 | – | WB02X9000 BODY SIDE CLEAT | - |
| 999 | – | 31-10059 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13433 MINI MANUAL W/WIRE DIAG. | - |
| 999 | – | 39-4763 MANUAL USE AND CARE | - |
