Model
Hotpoint RB560DH1WW
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB560DH1WWElectric Range
3 diagrams100 parts

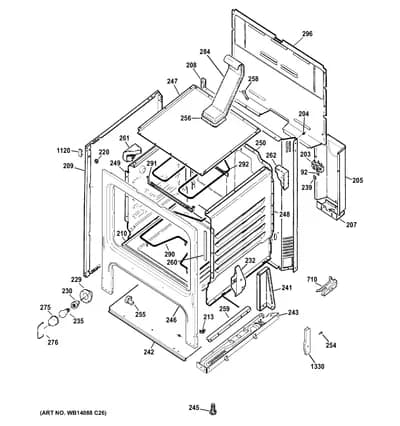

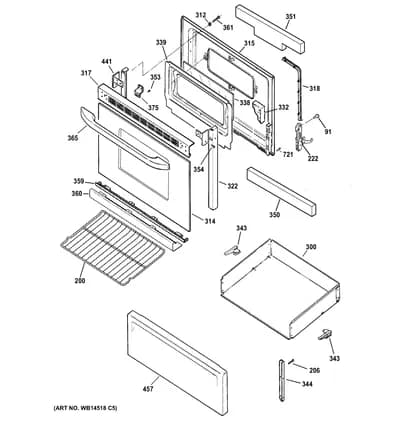

Parts Sections (3)
Diagram

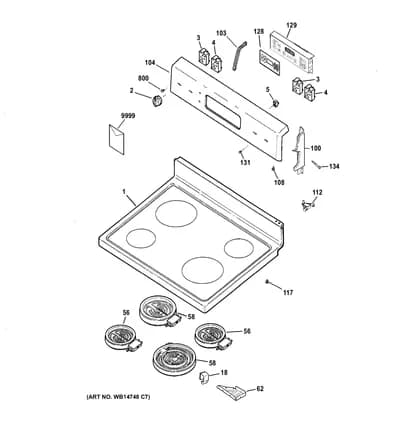

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | RANGE TOP AND GLASS ASM | $154.53 RepairClinic |
| 2 |  | KNOB INFINITE (WH) | $13.06 Part Advantage |
| 3 |  | CONTROL INFINITE SWITCH | $30.50 Part Advantage |
| 4 |  | INF SW CTN (2100W) | $83.71 Part Advantage |
| 5 |  | LAMP PILOT | $10.20 Part Advantage |
| 18 |  | RADIANT SPRING ELEMENT | $3.47 RepairClinic |
| 56 |  | WB30X38928replaces WB30K10010 HALIANT ELEMENT 6" CERSP | $145.79 PartSelect |
| 58 |  | HALIANT ELEMENT 8" | $84.41 Part Advantage |
| 62 |  | RADIANT ELEMENT BRACKET | - |
| 100 |  | END SUPPORT RIGHT | - |
| 100 |  | END SUPPORT LEFT | - |
| 103 | | BRACKET CONTROL | - |
| 104 | | TRIM CONTROL | - |
| 108 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 112 |  | HINGE RANGE TOP | - |
| 117 | | WB2K17replaces WB02K0017 PIN LOCATOR FRONT | - |
| 128 |  | OVERLAY T09 | $15.22 Part Advantage |
| 129 |  | WB27X45466replaces WB27X22663 CONTROL OVEN TO9 | $132.55 RepairClinic |
| 131 |  | WB25T10041replaces WB25K0002 LENS | $5.09 Part Advantage |
| 134 | | SCREW WH | Discontinued |
| 800 |  | WB01X23501replaces WB01T10020 SCREW 8-32 TPT FLR 215 SN | $9.71 Parts Dr |
| 9999 | – | 31-17110 PM MINI MANUAL | - |
| 9999 | – | 49-88056-1 PM OWNERS MANUAL | - |
| 9999 |  | HINGE SERVICE KIT | - |
