Model
Hotpoint RB585BB1WH
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB585BB1WHElectric Range
3 diagrams109 parts
Parts Sections (3)
Diagram

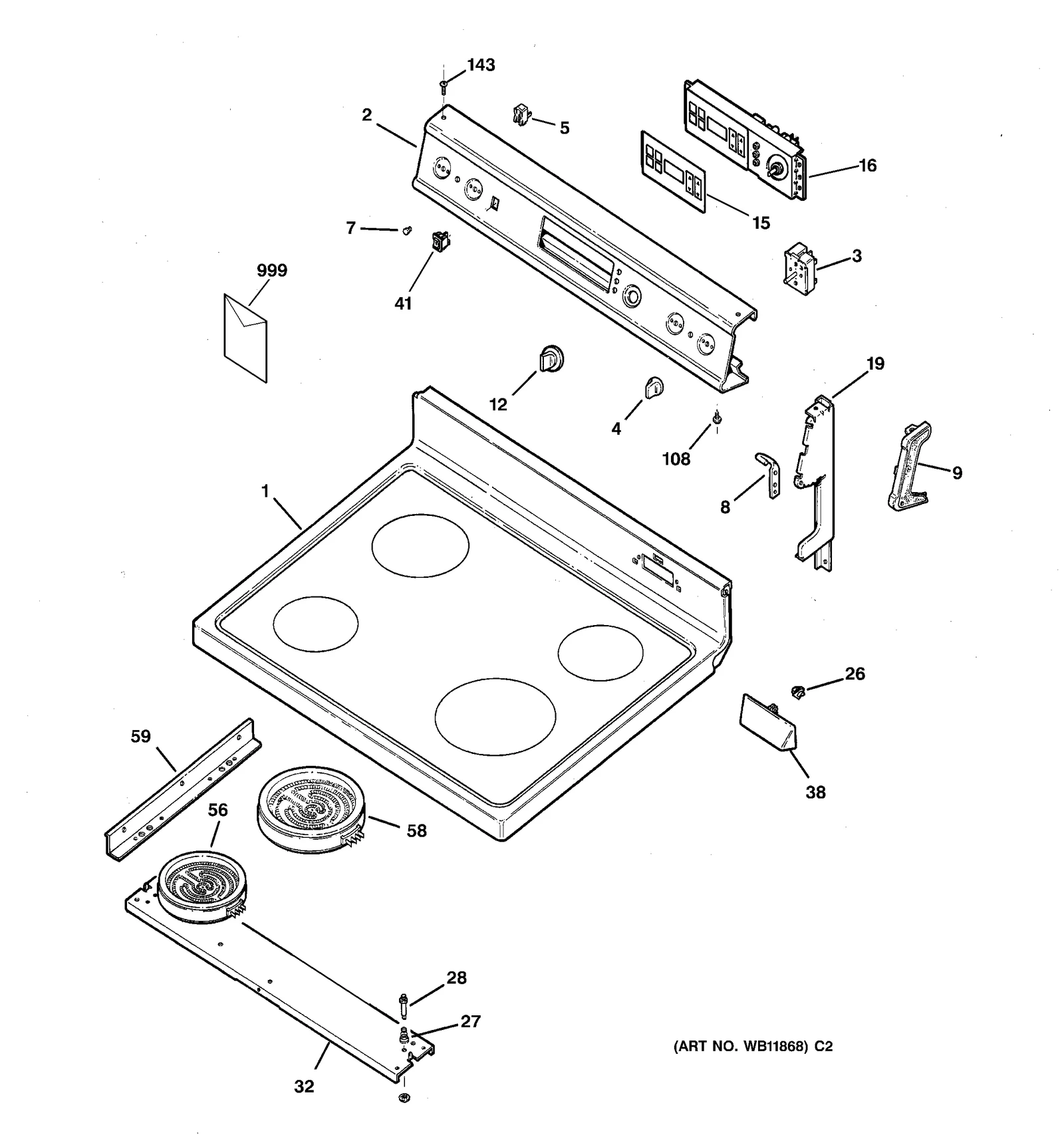

CONTROL PANEL & COOKTOP
Parts in CONTROL PANEL & COOKTOP
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WB62X10006NLA RANGETOP & GLASS ASM | Discontinued |
| 2 | – | WB36X10149 TRIM & BRACKET ASM | - |
| 3 |  | WB21X36771replaces WB23X5092 SW INF. CONTROL | $35.64 Part Advantage |
| 3 | | WB21X36771replaces WB23X5099 SW. INF. CONTROL 8" BRNR | $35.64 Part Advantage |
| 4 | | WB3X5792replaces WB03X5792 KNOB SURFACE UNIT | $26.33 Parts Dr |
| 5 | | WB02X7697NLA LAMP PILOT 125V | Discontinued |
| 7 | | INDICATOR LIGHT LENS | - |
| 8 | – | WB02X10485 PIN HINGE RH | - |
| 8 | – | WB02X10486 PIN HINGE LH | - |
| 9 | | WB7X7136replaces WB07X7136 END CAP RIGHT | - |
| 9 | | WB7X7137replaces WB07X7137 END CAP LEFT | $5.74 RepairClinic |
| 12 | | WB03X10058NLA KNOB | Discontinued |
| 15 | | FACEPLATE | - |
| 16 | – | WB02T10070 CAM DUAL | - |
| 16 | – | WB02X8268 NUT | - |
| 16 | – | WB09X5121 SPRING DETENT | - |
| 16 | – | WB27X10269 CONTROL | - |
| 19 | – | PLATE END RH BK PLATE END RH BK | - |
| 19 | | PLATE END LH BK | - |
| 26 | – | WB02X8312 CLIP VENT TRIM | - |
| 27 | | WB9X5119replaces WB09X5119 SPRING HEATER MTG | - |
| 28 | – | WB02X8377 STUD HEATER MOUNT | - |
| 32 | – | WB02X8556 SUPPORT RADIANT HEATER | - |
| 38 | | WB07X7219NLA VENT TRIM CLIP ASM WH | Discontinued |
| 41 | | SWITCH | - |
| 56 |  | WB30X44826replaces WB30T10047 ELEMENT HALIANT 6" | $125.97 Parts Dr |
| 58 |  | HALIANT ELEMENT 8" | $84.41 Part Advantage |
| 59 | – | WB02X8321 BRACE BODY | - |
| 108 |  | WB1X5904replaces WB01X5904 SCR 8-18 BA POR 3/4 SN | $3.36 RepairClinic |
| 143 | | WB01X5860NLA SCREW | Discontinued |
| 999 | – | 31-20758 PM MANUAL MINI | - |
| 999 | – | 49-8939 PM INSTRUCTION INSTALL | - |
| 999 | – | 49-8962 PM MANUAL USE & CARE | - |
| 999 |  | PM10X310replaces WB64X0093 GLASS CLEANER | $8.92 Part Advantage |
