Model
Hotpoint RB585BC1AD
Electric Range
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
RB585BC1ADElectric Range
3 diagrams124 parts
Parts Sections (3)
Diagram

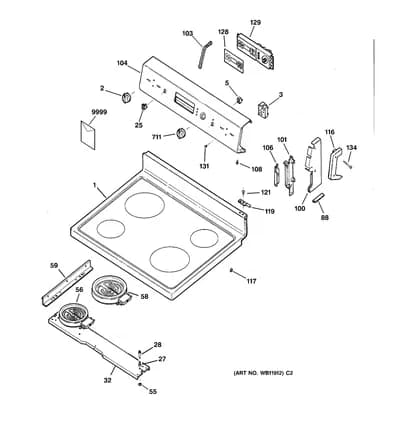

CONTROLS & COOKTOP
Parts in CONTROLS & COOKTOP
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | COOKTOP & GLASS ASM | - |
| 2 | | WB03K10084NLA INF KNOB (BLK) | Discontinued |
| 3 |  | INF SW CTN (2100W) | $83.71 Part Advantage |
| 3 |  | CONTROL INFINITE SWITCH | $30.50 Part Advantage |
| 5 |  | LAMP PILOT | $10.20 Part Advantage |
| 25 | | WB24K10011NLA ROCKER LIGHT SWITCH (BK) | Discontinued |
| 27 | | WB9X5119replaces WB09X5119 SPRING HEATER MTG | - |
| 28 | – | WB02X8377 STUD HEATER MOUNT | - |
| 32 |  | SUPPORT BOTTOM HEATER | - |
| 55 | | WB02X8323NLA CLIP PUSHON | Discontinued |
| 56 |  | WB30X44826replaces WB30T10047 ELEMENT HALIANT 6" | $125.97 Parts Dr |
| 58 |  | HALIANT ELEMENT 8" | $84.41 Part Advantage |
| 59 | | BRACE SIDE HEATER | - |
| 88 | | WB2K85replaces WB02K0085 PAD FELT (WH) | - |
| 100 | | COVER END RT (BLACK) | - |
| 100 | | COVER END LT (BLACK) | - |
| 101 | | WB37K17replaces WB37K0017 PLATE END RIGHT | - |
| 101 | | WB37K18replaces WB37K0018 PLATE END LEFT | - |
| 103 | | BRACKET MTG TIMER | - |
| 104 | – | WB36K10232 TRIM CONTROL (BLK) | - |
| 106 | | SUPPORT HINGE CKTP RT | - |
| 106 | | SUPPORT HINGE CKTP LT | $7.50 ApplianceParts Pro |
| 108 |  | WB01X23501replaces WB01T10020 SCREW 8-32 TPT FLR 215 SN | $9.71 Parts Dr |
| 108 |  | WB1X5364replaces WB01X5364 SCREW (CR) | $5.09 Part Advantage |
| 108 | | WB01X5716NLA SCREW (BLK) | Discontinued |
| 116 |  | END CAP RT (BLACK) | - |
| 116 | | WB07K10004NLA END CAP LT (BLACK) | Discontinued |
| 117 | | WB2K17replaces WB02K0017 PIN LOCATOR FRONT | - |
| 119 |  | PIN HINGE | Discontinued |
| 121 |  | WB1K5119replaces WB01K0001 SCREW | $7.18 Parts Dr |
| 128 | | OVERLAY (BLK) | - |
| 129 | | CONTROL TO8(NO OVERLAY) | - |
| 131 |  | WB25T10041replaces WB25K0002 LENS | $5.09 Part Advantage |
| 134 | | SCREW-MTG END CAP (BLACK | - |
| 711 | | CONTROL KNOB (BLK) | - |
| 9999 | – | 31-21000 MANUAL-MINI ELEC. DIAG. | - |
| 9999 | – | 41-80029 MANUAL-USE & CARE | - |
| 9999 | – | 49-8966 INSTALLATION INSTRUCTION | - |
| 9999 |  | PM10X310replaces WB64X0093 GLASS CLEANER | $8.92 Part Advantage |
