Model
GE SBSD107H5WW
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SBSD107H5WWWasher
1 diagram15 parts
Parts Sections (1)
Diagram

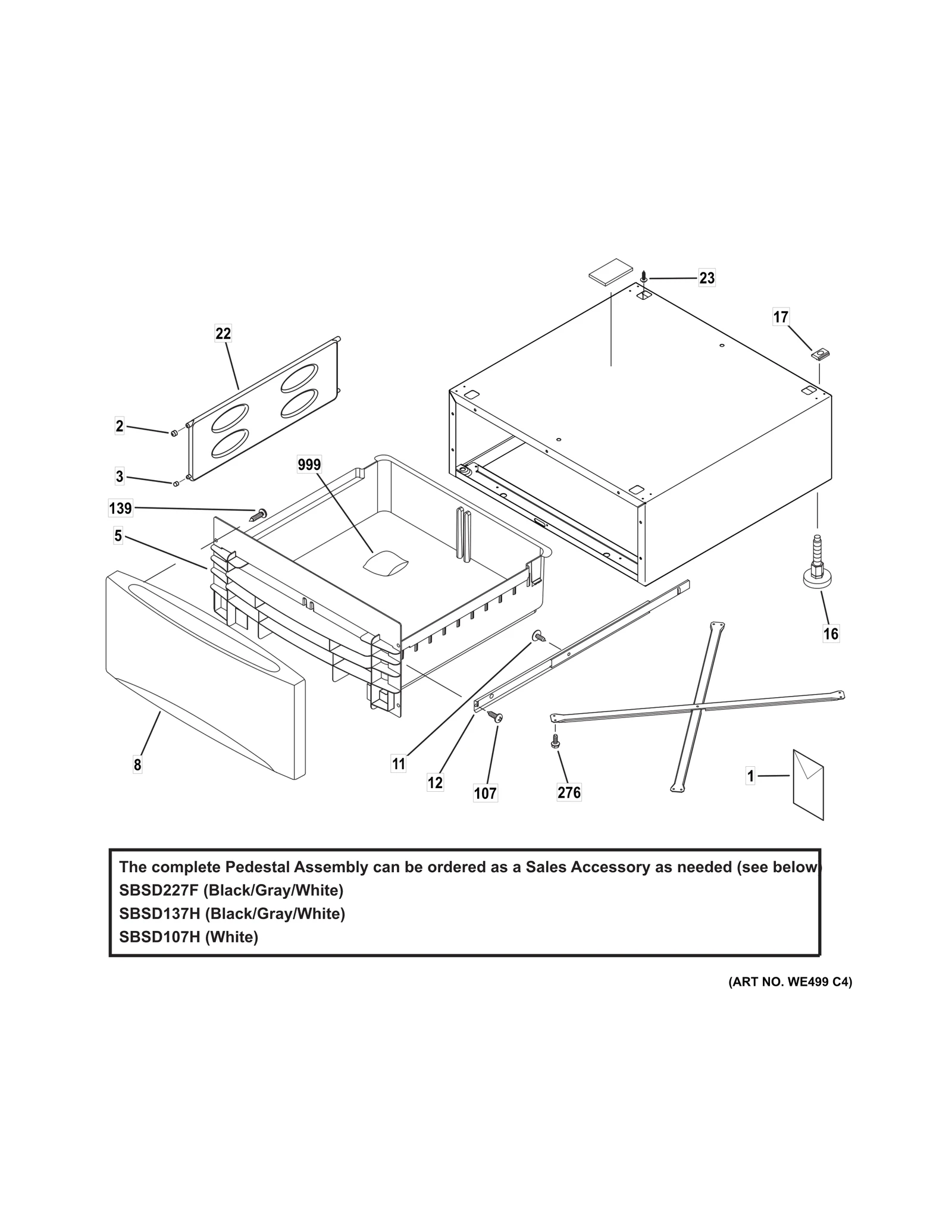

PEDESTAL
Parts in PEDESTAL
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 49-90321 PM INSTALL INSTRUCTIONS | - |
| 2 | – | WH01X10350 DIVIDER CAP END BIG | - |
| 3 |  | WH01X10282replaces WH01X10351 DIVIDER CAP END SMALL | - |
| 5 | – | WH44X10189 DRAWER PEDESTAL 10" | - |
| 8 | – | WH46X10173 PANEL FRONT PEDESTAL 10" | - |
| 11 |  | WH01X10423replaces WH01X10170 SCR 6-20 B TRT 3/8 S | $3.47 RepairClinic |
| 12 |  | SLIDE ASM | $9.21 Part Advantage |
| 16 | | LEG LEVELING ASM | Discontinued |
| 17 |  | RUBBER PAD | - |
| 22 |  | WH16X10120replaces WH16X10098 DIVIDER PEDESTAL | - |
| 23 |  | WH02X10232replaces WH02X10259 SCR 8-32 X 865 M HXW S | - |
| 107 |  | SCREW_ST4*13 | - |
| 139 |  | SCREW 8-18 HI/LO 5/8 | $7.95 ApplianceParts Pro |
| 276 |  | WH2X1217replaces WH02X1217 SCR 8-18 AB IHW 7/16 SN | $5.09 Part Advantage |
| 999 |  | PK HARDWARE BAG ASM | - |
