Model
GE SBSD137H5GG
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SBSD137H5GGWasher
1 diagram13 parts
Parts Sections (1)
Diagram

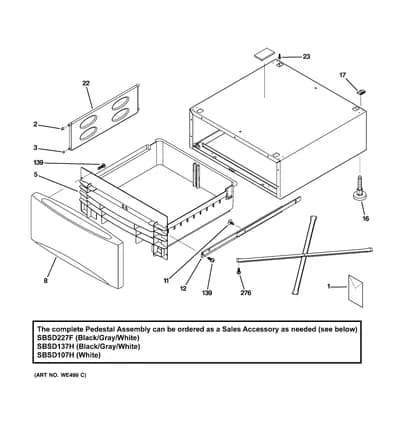

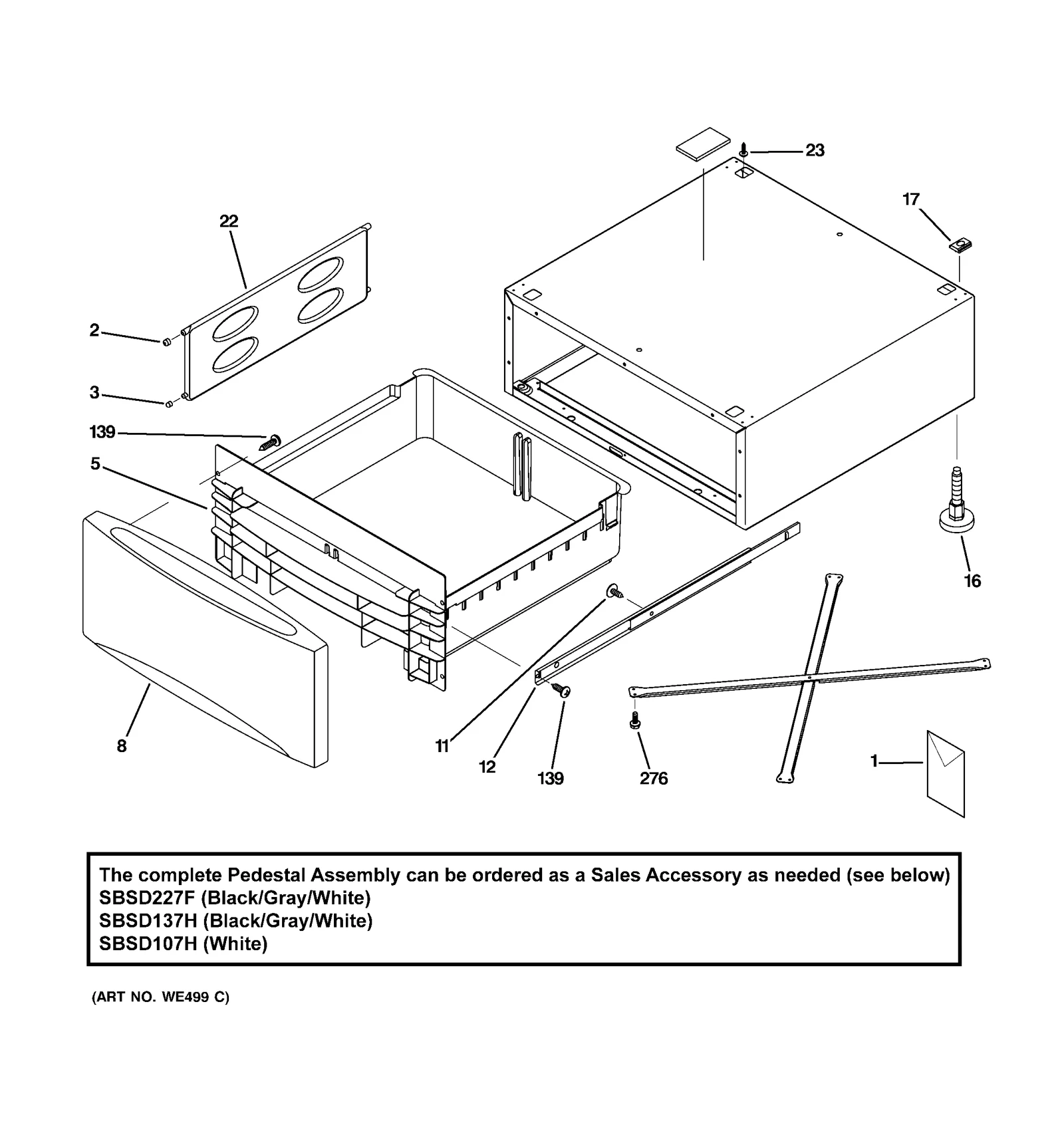

PEDESTAL
Parts in PEDESTAL
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-16540 INSTALLATION INSTRUCTION | - |
| 2 | – | WH01X10350 DIVIDER CAP END BIG | - |
| 3 |  | WH01X10282replaces WH01X10351 DIVIDER CAP END SMALL | - |
| 5 | | DRAWER PEDESTAL | - |
| 8 | – | WH46X10174 PANEL FRNT PEDESTAL GG | - |
| 11 |  | WH01X10423replaces WH01X10170 SCR 6-20 B TRT 3/8 S | $3.47 RepairClinic |
| 12 |  | SLIDE ASM | $9.21 Part Advantage |
| 16 | | LEG LEVELING ASM | Discontinued |
| 17 | – | WH08X10035 RUBBER PAD | - |
| 22 |  | WH16X10120replaces WH16X10098 DIVIDER PEDESTAL | - |
| 23 |  | WH02X10232replaces WH02X10259 SCR 8-32 X 865 M HXW S | - |
| 139 |  | SCREW 8-18 HI/LO 5/8 | $7.95 ApplianceParts Pro |
| 276 |  | WH2X1217replaces WH02X1217 SCR 8-18 AB IHW 7/16 SN | $5.09 Part Advantage |
