Model
GE SBSD137J0MV
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SBSD137J0MVWasher
1 diagram15 parts
Parts Sections (1)

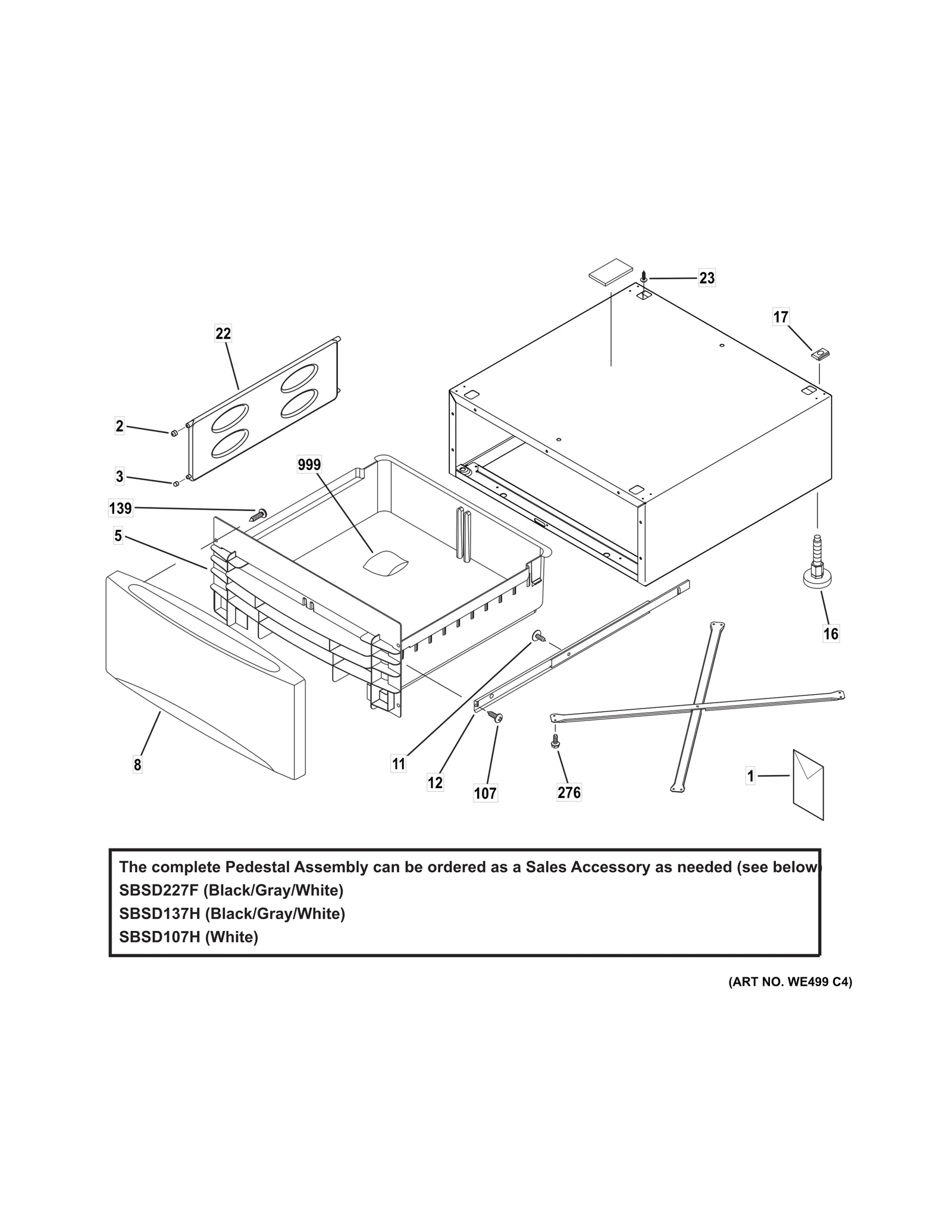

Diagram
PEDESTAL
Parts in PEDESTAL
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 49-90321 PM INSTALL INSTRUCTIONS | - |
| 2 |  | CAP RUBBER LARGE | - |
| 3 | | WH01X10282replaces WH01X10348 CAP RUBBER SMALL | - |
| 5 | | DRAWER PEDESTAL | - |
| 8 | | PANEL FRONT PEDESTAL MV | - |
| 11 |  | WH01X10423replaces WH01X10170 SCR 6-20 B TRT 3/8 S | $3.47 RepairClinic |
| 12 |  | SLIDE ASM | $9.21 Part Advantage |
| 16 | | LEG LEVELING ASM | Discontinued |
| 17 |  | RUBBER PAD | - |
| 22 |  | DIVIDER PEDESTAL | - |
| 23 |  | WH02X10232replaces WH02X10259 SCR 8-32 X 865 M HXW S | - |
| 107 | | SCREW 8-15 A 3/4 SP HXW | $5.26 Parts Dr |
| 139 |  | SCREW 8-18 HI/LO 5/8 | $7.95 ApplianceParts Pro |
| 276 |  | WH2X1217replaces WH02X1217 SCR 8-18 AB IHW 7/16 SN | $5.09 Part Advantage |
| 999 |  | PK HARDWARE BAG ASM | - |
