Model
GE SBSD157J0MV
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SBSD157J0MVWasher
1 diagram22 parts
Parts Sections (1)
Diagram

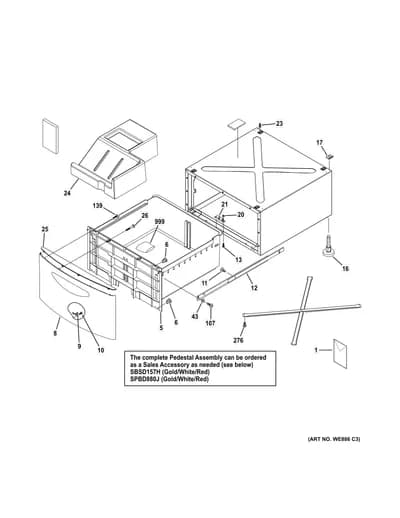

PEDESTAL
Parts in PEDESTAL
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 49-90321 PM INSTALL INSTRUCTIONS | - |
| 5 |  | DRAWER PEDESTAL | - |
| 6 | | BUMPER PAD | - |
| 8 | | PANEL FRONT PEDESTAL MV | - |
| 9 | | PEDESTAL_PLUNGER | - |
| 10 | | SCREW_ST4*10 | - |
| 11 | | SCREW ST3.5*11 | - |
| 12 | | SLIDE ASSEMBLY | - |
| 13 |  | SCREW_M3*10 | - |
| 16 | | WH01X10286NLA PEDESTAL LEG ASM | Discontinued |
| 17 |  | RUBBER PAD | - |
| 20 | | HEX_NUT M3 | $7.78 ApplianceParts Pro |
| 21 |  | WH01X22934replaces WH01X10288 LATCH | - |
| 23 |  | SCREW_ST5.5*22 | - |
| 24 | – | WH01X10369 ORGANIZER | - |
| 25 | – | WH44X10200 PANEL FRONT TOP COVER MV | - |
| 26 | | SCREW ST 4 X 37 | - |
| 43 | – | WH02X10277 WASHER | - |
| 107 |  | SCREW_ST4*13 | - |
| 139 | – | WH02X10186 SCREW ST 4*20 | - |
| 276 | | SCREW ST4.2*11 | - |
| 999 |  | PK HARDWARE BAG ASM | - |
