Model
GE SBSD227FGG
Washer
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SBSD227FGGWasher
1 diagram21 parts
Parts Sections (1)
Diagram

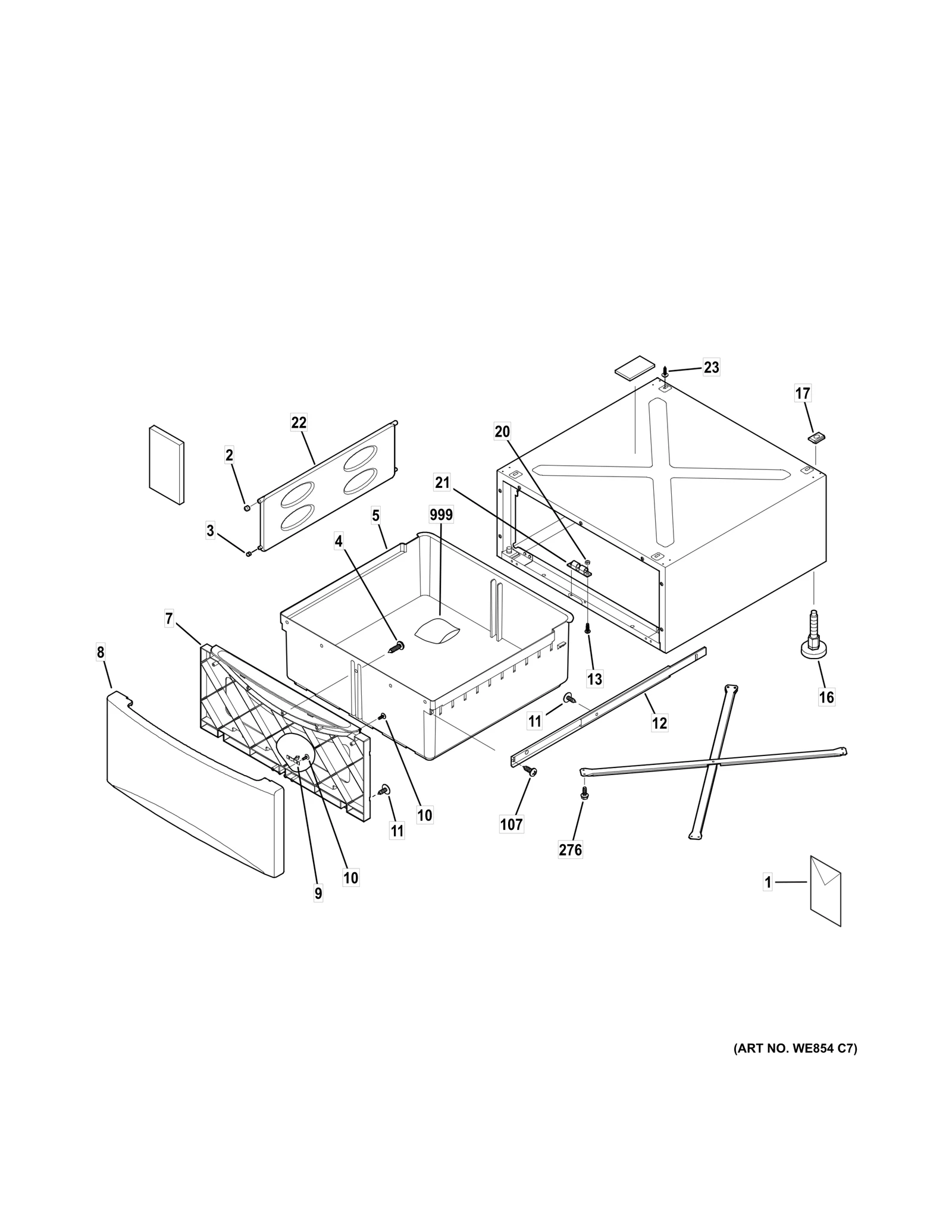

PEDESTAL
Parts in PEDESTAL
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 49-90321 PM INSTALL INSTRUCTIONS | - |
| 2 |  | CAP RUBBER LARGE | $3.95 ApplianceParts Pro |
| 3 | | CAP RUBBER SMALL | - |
| 4 |  | SCREW ST4*16 | $3.47 RepairClinic |
| 5 | | DRAWER PEDESTAL | - |
| 7 | – | WH01X10289 HANDLE PEDESTAL GG | - |
| 8 | – | WH46X10136 PANEL FRONT GG | - |
| 9 | | PEDESTAL_PLUNGER | - |
| 10 | | SCREW_ST4*10 | - |
| 11 | | SCREW ST3.5*11 | - |
| 12 | | SLIDE ASSEMBLY | - |
| 13 |  | SCREW_M3*10 | - |
| 16 | | WH01X10286NLA PEDESTAL LEG ASM | Discontinued |
| 17 |  | RUBBER PAD | - |
| 20 | | HEX_NUT M3 | $7.78 ApplianceParts Pro |
| 21 |  | WH01X22934replaces WH01X10288 LATCH | - |
| 22 | | DIVIDER | - |
| 23 |  | SCREW_ST5.5*22 | - |
| 107 |  | SCREW_ST4*13 | - |
| 276 | | SCREW ST4.2*11 | - |
| 999 |  | PK HARDWARE BAG ASM | - |
