Model
GE SCB1000KCC01
Microwave Or Advantium
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SCB1000KCC01Microwave Or Advantium
5 diagrams115 parts
Parts Sections (5)
Diagram

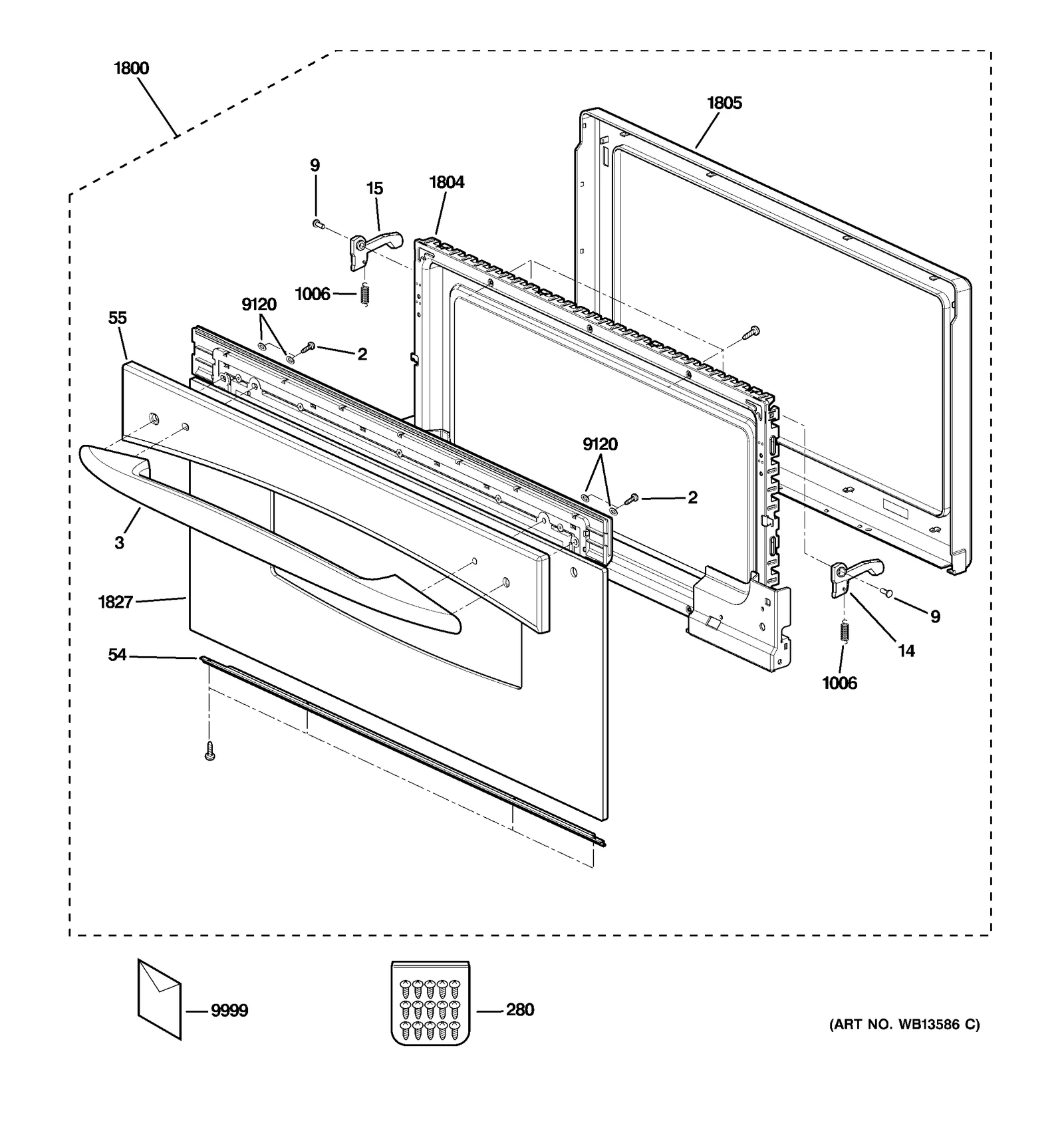

DOOR PARTS
Parts in DOOR PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | SCREW,HILO,8/7" | $3.95 ApplianceParts Pro |
| 3 | – | WB15X10186 HANDLE ASM BQ | - |
| 9 |  | PIN HINGE | - |
| 14 | | LATCH RT | - |
| 15 | | LATCH LT | - |
| 54 | – | WB06X10653 MOUNT | - |
| 55 | – | WB07X10923 DECO DOOR | - |
| 280 |  | WB01X32574replaces WB01X10304 ADV HARDWARE ASM BAG | $36.95 ApplianceParts Pro |
| 1006 |  | SPRING | $13.35 Parts Dr |
| 1800 | – | WB55X10787 DOOR ASM BQ | - |
| 1804 |  | WB56X35245replaces WB55X10782 DOOR FRAME ASM | $144.45 PartSelect |
| 1805 | | CHOKE COVER | - |
| 1827 | – | WB36X10312 GLASS ASM | - |
| 9120 | | WB1X1521replaces WB01X1521 WASHER- PLAIN | $7.26 ApplianceParts Pro |
| 9999 | – | 31-40417 MINI MANUAL | - |
| 9999 | – | 49-40456 COOKING GUIDE | - |
| 9999 | – | 49-40457 OWNER MANUAL | - |
| 9999 | – | 49-40459 INSTALLATION INSTRUCTION | - |
| 9999 |  | DOOR REMOVAL TOOL | - |
