Model
GE SCB1000MBB001
Microwave Or Advantium
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SCB1000MBB001Microwave Or Advantium
5 diagrams117 parts
Parts Sections (5)
Diagram

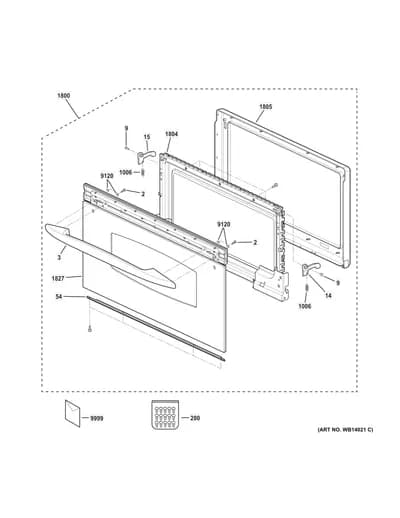

DOOR PARTS
Parts in DOOR PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | SCREW, HILO, 8/5" | - |
| 3 | | WB15X10184NLA HANDLE ASM BK | Discontinued |
| 9 |  | PIN HINGE | - |
| 14 | | LATCH RT | - |
| 15 | | LATCH LT | - |
| 54 | | MOUNT | - |
| 280 |  | WB01X32574replaces WB01X10304 ADV HARDWARE ASM BAG | $36.95 ApplianceParts Pro |
| 1006 |  | SPRING | $13.35 Parts Dr |
| 1800 | | DOOR ASM BK | - |
| 1804 |  | WB56X35245replaces WB55X10782 DOOR FRAME ASM | $144.45 PartSelect |
| 1805 | | CHOKE COVER | - |
| 1827 | | GLASS ASM | - |
| 9120 | | WB1X1521replaces WB01X1521 WASHER- PLAIN | $7.26 ApplianceParts Pro |
| 9999 |  | DOOR REMOVAL TOOL | - |
| 9999 | – | 49-40555 USE & CARE | - |
| 9999 | – | 49-40556 INSTALLATION INSTRUCTION | - |
| 9999 | – | 49-40185 DVD/VHS | - |
| 9999 | – | 31-40461-1 MINI - MANUAL | - |
