Model
GE SCB1001KSS02
Microwave Or Advantium
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SCB1001KSS02Microwave Or Advantium
5 diagrams113 parts
Parts Sections (5)

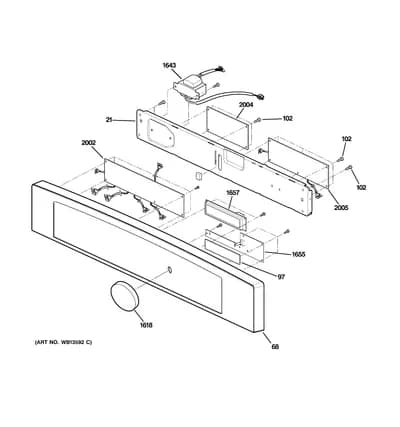

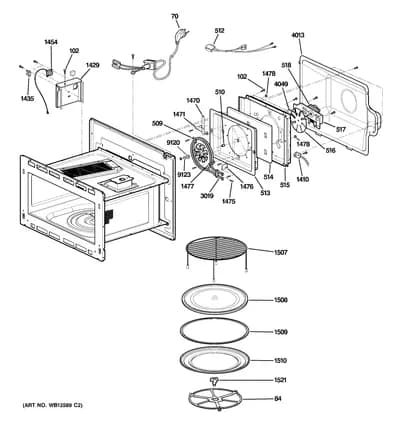

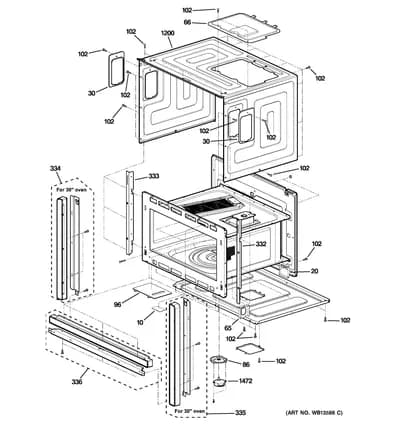

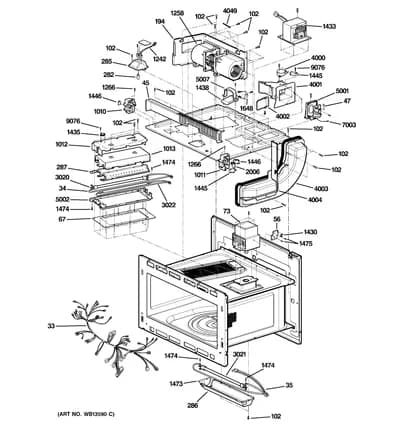

Diagram

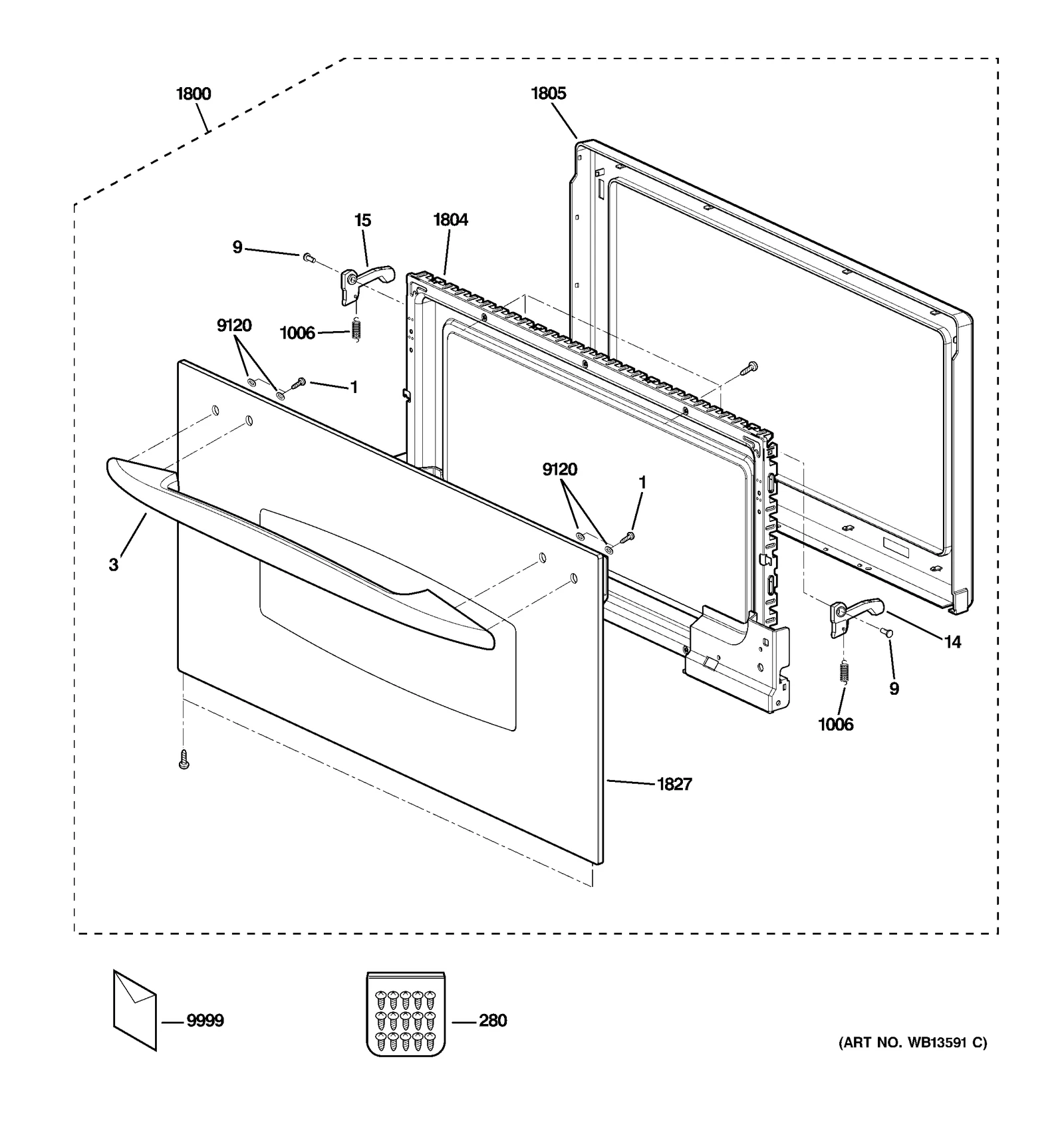

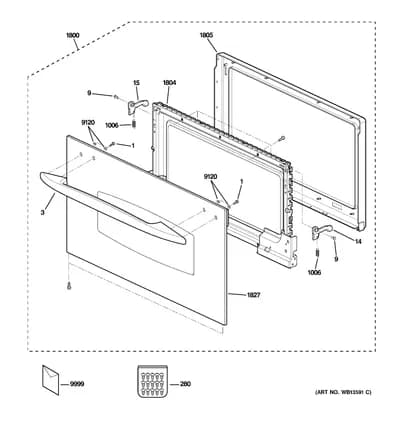

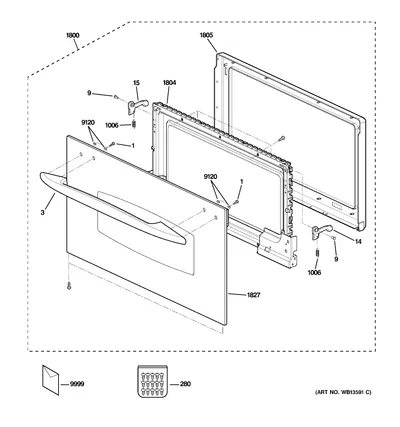

DOOR PARTS
Parts in DOOR PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SCREW, UNF, 8/5 | - |
| 3 | – | WB15X10187 HANDLE ASM SS | - |
| 9 |  | PIN HINGE | - |
| 14 | | LATCH RT | - |
| 15 | | LATCH LT | - |
| 280 |  | WB01X32574replaces WB01X10304 ADV HARDWARE ASM BAG | $36.95 ApplianceParts Pro |
| 1006 |  | SPRING | $13.35 Parts Dr |
| 1800 | – | WB55X10788 DOOR ASM SS | - |
| 1804 |  | WB56X35245replaces WB55X10782 DOOR FRAME ASM | $144.45 PartSelect |
| 1805 | | CHOKE COVER | - |
| 1827 | – | WB36X10313 GLASS ASM | - |
| 9120 | | WB1X1521replaces WB01X1521 WASHER- PLAIN | $7.26 ApplianceParts Pro |
| 9999 | – | 31-40417 MINI MANUAL | - |
| 9999 | – | 49-40456 COOKING GUIDE | - |
| 9999 | – | 49-40457 OWNER MANUAL | - |
| 9999 | – | 49-40459 INSTALLATION INSTRUCTION | - |
