Model
GE SCB2000CAA03
Microwave Or Advantium
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SCB2000CAA03Microwave Or Advantium
6 diagrams89 parts
Parts Sections (6)
Diagram

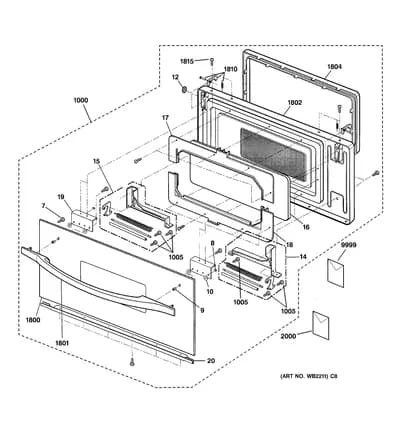

DOOR PARTS
Parts in DOOR PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 7 | – | WB02X10881 SCREW, HANDLE | - |
| 8 | – | WB01X10106 RING STOP - "C" CLIP | - |
| 9 | – | WB01X10105 CUSHION - TEFLON | - |
| 10 |  | WASHER - TEFLON | - |
| 12 | | PIN - PROTECTOR | - |
| 14 | | HINGE ASS'Y - RIGHT | - |
| 15 | | HINGE ASS'Y - LEFT | - |
| 16 | | DOOR MIDDLE GLASS | - |
| 17 | | GLASS HOLDER - UPPER | - |
| 18 | | GLASS HOLDER - LOWER | - |
| 19 | – | WB02X10673 DOOR HANDLE MNTG BRACE | - |
| 20 | – | WB02X10687 DOOR GLASS MOUNT - AD | - |
| 1000 | – | WB56X10372 DOOR ASM ALMOND | - |
| 1005 | – | WB01X10156 SCREW - HINGE | - |
| 1800 | | GLASS DOOR OUTER - AD | - |
| 1801 | – | WB15X10060 HANDLE ASS'Y - AD | - |
| 1802 | | DOOR FRAME GLASS ASM | - |
| 1804 | | CHOKE COVER | - |
| 1810 | | DOOR LATCH ASM | - |
| 1815 | | SCREW DOOR FROM TOP | - |
| 2000 | – | WB01X10174 SCREW 5-PK INSTL | - |
| 9999 | – | 28-X060 USE & CARE VIDEO | - |
| 9999 | – | 31-20939 MINI-MANUAL | - |
| 9999 | – | 49-40102 USE & CARE MANUAL | - |
| 9999 | – | 49-40103 INSTALLATION INSTRUCTION | - |
| 9999 | – | 49-40104 COOKBOOK | - |
