Model
GE SCB2000FBB02
Microwave Or Advantium
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SCB2000FBB02Microwave Or Advantium
6 diagrams85 parts
Parts Sections (6)
Diagram

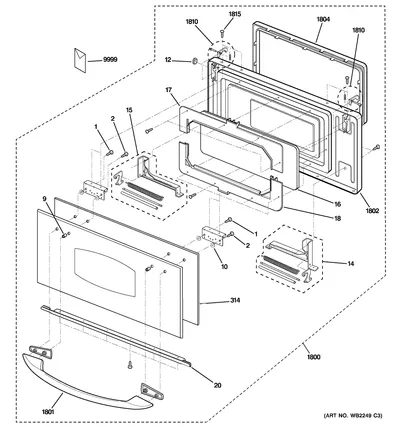

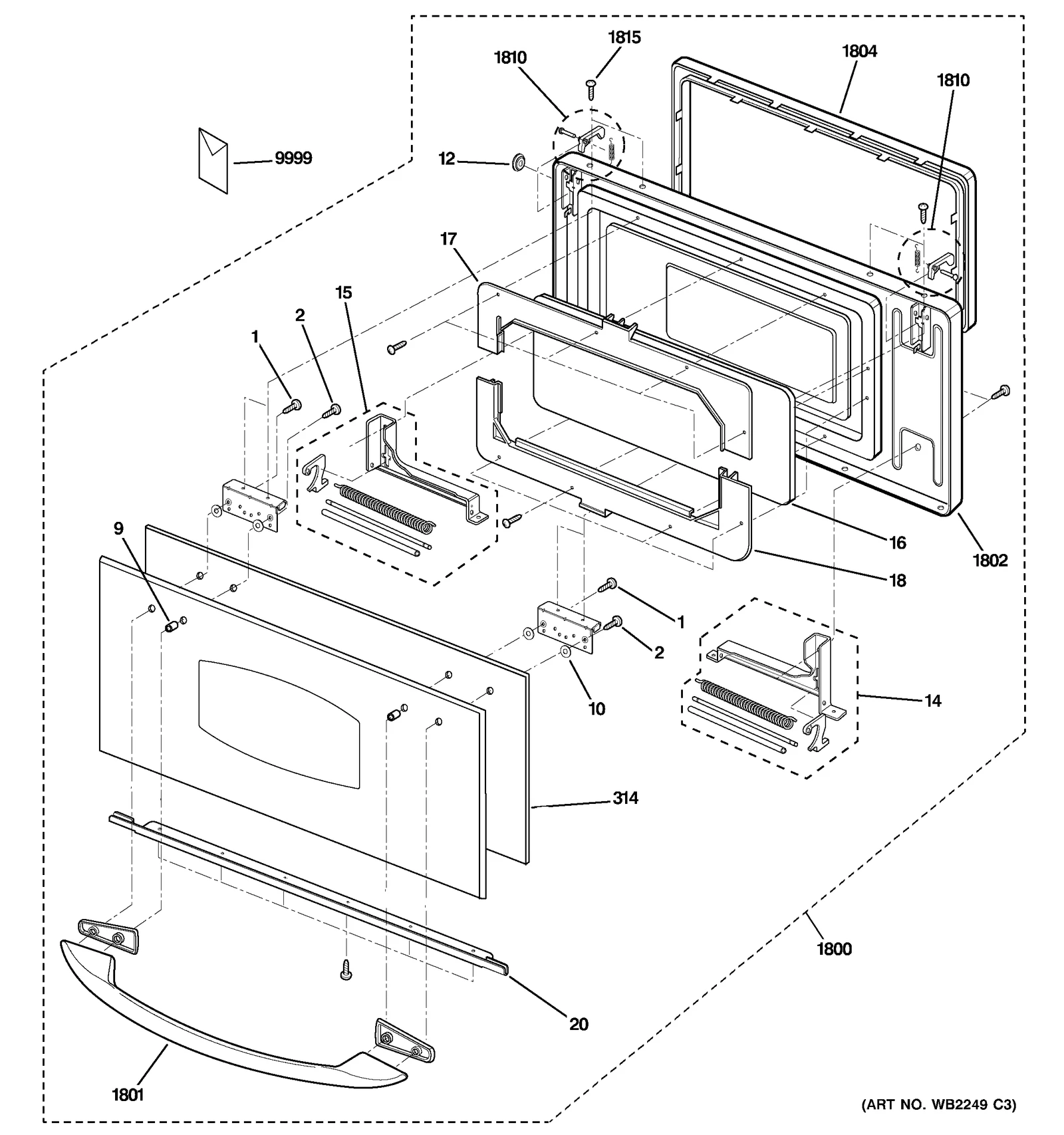

DOOR PARTS
Parts in DOOR PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SCREW, HILO, 8/5" | - |
| 2 | | SCREW,HILO,8/7" | $3.95 ApplianceParts Pro |
| 9 | – | WB01X10105 CUSHION - TEFLON | - |
| 10 | | WASHER - TEFLON | - |
| 12 | | PIN - PROTECTOR | - |
| 14 | | HINGE ASS'Y - RIGHT | - |
| 15 | | HINGE ASS'Y - LEFT | - |
| 16 | | DOOR MIDDLE GLASS | - |
| 17 | | GLASS HOLDER - UPPER | - |
| 18 | | GLASS HOLDER - LOWER | - |
| 20 | | DOOR GLASS MOUNT - BK | - |
| 314 | | WB36X10235NLA GLASS DOOR-OUTER | Discontinued |
| 1800 | – | WB56X10533 DOOR ASM BLK W/HANDLE | - |
| 1801 | | DOOR HANDLE | - |
| 1802 | | DOOR FRAME GLASS ASM | - |
| 1804 | | CHOKE COVER | - |
| 1810 | | DOOR LATCH ASM | - |
| 1815 | | SCREW DOOR FROM TOP | - |
| 9999 | – | 28-X060 USE & CARE VIDEO | - |
| 9999 | – | 31-40428 MINI MANUAL | - |
| 9999 | – | 49-40101 USE & CARE MANUAL | - |
| 9999 | – | 49-40104 COOKBOOK | - |
| 9999 | – | 49-40293 INSTALLATION INSTRUCTION | - |
