Model
GE SCB2001FSS01
Microwave Or Advantium
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SCB2001FSS01Microwave Or Advantium
6 diagrams85 parts
Parts Sections (6)
Diagram

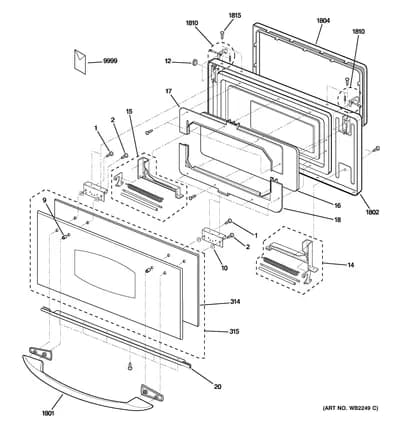

DOOR PARTS
Parts in DOOR PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SCREW, UNF, 8/5 | - |
| 2 | – | WB01X10208 SCREW, UNF,8/7" | - |
| 9 | – | WB01X10105 CUSHION - TEFLON | - |
| 10 | | WASHER - TEFLON | - |
| 12 | | PIN - PROTECTOR | - |
| 14 | | HINGE RIGHT ASM | - |
| 15 | | HINGE LEFT ASM | - |
| 16 | | DOOR MIDDLE GLASS | - |
| 17 | | GLASS HOLDER - UPPER | - |
| 18 | | GLASS HOLDER - LOWER | - |
| 20 | | DOOR GLASS MOUNT - SS | - |
| 314 | | WB36X10235NLA GLASS DOOR-OUTER | Discontinued |
| 315 | | WB36X10238NLA GLASS ASSY | Discontinued |
| 1801 | – | WB15X10113 DOOR HANDLE | - |
| 1802 | | DOOR FRAME GLASS ASM | - |
| 1804 | | CHOKE COVER | - |
| 1810 | | DOOR LATCH ASM | - |
| 1815 | | SCREW DOOR FROM TOP | - |
| 9999 | – | 28-X060 USE & CARE VIDEO | - |
| 9999 | – | 31-20940 MINI-MANUAL | - |
| 9999 | – | 49-40101 USE & CARE MANUAL | - |
| 9999 | – | 49-40104 COOKBOOK | - |
| 9999 | – | 49-40293 INSTALLATION INSTRUCTION | - |
