Model
GE SCBC2001CSS01
Microwave Or Advantium
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
SCBC2001CSS01Microwave Or Advantium
6 diagrams90 parts
Parts Sections (6)
Diagram

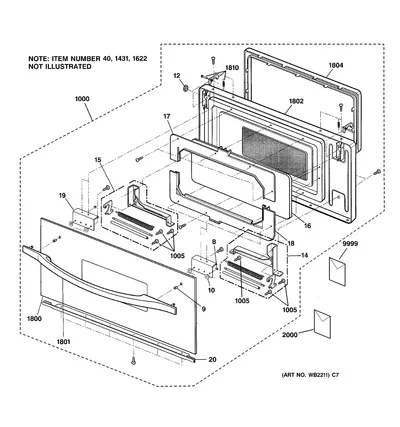

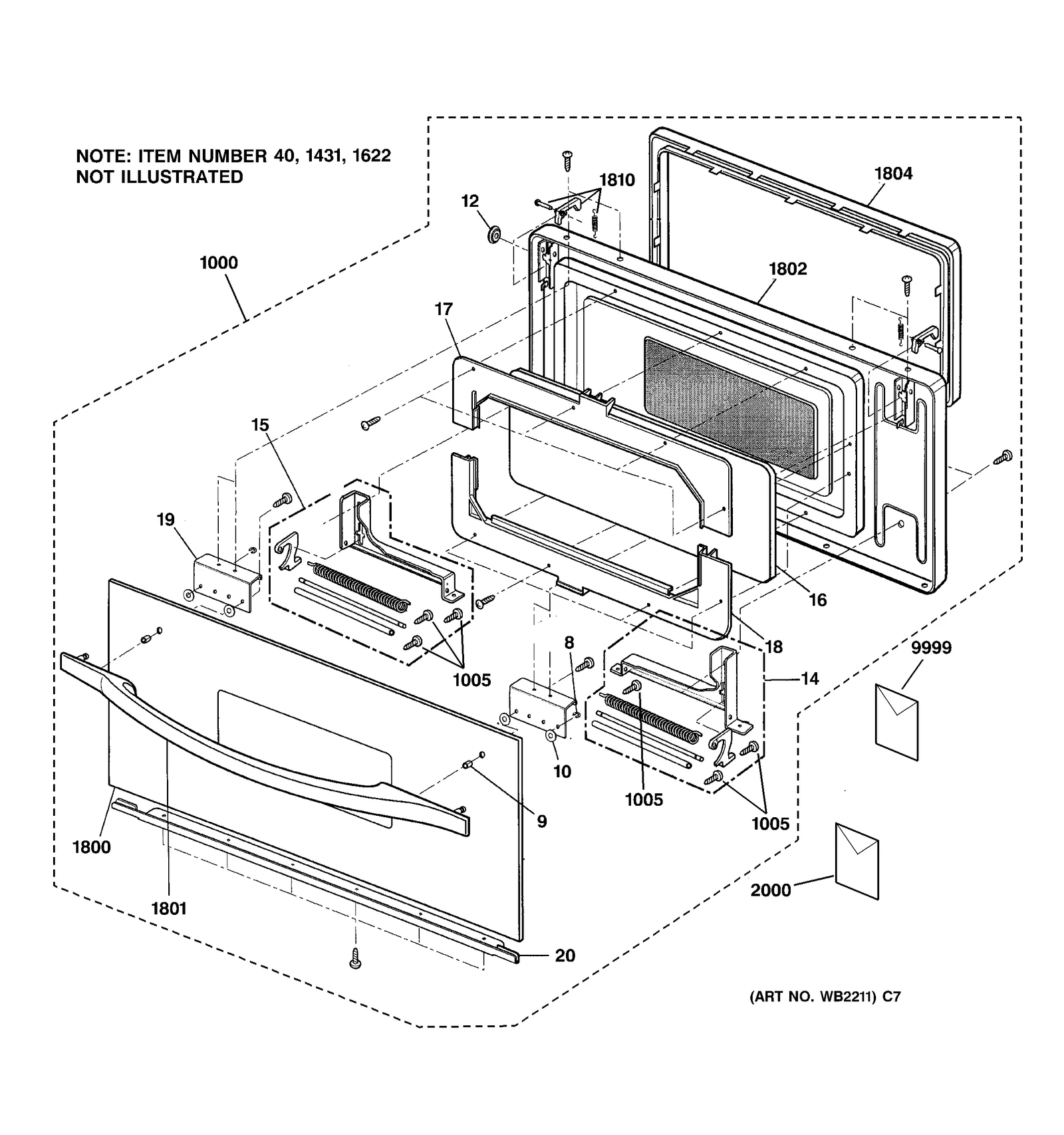

DOOR PARTS
Parts in DOOR PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 8 | – | WB01X10106 RING STOP - "C" CLIP | - |
| 9 | – | WB01X10105 CUSHION - TEFLON | - |
| 10 |  | WASHER - TEFLON | - |
| 12 | | PIN - PROTECTOR | - |
| 14 | | HINGE RIGHT ASM | - |
| 15 | | HINGE LEFT ASM | - |
| 16 | | DOOR MIDDLE GLASS | - |
| 17 | | GLASS HOLDER - UPPER | - |
| 18 | | GLASS HOLDER - LOWER | - |
| 19 | – | WB02X10673 DOOR HANDLE MNTG BRACE | - |
| 20 | | DOOR GLASS MOUNT - SS | - |
| 40 | – | WB02X10735 PROTECTOR FRONT | - |
| 1000 | – | WB56X10379 DOOR ASM SS | - |
| 1005 | – | WB01X10156 SCREW - HINGE | - |
| 1431 | – | WB06X10229 CHOKE FILTER ASS'Y | - |
| 1800 | | WB55X10353NLA SS DOOR CVR W/GLS ASS'Y | Discontinued |
| 1801 | – | WB15X10057 HANDLE ASS'Y - BK | - |
| 1802 | | DOOR FRAME GLASS ASM | - |
| 1804 | | CHOKE COVER | - |
| 1810 | | DOOR LATCH ASM | - |
| 2000 | – | WB01X10175 SCREW 5-PK INSTL | - |
| 9999 | – | 28-X060 USE & CARE VIDEO | - |
| 9999 | – | 49-40102 USE & CARE MANUAL | - |
| 9999 | – | 49-40103 INSTALLATION INSTRUCTION | - |
| 9999 | – | 49-40104 COOKBOOK | - |
