Model
Private Brand XGF300SM1WW
Gas Range Or Dual Fuel
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelPrivate Brand
XGF300SM1WWGas Range Or Dual Fuel
4 diagrams132 parts

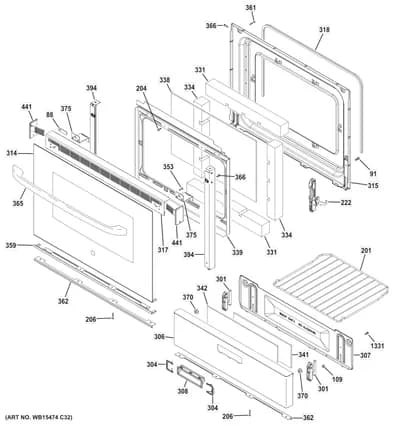

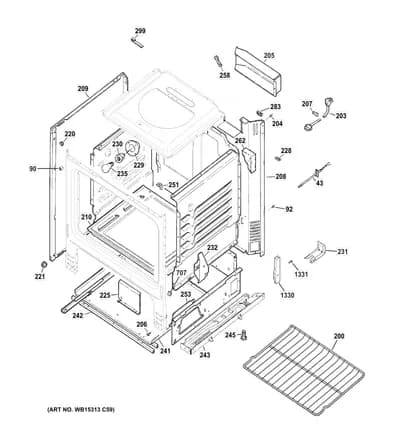

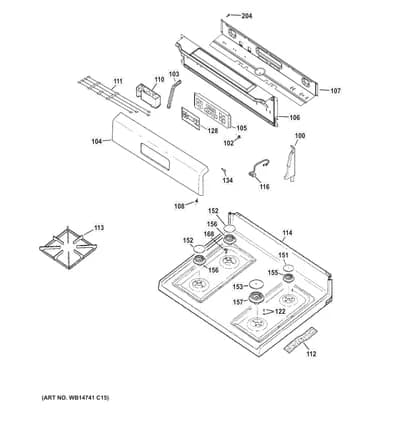

Parts Sections (4)
Diagram

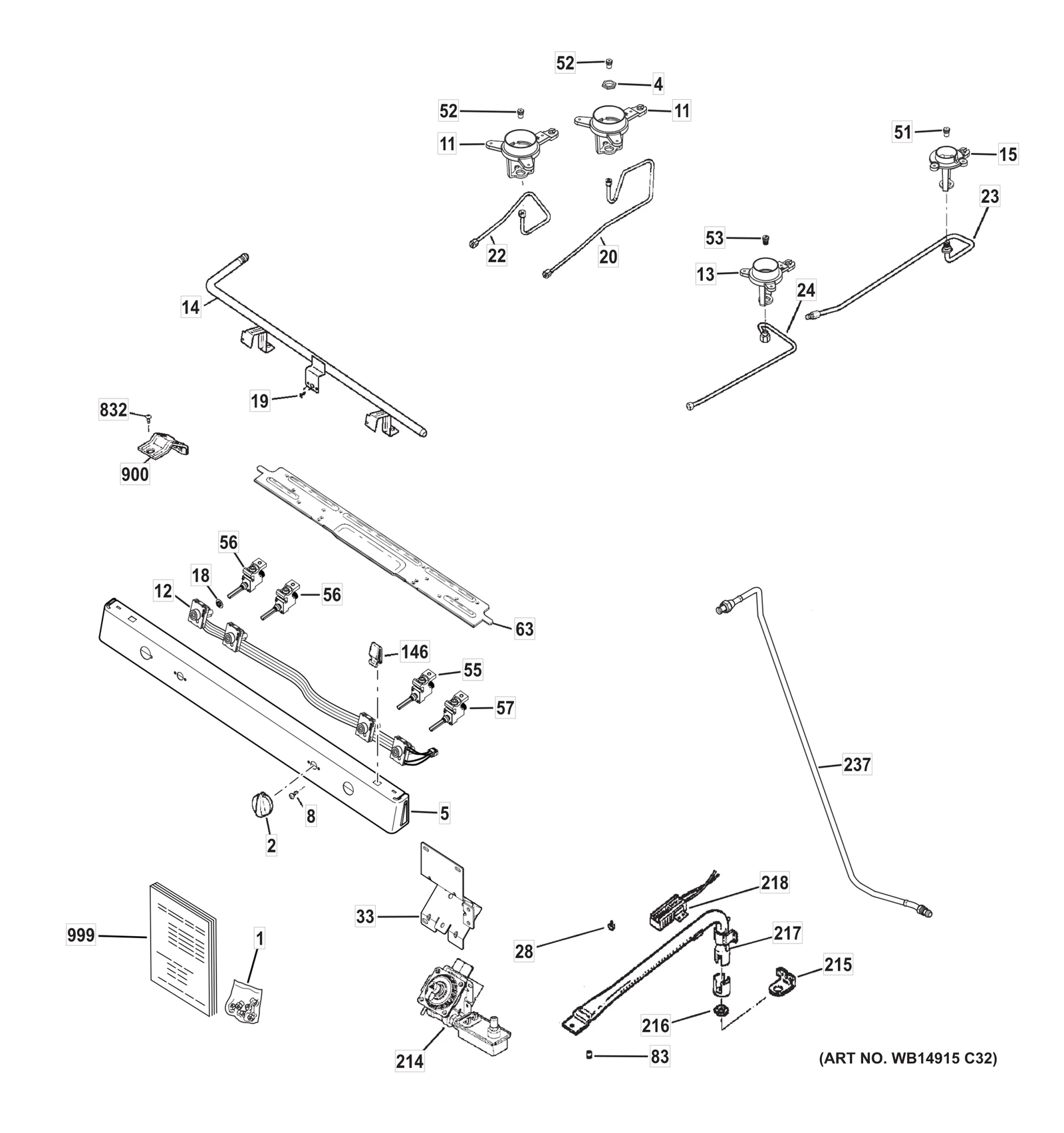

GAS & BURNER PARTS
Parts in GAS & BURNER PARTS
40 parts

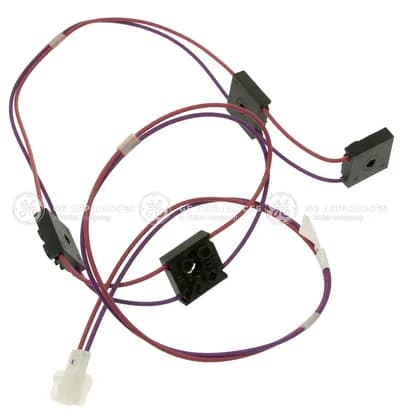

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | LP CONVERSION KIT | $9.51 Part Advantage |
| 2 |  | KNOB MINIVALVE | $6.19 Part Advantage |
| 4 |  | ECONOMIC NUT | $7.24 Parts Dr |
| 5 |  | WHITE MANIFOLD PANEL | - |
| 8 |  | SCREW 8-32 | $18.16 Parts Dr |
| 11 |  | INJET, MEDIUM V2 | $18.89 Parts Dr |
| 12 |  | SWITCHES HARNESS BURNER BOX | $36.85 RepairClinic |
| 13 |  | INJET, LARGE V2 | $14.46 Parts Dr |
| 14 |  | MANIFOLD PIPE | - |
| 15 |  | INJET, SMALL V2 | $16.47 Parts Dr |
| 18 |  | WB2K24replaces WB02K0024 COVER VALVE | $52.73 ApplianceParts Pro |
| 19 |  | WB1K8replaces WB01K0008 SCREW THERMOSTAT | $7.95 ApplianceParts Pro |
| 20 |  | REAR ORIFICE HOLDER LEFT | $93.24 Parts Dr |
| 22 |  | FRONT ORIFICE HOLDER LEFT | $43.96 Part Advantage |
| 23 |  | REAR ORIFICE HOLDER RIGHT | $97.20 PartSelect |
| 24 |  | FRONT ORIFICE HOLDER RIGHT | $43.84 Part Advantage |
| 28 |  | WB1X1293replaces WB01K0050 SCREW MTG IGNITER | $5.09 Part Advantage |
| 33 |  | BRACKET REGULATOR | - |
| 51 |  | ORIFICE SPUD LP | $10.42 Parts Dr |
| 52 |  | ORIFICE-LP 89MM | $8.15 Part Advantage |
| 53 |  | ORIFICE-LP LG 99MM | $21.74 Parts Dr |
| 55 |  | ROUND VALVE BURNER 140 | $20.91 Part Advantage |
| 56 |  | ROUND VALVE BURNER 140 | $22.05 Part Advantage |
| 57 |  | ROUND VALVE BURNER 140 | $27.19 Parts Dr |
| 63 |  | MANIFOLD SUPPORT | $7.95 ApplianceParts Pro |
| 83 |  | OVEN ORIFICE SPUD LP | $13.27 Parts Dr |
| 146 |  | WB2K52replaces WB02K0052 CLIP RANGETOP | - |
| 214 |  | VALVE CONTROL ASM | $81.97 Part Advantage |
| 215 |  | WB2K65replaces WB02K0065 BRACKET SAFETY VALVE | $8.95 ApplianceParts Pro |
| 216 | | WB01K0006NLA NUT LOCK | Discontinued |
| 217 |  | BURNER OVEN ASSY | $39.30 Part Advantage |
| 218 |  | WB13X40208replaces WB13K0021 IGNITER-OVEN BAKE | $67.50 Part Advantage |
| 237 |  | TUBE MANIFOLD SUPPLY ASM | $15.73 Part Advantage |
| 832 |  | SCREW THERMOSTAT | $7.95 ApplianceParts Pro |
| 900 |  | ROUND VALVE BRACKET | - |
| 999 | – | 49-2001080 PM OWNERS MANUAL | - |
| 999 | – | 31-2001115 PM MINI MANUAL AND WIRING | - |
| 999 | – | 31-2001203 PM INSTALL INSTRUCTIONS | - |
| 999 | – | 49-2000224 PM QUICK OWNERS MANUAL | - |
| 999 | – | 31-2001205 PM INSTALL INSTRUCTIONS | - |
