Model
Private Brand XGF500PV1WW
Gas Range Or Dual Fuel
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelPrivate Brand
XGF500PV1WWGas Range Or Dual Fuel
4 diagrams104 parts
Parts Sections (4)

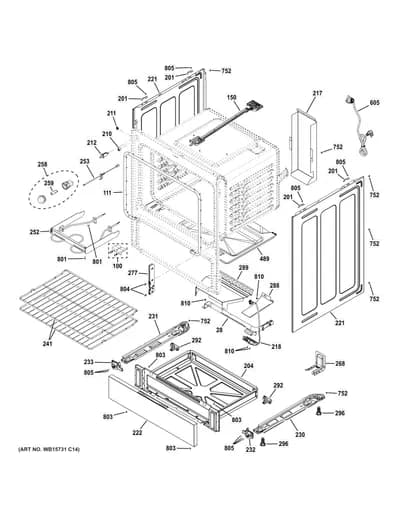

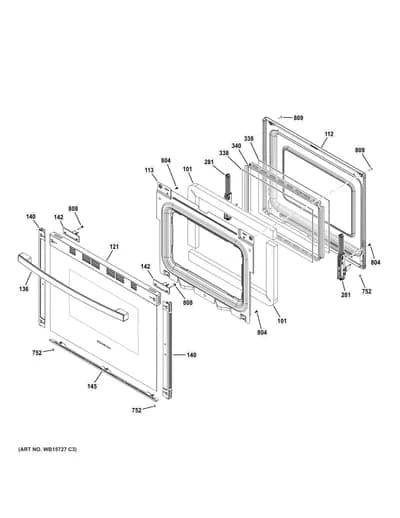

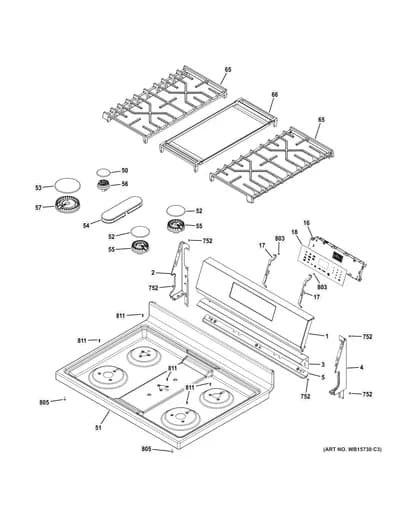

Diagram

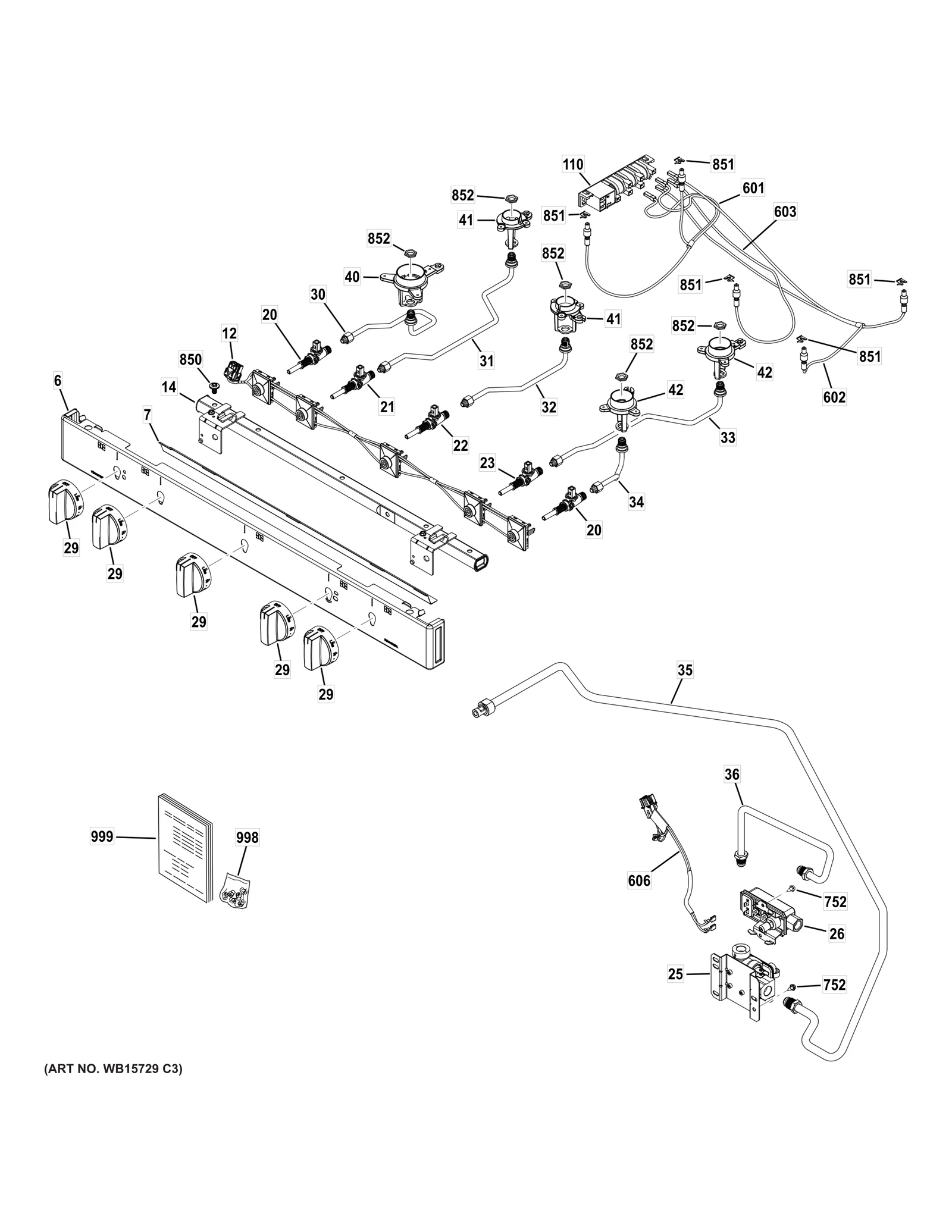

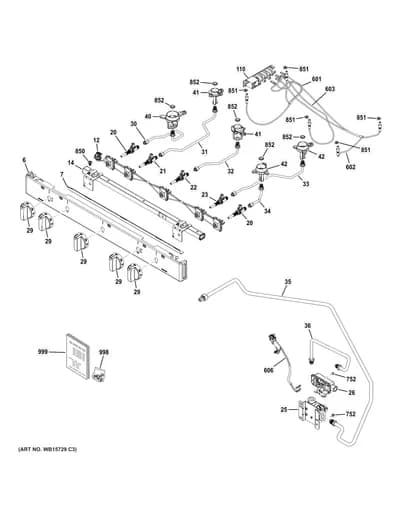

GAS & BURNER PARTS
Parts in GAS & BURNER PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 6 |  | MANIFOLD | - |
| 7 |  | SHIELD PANEL | - |
| 12 | | SWITCH HARNESS | $34.95 ApplianceParts Pro |
| 14 | | MANIFOLD | - |
| 20 |  | VALVE BURNER | $17.44 Part Advantage |
| 21 |  | VALVE BURNER | $16.11 Part Advantage |
| 22 |  | VALVE BURNER | $29.26 Parts Dr |
| 23 |  | VALVE BURNER | $19.72 Part Advantage |

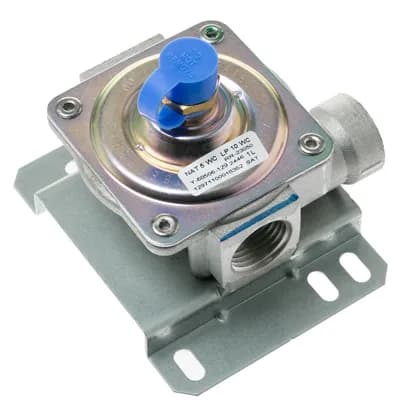

| 25 |  | PRESSURE REGULATOR | $38.70 Parts Dr |

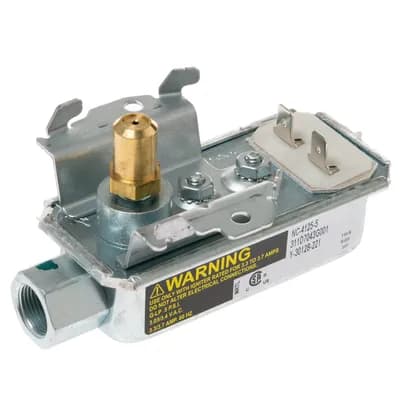

| 26 |  | VALVE SAFETY SINGLE ASM | $55.95 ApplianceParts Pro |
| 29 |  | KNOB | $8.42 ApplianceParts Pro |
| 30 | | ORIFICE HOLDER LF | - |
| 31 | | ORIFICE HOLDER LR | $11.95 ApplianceParts Pro |
| 32 |  | ORIFICE HOLDER CTR | $10.95 ApplianceParts Pro |
| 33 | | ORIFICE HOLDER RR | - |
| 34 | | ORIFICE HOLDER RF | - |
| 35 |  | COOKTOP SUPPLY TUBE | - |
| 36 | | SAFETY VALVE SUPPLY TUBE | - |
| 40 |  | INJET, XL V2 | $84.43 PartSelect |
| 41 |  | INJET, SMALL V2 | $16.47 Parts Dr |
| 42 |  | INJET, MEDIUM V2 | $18.89 Parts Dr |
| 110 |  | SPARK MODULE | - |
| 601 | | HARNESS HV LF/LR | $18.22 PartSelect |
| 602 | | HARNESS HV RF/RR | $12.95 ApplianceParts Pro |
| 603 | | HARNESS HV CTR | - |
| 606 | | SAFETY VALVE HARNESS | - |
| 752 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 850 |  | SCR 8 HD 1/4 - 20 | $9.02 RepairClinic |
| 851 |  | CLIP, IGNITER V2 | $8.39 ApplianceParts Pro |
| 852 |  | ECONOMIC NUT | $7.24 Parts Dr |
| 998 | | NATURAL GAS HIGH ALTITUDE CONVERSION KIT | $29.40 ApplianceParts Pro |
| 998 |  | NATURAL GAS CONVERSION KIT | - |
| 998 |  | LP HIGH ALTITUDE CONVERSION KIT | - |
| 998 |  | LP CONVERSION KIT | $26.16 Parts Dr |
| 999 | – | 49-2001189 PM OWNERS MANUAL | - |
| 999 | – | 31-2001200 PM MINI MANUAL AND WIRING | - |
| 999 | – | 31-2001195 PM INSTALL INSTRUCTIONS | - |
