Model
GE ZET1038PF3SS
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET1038PF3SSElectric Range
5 diagrams133 parts
Parts Sections (5)
Diagram

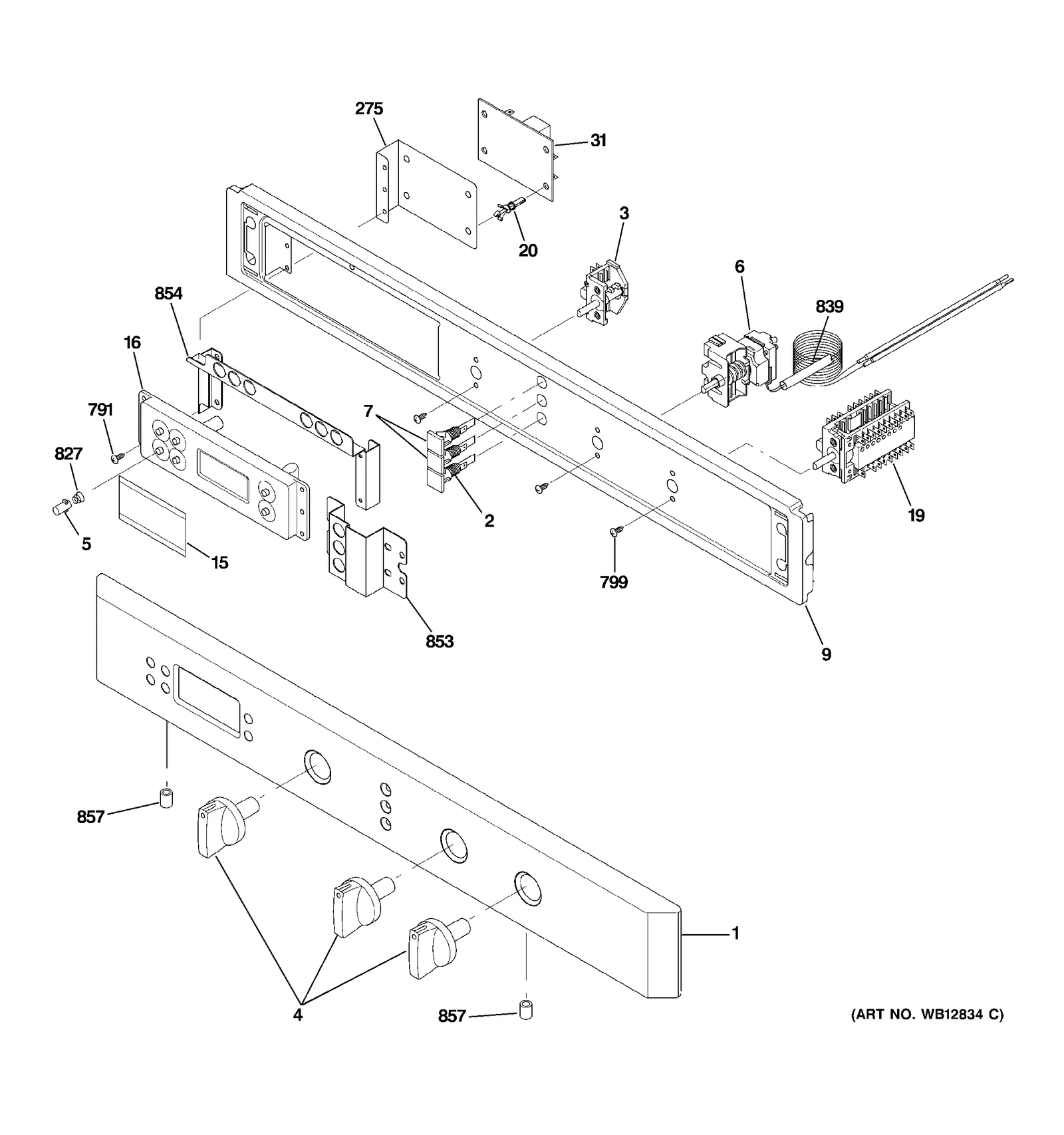

CONTROL PANEL
Parts in CONTROL PANEL
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB07X10721 CONTROL PANEL S.S | - |
| 2 |  | PILOT LAMP 240V | - |
| 3 | | MANUAL CONTROL SWITCH | $53.51 RepairClinic |
| 4 | | STAINLESS STEEL KNOB | - |
| 5 | | TIMER PUSH BUTTON | - |
| 6 | – | WB24X10117 UPPER OVEN | - |
| 7 | | WH PILOT LAMP | - |
| 9 | – | WB07X10263 BLK COMPONENTS SUPPORT | - |
| 15 | | FILTER/TIMER | - |
| 16 | | TIMER ELECTRONIC | - |
| 19 | | WB24X10119NLA MAIN SWITCH | Discontinued |
| 20 | – | WB02X10411 SPACER CIRCUIT | - |
| 31 | | RELAY BOARD | - |
| 275 | | WB02X10408NLA SUPPORT RELAY BOARD | Discontinued |
| 791 | – | WB01X10226 SLF TAP,SCR | - |
| 799 | – | WB01X10234 SCR, M4 | - |
| 827 | | SPRING PUSH BUTTON | - |
| 839 |  | PIPE | - |
| 853 | – | WB02X10959 PILOT LAMPS SUPPORT | - |
| 854 | – | WB02X10958 SUPPORT, TIMER | - |
| 857 | – | WB02X10961 SPACER FOR PARTITION | - |
