Model
GE ZET1DJ2SS
Electric Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET1DJ2SSElectric Range
6 diagrams138 parts
Parts Sections (6)
Diagram

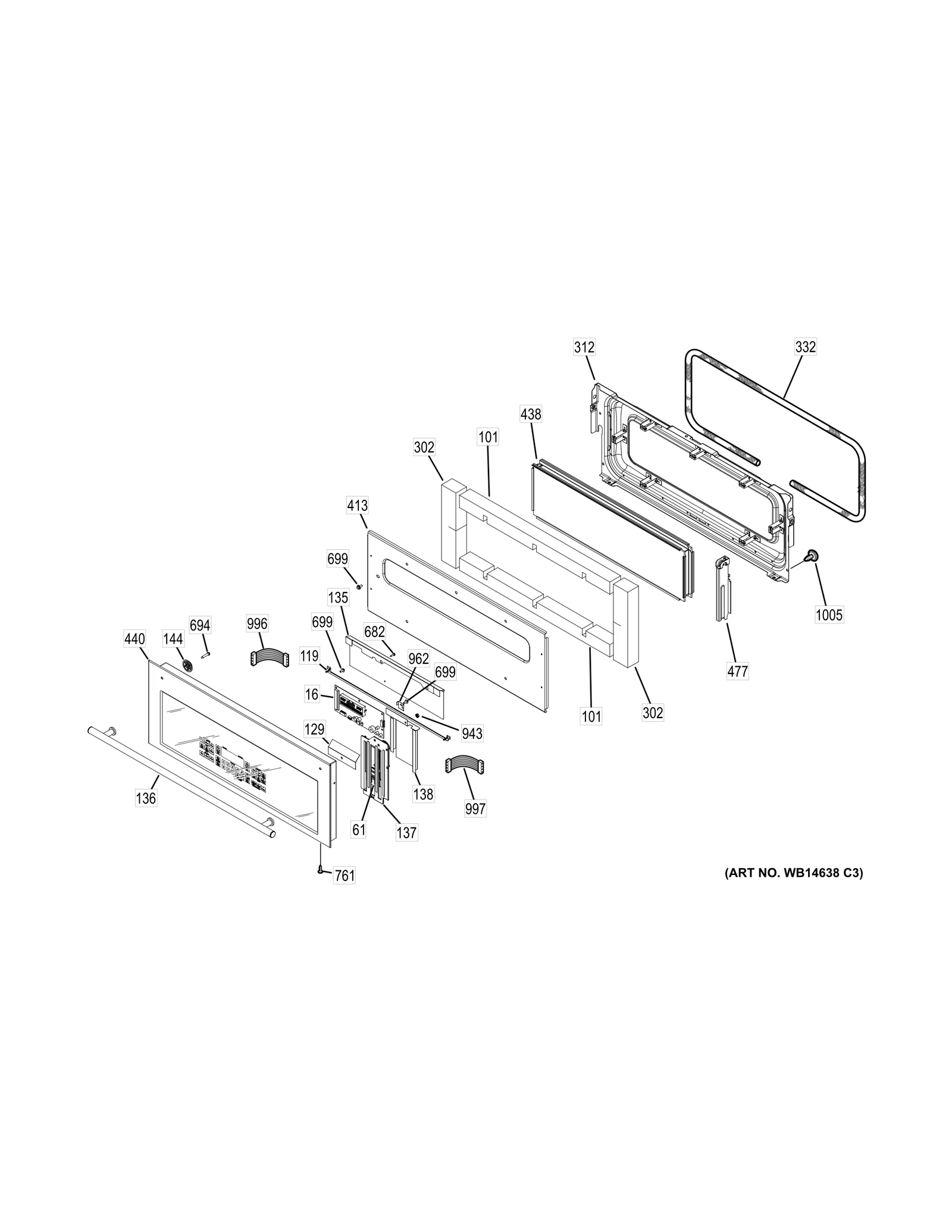

CONTROL PANEL & UPPER DOOR
Parts in CONTROL PANEL & UPPER DOOR
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

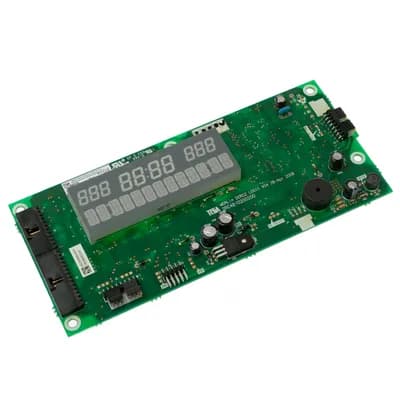

| 16 |  | DISPLAY CONTROL MODULE WHITE LED | - |
| 61 |  | WB63T10143replaces WB27T11070 BOARD SLIDER INTERFACE | $119.53 PartSelect |
| 101 |  | INSULATION OVN DR TOP UP | - |
| 119 |  | WIPER DOOR | - |
| 129 |  | COVER SLIDER TOP | - |
| 135 | | COVER TOUCH BOARD | - |
| 136 |  | HANDLE ASM 30 (SS) | - |
| 137 | | SLIDER ASM BASE | $119.53 PartSelect |
| 138 | – | WB02T10420 COVER SLIDER | - |
| 144 |  | SPACER DOOR HDL | $14.95 ApplianceParts Pro |
| 302 | | WB35X30051replaces WB35T10168 INSULATION OV DR UPRSIDE | - |
| 312 |  | LINING OVEN DOOR ASM | - |
| 332 |  | WB35X27911replaces WB04T10075 GASKET OVEN DOOR | $35.95 ApplianceParts Pro |
| 413 | | RETAINER INSLN OVN DR | - |
| 438 |  | WINDOW PACK ASM UPR | - |
| 440 | | UPPER OUTER DOOR ASM WHITE LED | - |
| 477 |  | RECEIVER HINGE UPR (RT) | $34.78 ApplianceParts Pro |
| 477 |  | RECEIVER HINGE UPR ( LT) | $26.60 ApplianceParts Pro |
| 682 |  | WB1K5186replaces WB01K5186 SCREW 6-32X3/5" 1/4 HEX | $4.37 ApplianceParts Pro |
| 694 | | SCREW | - |
| 699 |  | WB1M1replaces WB01K5150 SCREW ST10-16 X 7/16" | $7.64 RepairClinic |
| 761 |  | SCR 8-18X.450 AB FLT20 S | - |
| 943 | | NUT KEPS 8-32 SPECIAL | - |
| 962 | | SPRING WIPER | - |
| 996 |  | WB18X31100replaces WB18T10421 DOOR HARNESS RBN CONN | - |
| 997 |  | WB18X31102replaces WB18T10427 SAIL SWITCH/PROBE HARNES | - |
| 997 |  | RELAY BRD/SENSOR HARNESS | - |
| 997 | | LED RIBBON CONNECTOR | - |
| 1005 |  | SCREW 10-32 TR T | $5.09 Part Advantage |
