Model
GE ZET1PL1SS
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET1PL1SSElectric Range
5 diagrams116 parts

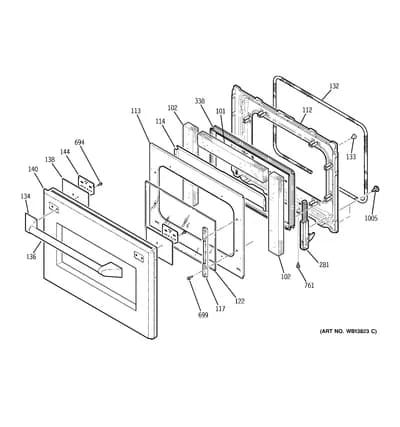

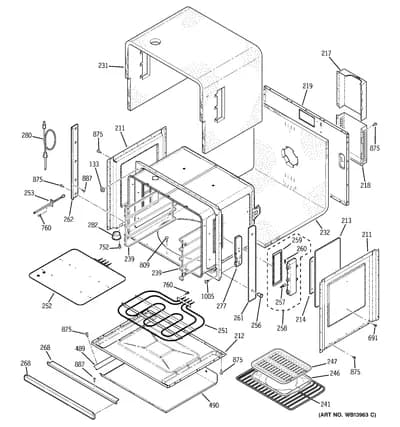

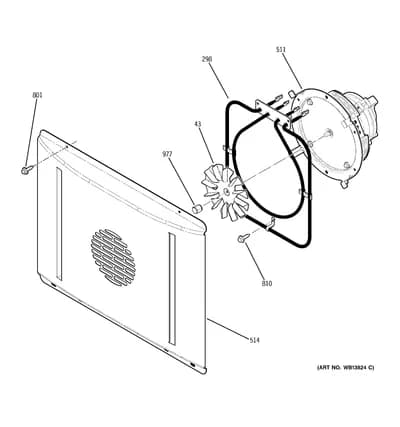

Parts Sections (5)
Diagram

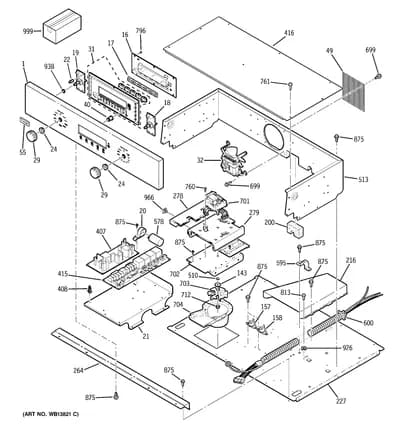

CONTROL PANEL
Parts in CONTROL PANEL
54 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PANEL CNTL ASM 30 MGM | - |
| 16 | | BOARD ASM DISPLAY SWO | - |
| 17 | | KEYPAD | - |
| 18 | | WB27T10820NLA ENCODER ASM MODE | Discontinued |
| 19 | | WB24T10128NLA ENCODER ASM MODE | Discontinued |
| 20 |  | BRACKET CAPACITOR | $3.47 RepairClinic |
| 21 | – | WB02T10296 BRACKET BOARD SUPT | - |
| 22 |  | STANDOFF | $7.95 ApplianceParts Pro |
| 24 | | BUSHING CNTL PANEL | - |
| 29 |  | KNOB ASM METAL | $91.95 ApplianceParts Pro |
| 31 | | BUTTON ASM | - |
| 32 | | FAN ASM | - |
| 40 |  | KNOB TIMER (SS) | - |
| 49 |  | SCREEN FAN | - |
| 55 |  | BADGE MONOGRAM SMALL | $78.00 RepairClinic |
| 143 |  | WB1K5117replaces WB01K5117 WASHER .250 ID X .812 OD | $14.95 ApplianceParts Pro |
| 157 |  | SWITCH HG LMT OV BCK LWR | $36.70 ApplianceParts Pro |
| 158 | | SWITCH LIMIT | - |
| 200 | | PLUG FOAM | - |
| 216 |  | COVER WIRE TOP | - |
| 227 | – | WB02T10290 RETAINER INSLN TOP | - |
| 264 | | TRIM VENT INR (BK) | - |
| 278 | – | WB35T10132 INSULATION VENT TOP | - |
| 279 | | INSULATION VENT TOP | - |
| 407 | – | WB27T10822 BOARD ASM POWER SUPPLY | - |
| 408 |  | STANDOFF | - |
| 415 |  | BOARD ASM RELAY | $245.95 Parts Dr |
| 416 | – | WB34T10119 COVER FAN HOUSING | - |
| 510 | | CLIP-E | - |
| 513 | | WB26T10014NLA HOUSING FAN | Discontinued |
| 578 |  | CAPACITOR MOTOR | $13.49 Parts Dr |
| 595 |  | WB2K5126replaces WB02K5126 CONDUIT CLAMP | - |
| 600 | – | WB18T10376 CONDUIT WIRE ASM | - |
| 699 |  | WB1M1replaces WB01K5150 SCREW ST10-16 X 7/16" | $7.64 RepairClinic |
| 701 | | WB26T10030NLA MOTOR VENT | Discontinued |
| 702 | – | WB02T10291 BODY VENT TOP | - |
| 703 | | BLADE VENT FAN | - |
| 704 | | BODY VENT BOTTOM | - |
| 712 | | NUT OVEN VENT | - |
| 760 |  | WB1X536replaces WB01K5028 SCREW | $16.81 Parts Dr |
| 761 |  | WB1K5029replaces WB01K5029 SCREW | $7.95 ApplianceParts Pro |
| 796 |  | WB1K5116replaces WB01K5116 SCREW | $8.95 ApplianceParts Pro |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 938 |  | NUT ENCODER | - |
| 966 |  | WB2X9573replaces WB02X9573 CLIP | - |
| 999 | – | 31-10514 INSTRUCTION SHEET | - |
| 999 | – | 31-10633 INSTRUCTION INSTALL | - |
| 999 | – | 31-14387 MANUAL MINI & WD ASM | - |
| 999 | – | 49-80325 MANUAL USE & CARE | - |
| 999 |  | LUBRICANT CLEANER | $48.72 Parts Dr |
| 999 |  | HARNESS MEAT PROBE | - |
| 999 | | HARNESS WIRE MAIN | - |
