Model
GE ZET1RM3SS
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET1RM3SSElectric Range
5 diagrams103 parts

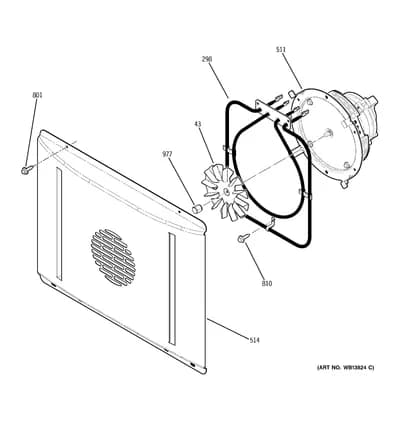

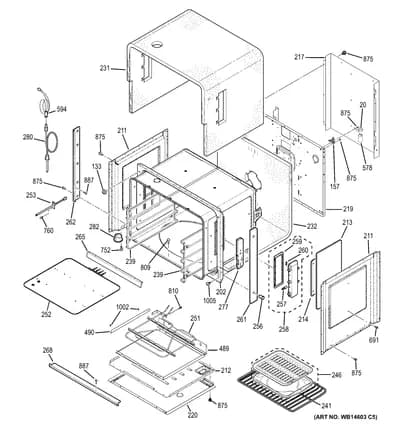

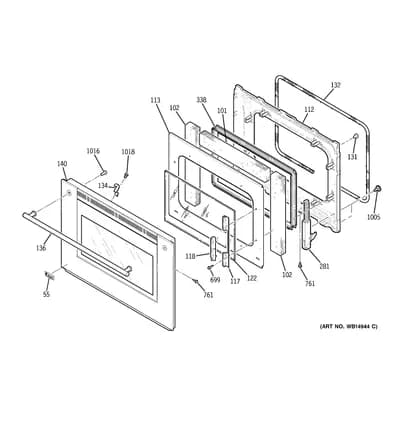

Parts Sections (5)
Diagram

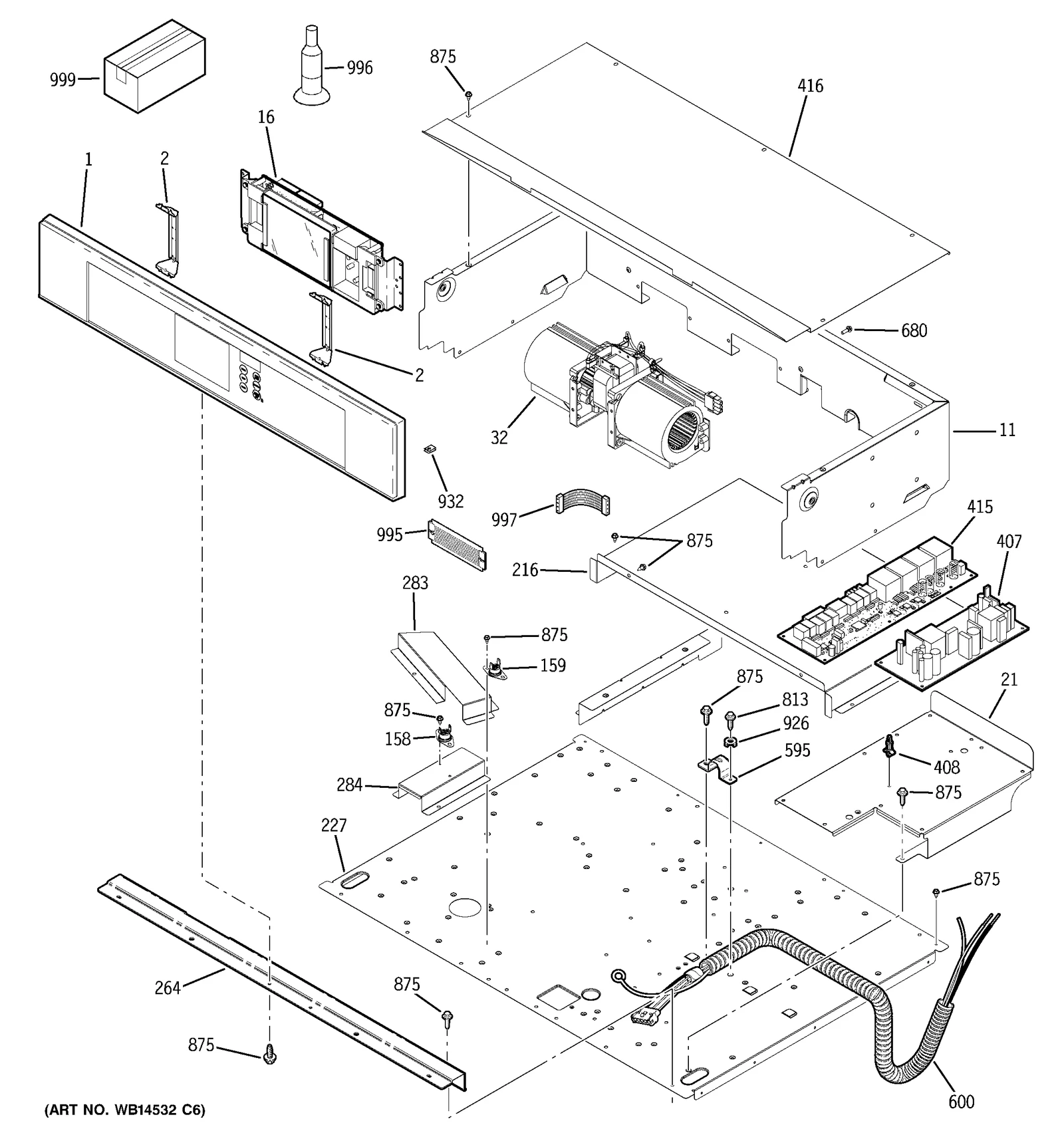

CONTROL PANEL
Parts in CONTROL PANEL
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WB27T11000NLA FRAME CNTL & PANEL ASM | Discontinued |
| 2 | | BRACKET CNTL MTG 30 | - |
| 11 | | HOUSING FAN | - |
| 16 | | WB27T11264NLA HOUSING LCD & BKT ASM | Discontinued |
| 21 | | BRACKET BOARD SUPT | - |
| 32 |  | WB26X31059replaces WB26T10054 FAN BLOWER | $63.28 Part Advantage |
| 158 |  | SWITCH LIMIT BIMETAL | $9.95 ApplianceParts Pro |
| 159 |  | CLEAN TCO | $12.57 ApplianceParts Pro |
| 216 | | COVER TOP WIRE | - |
| 227 | | RETAINER INSLN TOP | - |
| 264 |  | TRIM VENT INNER (BK) | - |
| 283 |  | DUCT OVN EXHAUST | - |
| 284 |  | DUCT OVN EXHAUST | - |
| 407 | | BOARD ASM POWER SUPPLY | - |
| 408 |  | STANDOFF | - |
| 415 |  | BOARD ASM RELAY | $218.41 Parts Dr |
| 416 | | COVER FAN HOUSING | - |
| 595 |  | WB2K5126replaces WB02K5126 CONDUIT CLAMP | - |
| 600 |  | CONDUIT WIRE ASM 52" | - |
| 680 |  | WR1X1850replaces WR01X1850 SCR 7-19 HXW 1/2 | $7.95 ApplianceParts Pro |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 932 |  | WB1K5209replaces WB01K5209 CLIP | - |
| 995 | | HARNESS LOGIC POWER/BRD | - |
| 996 |  | LUBRICANT CLEANER | $48.72 Parts Dr |
| 997 | | HARNESS WIRE GT LCD | - |
| 999 | – | 31-10649 INSTRUCTION INSTALL | - |
| 999 | – | 31-10662 PM INSTALL INSTRUCTIONS | - |
| 999 | – | 31-14824 MANUAL MINI & WD ASM | - |
| 999 | – | 49-80443 MANUAL USE & CARE | - |
