Model
GE ZET1SH1SS
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET1SH1SSElectric Range
5 diagrams123 parts
Parts Sections (5)

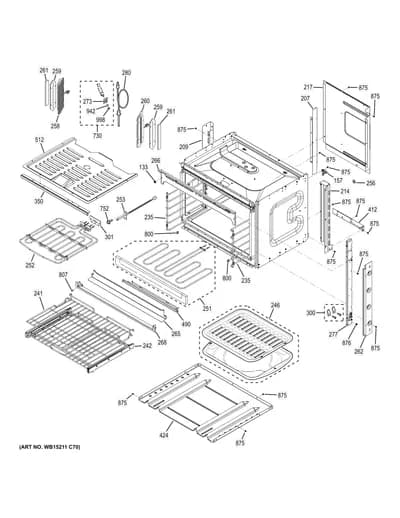

Diagram

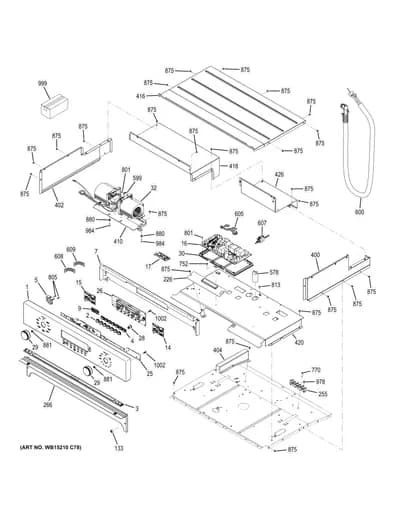

CONTROL PANEL
Parts in CONTROL PANEL
57 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | CONTROL PANEL ASM | $236.23 PartSelect |
| 1 | – | 229C6152P004 LABEL WIRE DIAGRAM | - |
| 2 |  | BUTTON CNTL PNL | $41.07 PartSelect |
| 3 |  | DIFFUSER AND TAPE ASM | - |
| 4 |  | KEY PAD | - |
| 5 |  | CONTROL PANEL SUPPORT BRACKET | - |
| 7 |  | WB34X29940replaces WB34X23557 CONTROL PANEL MOUNTING BRACKET | - |
| 9 |  | WB27X33353replaces WB27X22560 BOARD WIFI CAT MODULE | $45.59 Parts Dr |
| 14 |  | TEMP UI BOARD KNOB | $140.27 Parts Dr |
| 15 |  | MODE UI BOARD KNOB | $71.73 Parts Dr |

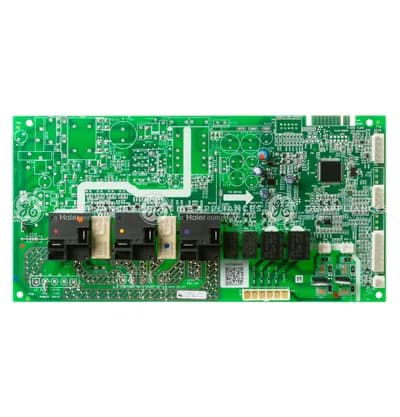

| 16 |  | BOARD MACHINE CONTROL | - |
| 17 |  | BOARD LED POWER SUPPLY | $165.45 Parts Dr |
| 25 |  | BOARD LED LIGHTS WHITE | $117.27 RepairClinic |
| 26 |  | WB27X24647replaces WB27X23856 BOARD UI DISPLAY | $292.95 ApplianceParts Pro |
| 28 |  | KNOB TIMER ASM MGM | - |
| 29 |  | KNOB ASM | - |
| 30 | | WB02X23564NLA FRAME BOARD RELAY | Discontinued |
| 32 |  | WB26X24020replaces WB26X23477 COOLING FAN | $58.99 Part Advantage |
| 133 |  | BUMPER DOOR | - |
| 226 |  | COVER LATCH ACCESS | - |
| 255 |  | WB17K10001replaces WB17T10024 BLOCK TERMINAL | - |
| 266 |  | TRIM VENT UPPER BLACK | - |
| 400 |  | COVER TOP RIGHT EDGE | - |
| 402 |  | COVER TOP LEFT EDGE | - |
| 404 |  | CHANNEL UPPER AIR VENT | - |
| 410 |  | BRACKET UPPER FAN MOUNT | $33.43 ApplianceParts Pro |
| 416 |  | WB34X28390replaces WB34T10165 COVER HOUSING FRT | - |
| 418 |  | WB34X32773replaces WB34T10157 COVER TOP REAR | - |
| 420 |  | DIVIDER AIR | $51.34 ApplianceParts Pro |
| 426 |  | COVER WIRE REAR | - |
| 578 |  | CAPACITOR MOTOR | $13.49 Parts Dr |
| 599 |  | BOARD FAN SENSOR | $42.98 Part Advantage |
| 600 |  | CONDUIT WIRE ASM | - |
| 600 |  | OPTIONAL 6 FT CONDUIT | $76.95 ApplianceParts Pro |
| 605 |  | HARNESS WIRE MAIN | - |
| 607 | | HARNESS WIRE COM | - |
| 608 | | HARNESS WIRE LATCH COM | - |
| 609 |  | HARNESS WIRE LED JUMPER | - |
| 752 |  | WB1K5200replaces WB01K5200 SCREW | $7.95 ApplianceParts Pro |
| 770 |  | WB1K5072replaces WB01K5072 SCREW | - |
| 801 |  | 6-19 X 1/4 TORX PAN HEAD | $7.95 ApplianceParts Pro |
| 805 |  | WB1K5062replaces WB01K5062 SCREW ST8-18X.500TRBRNI | $7.94 RepairClinic |
| 813 |  | SCR 10-32 GX HXW 7/16 S | - |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 880 |  | GROMMET | $7.37 ApplianceParts Pro |
| 881 |  | NUT ENCODER | - |
| 978 | – | WB01X1259 HEX NUT | - |
| 984 |  | SCREW 7-19 1/4HEX 1/2IN | $0.84 RepairClinic |
| 999 |  | LUBRICANT CLEANER | $48.72 Parts Dr |
| 999 | – | 49-80708 PM MANUAL USE & CARE | - |
| 999 | – | 49-80597 MANUAL U&C TIP SHEET | - |
| 999 | – | 31-11013 PM WI FI INSTRUCTIONS | - |
| 999 | – | 31-17014 PM MANUAL MINI & WD ASM | - |
| 999 | – | 31-10957 PM INSTALL INSTRUCTIONS | - |
| 999 | – | 31-10979 PM INSTALL INSTRUCTIONS | - |
| 999 | – | 31-10882 INSTRUCTION INSTALL | - |
| 1002 |  | SCR 8-18 B PNP 3/8 S ZN | - |
