Model
GE ZET2SM4SS
Electric Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET2SM4SSElectric Range
7 diagrams124 parts
Parts Sections (7)
Diagram

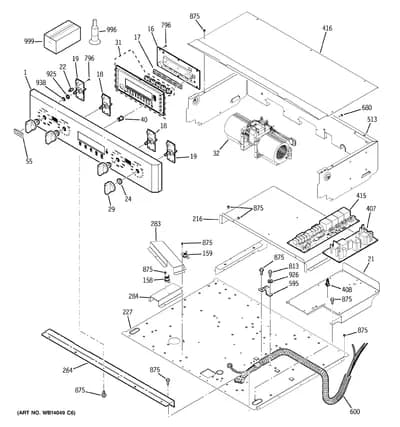

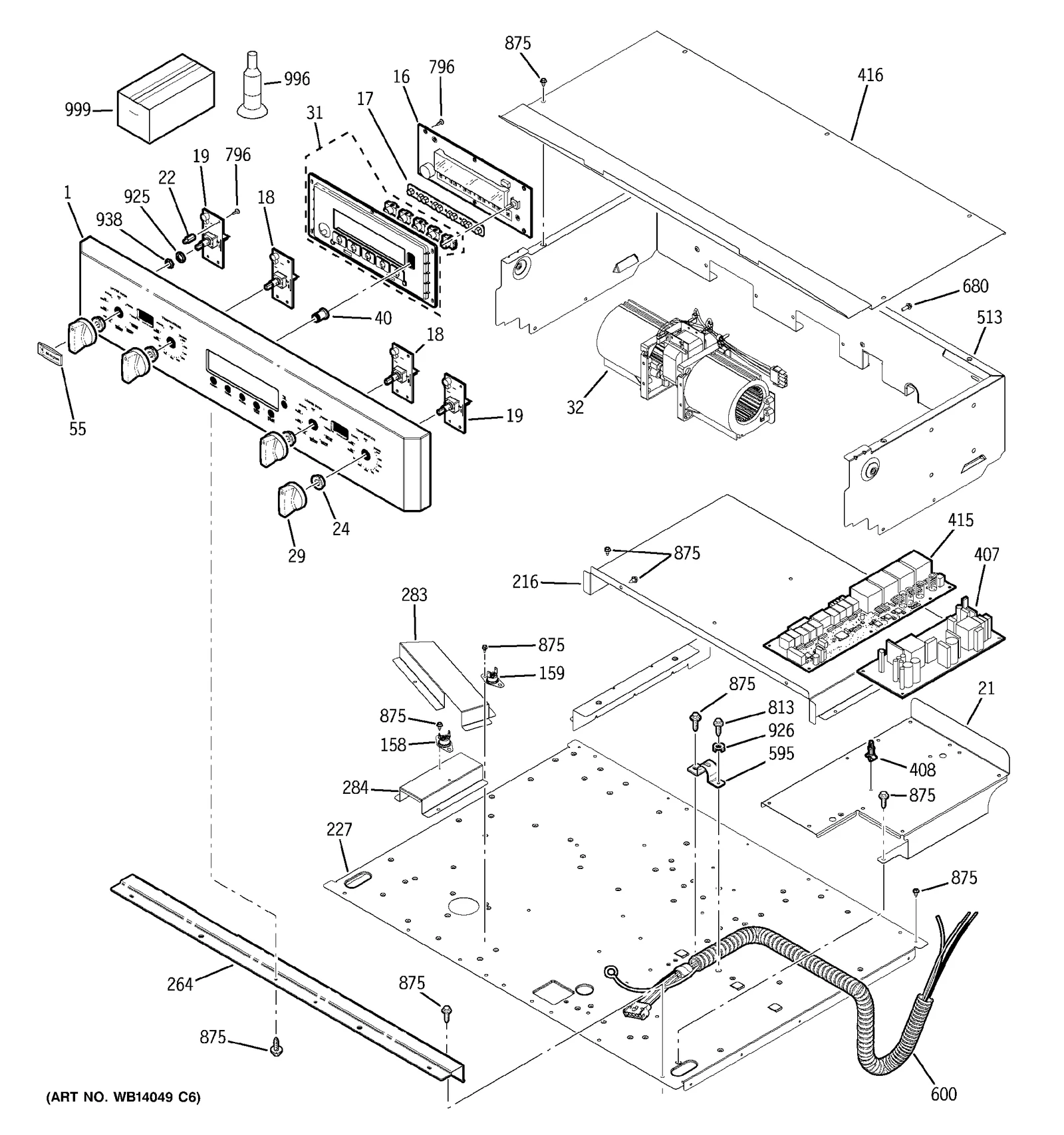

CONTROL PANEL
Parts in CONTROL PANEL
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PANEL CNTL ASM 30 MGM | - |
| 16 |  | BOARD ASM DISPLAY DWO | - |
| 17 |  | KEYPAD | - |
| 18 | | WB24T10128NLA ENCODER ASM MODE | Discontinued |
| 19 | | WB24T10129NLA ENCODER ASM TEMPERATURE | Discontinued |
| 21 | | BRACKET BOARD SUPT | - |
| 22 |  | STANDOFF | $7.95 ApplianceParts Pro |
| 24 | | BUSHING CNTL PANEL | - |
| 29 | | KNOB ASM METAL (SS) | - |
| 31 | | BUTTON ASM | - |
| 32 |  | WB26X31059replaces WB26T10054 FAN BLOWER | $63.28 Part Advantage |
| 40 |  | KNOB TIMER (SS) | - |
| 55 |  | BADGE MONOGRAM SMALL | $78.00 RepairClinic |
| 158 |  | CLEAN TCO | $12.57 ApplianceParts Pro |
| 159 |  | SWITCH LIMIT BIMETAL | $9.95 ApplianceParts Pro |
| 216 | | COVER TOP WIRE | - |
| 227 | | RETAINER INSLN TOP | - |
| 264 |  | TRIM VENT INNER (BK) | - |
| 283 |  | DUCT OVN EXHAUST | - |
| 284 |  | DUCT OVN EXHAUST | - |
| 407 | | BOARD ASM POWER SUPPLY | - |
| 408 |  | STANDOFF | - |
| 415 |  | BOARD ASM RELAY | $245.95 Parts Dr |
| 416 | | COVER FAN HOUSING | - |
| 513 | | HOUSING FAN | - |
| 595 |  | WB2K5126replaces WB02K5126 CONDUIT CLAMP | - |
| 600 |  | CONDUIT WIRE ASM 52" | - |
| 680 |  | WR1X1850replaces WR01X1850 SCR 7-19 HXW 1/2 | $7.95 ApplianceParts Pro |
| 796 | – | WB01X1178 SCREW | - |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 875 |  | WZ4X245Dreplaces WB01T10046 WZ4X245D | $24.32 ApplianceParts Pro |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 925 | | WASHER ENCODER | - |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 938 |  | NUT ENCODER | - |
| 996 |  | LUBRICANT CLEANER | $48.72 Parts Dr |
| 999 | – | 31-10662 PM INSTALL INSTRUCTIONS | - |
| 999 | – | 31-10842 PM INSTRUCTIONS INSTALL | - |
| 999 | – | 31-17002 PM MANUAL MINI & WD ASM | - |
| 999 | – | 49-80652 PM MANUAL USE & CARE | - |
