Model
GE ZET3058SH3SS
Electric Range
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET3058SH3SSElectric Range
11 diagrams187 parts
Parts Sections (11)
Diagram

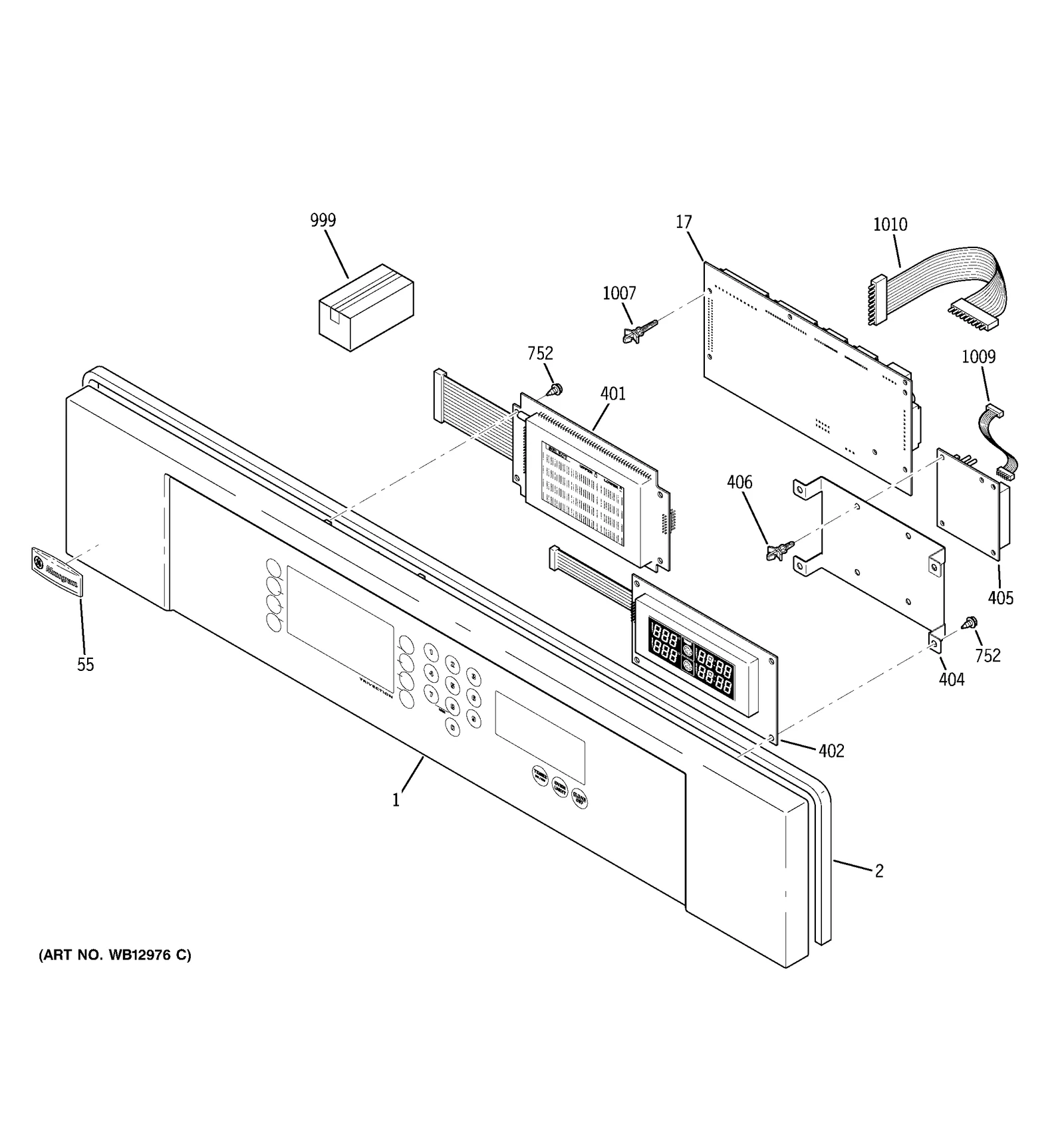

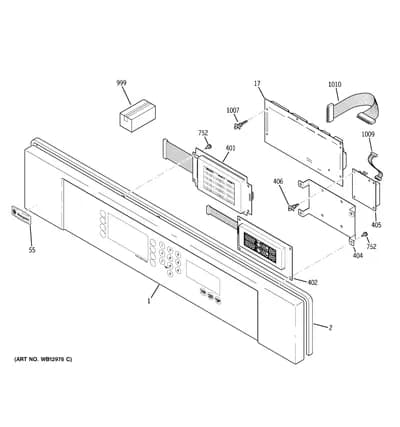

CONTROL PANEL
Parts in CONTROL PANEL
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PANEL CNTL ASM MGM | $2,008.73 PartSelect |
| 2 |  | SEAL AIR | - |
| 17 |  | BOARD ASM MAIN(WO-GE-MG) | - |
| 55 |  | BADGE MONOGRAM SMALL | $78.00 RepairClinic |
| 401 | | TEXT DISP BOARD | - |
| 402 |  | TEMP/TIME DISP BRD | - |
| 404 | | BRACKET QUANTUM WO | - |
| 405 |  | GLASS TOUCH SGNL BRD | $229.61 ApplianceParts Pro |
| 406 | | STANDOFF | - |
| 752 |  | WB1K5200replaces WB01K5200 SCREW | $7.95 ApplianceParts Pro |
| 999 | – | 31-14135 MANUAL MINI & WD ASM | - |
| 999 | – | 49-80215 COOKING GUIDE | - |
| 999 | – | 49-80348 MANUAL USE & CARE | - |
| 999 | | HARNESS MAIN LWR DWO | - |
| 999 | | HARNESS SAIL FAD RT | - |
| 999 |  | HARNESS GND HINGE RECEIV | - |
| 999 | | HARNESS INTERFACE DWO | - |
| 1007 | | STANDOFF | - |
| 1009 | | WB18T10294NLA HARNESS SHIELDED DISPLAY | Discontinued |
| 1010 | | HARNESS RIBBON CABLE | - |
