Model
GE ZET737WA3WW
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET737WA3WWElectric Range
5 diagrams121 parts
Parts Sections (5)
Diagram

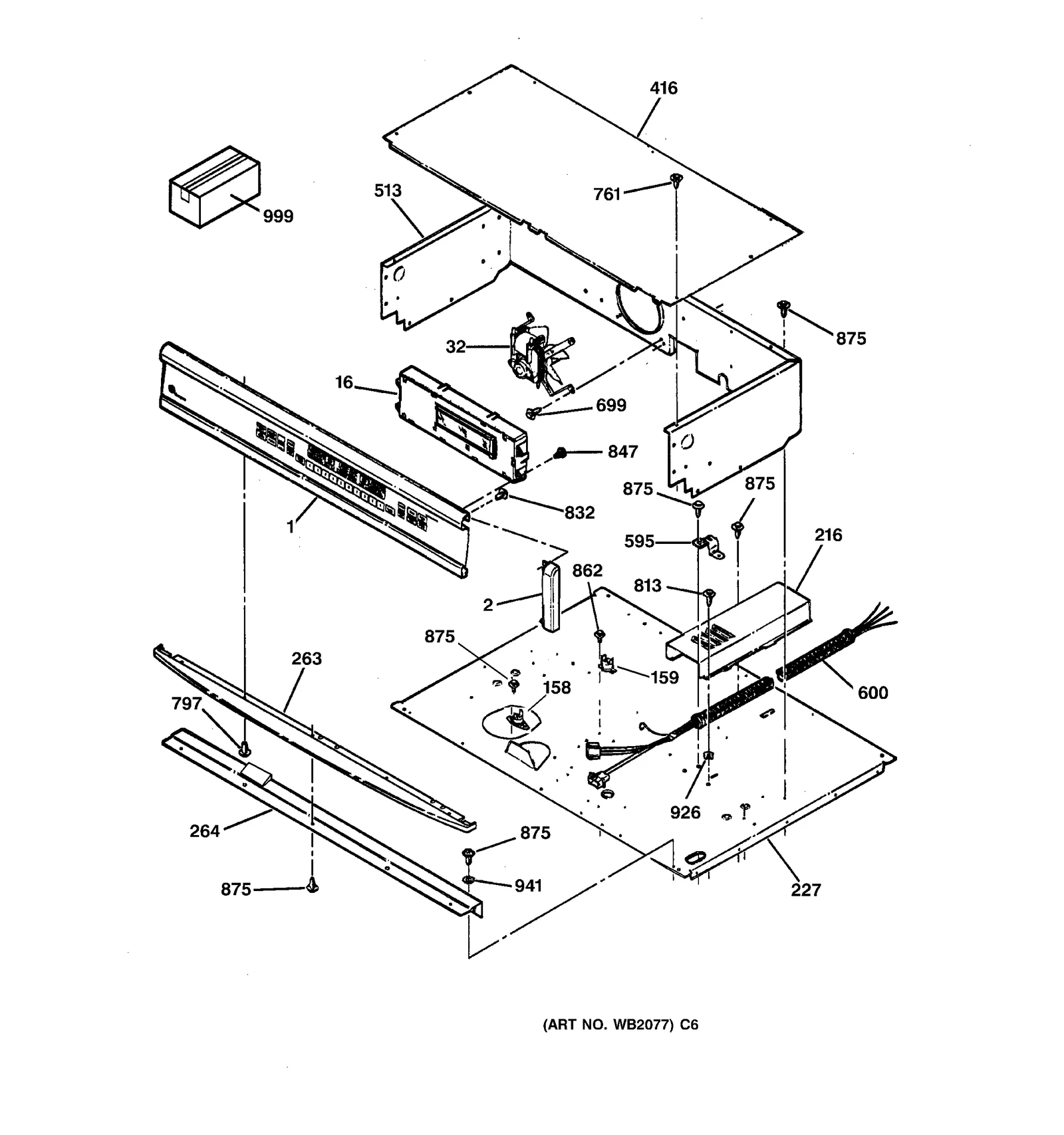

CONTROL PANEL
Parts in CONTROL PANEL
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WB36T10217NLA PANEL CNTL ASM (MON-WHT) | Discontinued |
| 2 | – | WB07K5314 END CAP-LT-WHITE-VENT | - |
| 2 | – | WB07K5315 END CAP-RT-WHITE-VENT | - |
| 2 | – | WB36K5516 END CAP-LT-WHT | - |
| 2 | | END CAP-RT-WHT | - |
| 16 | | OVEN CONTROL ERC3H | - |
| 32 |  | FAN ASSY UPPER | $136.30 Part Advantage |
| 32 |  | WB26K5069replaces WB26T10006 MOTOR FAN | $164.98 Parts Dr |
| 44 | – | WB02K5225 GROMMET STRIP (.020) | - |
| 71 | – | WB35T10042 INSULATION SHIELD | - |
| 71 | – | WB35T10043 INSULATION SHIELD | - |
| 80 | – | WB34T10024 HEAT SHIELD | - |
| 158 | | WB24T10033NLA SWITCH LIMIT | Discontinued |
| 159 | | SWITCH LIMIT | - |
| 216 | – | WB34K5216 TOP WIRE COVER | - |
| 227 | – | WB02T10082 RETAINER INSLN TOP | - |
| 263 | | WB7K5472replaces WB07K5472 I-BROW TRIM-WHITE | - |
| 264 | | INNER VENT TRIM | - |
| 416 | | COVER FAN HOUSING | - |
| 513 | – | WB26K5063 FAN HOUSING | - |
| 595 |  | WB2K5126replaces WB02K5126 CONDUIT CLAMP | - |
| 600 | – | WB18K5473 CONDUIT WIRE ASSY | - |
| 699 |  | WB1M1replaces WB01K5150 SCREW ST10-16 X 7/16" | $7.64 RepairClinic |
| 761 |  | WB1K5029replaces WB01K5029 SCREW | $7.95 ApplianceParts Pro |
| 761 |  | WB1K5185replaces WB01K5185 SCREW-WHITE | $7.37 ApplianceParts Pro |
| 796 |  | WB1K5116replaces WB01K5116 SCREW | $8.95 ApplianceParts Pro |
| 797 |  | WB1K5119replaces WB01K5119 SCREW | $7.18 Parts Dr |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 832 |  | WB1X1118replaces WB01X1158 SCREW-NICKEL | $7.18 RepairClinic |
| 847 | – | WB01K5161 SCREW-WHITE | - |
| 847 | | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 862 | – | WB01X1178 SCREW | - |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 925 |  | WB1K5117replaces WB01K5117 WASHER .250 ID X .812 OD | $14.95 ApplianceParts Pro |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 941 | – | WB01X1399 LOCKWASHER | - |
| 999 | – | 31-10125 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13647 MANUAL MINI & WD ASM | - |
| 999 | – | 49-8443 44-K006 | - |
| 999 | – | 49-8907 049-80059 | - |
| 999 | | WB18X32965replaces WB18K5490 DOOR SWITCH WIRE HARNESS | - |
| 999 | – | WB18T10108 HARNESS WIRE MAIN | - |
| 999 | – | WB18T10109 HARNESS WIRE F.O.D. | - |
| 999 | | HARNESS WIRE LCK MTR | - |
