Model
GE ZET757WA3WW
Electric Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET757WA3WWElectric Range
7 diagrams135 parts
Parts Sections (7)
Diagram

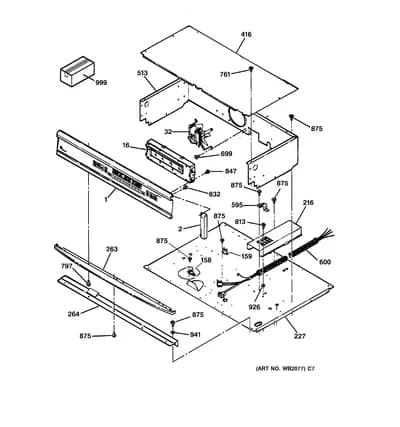

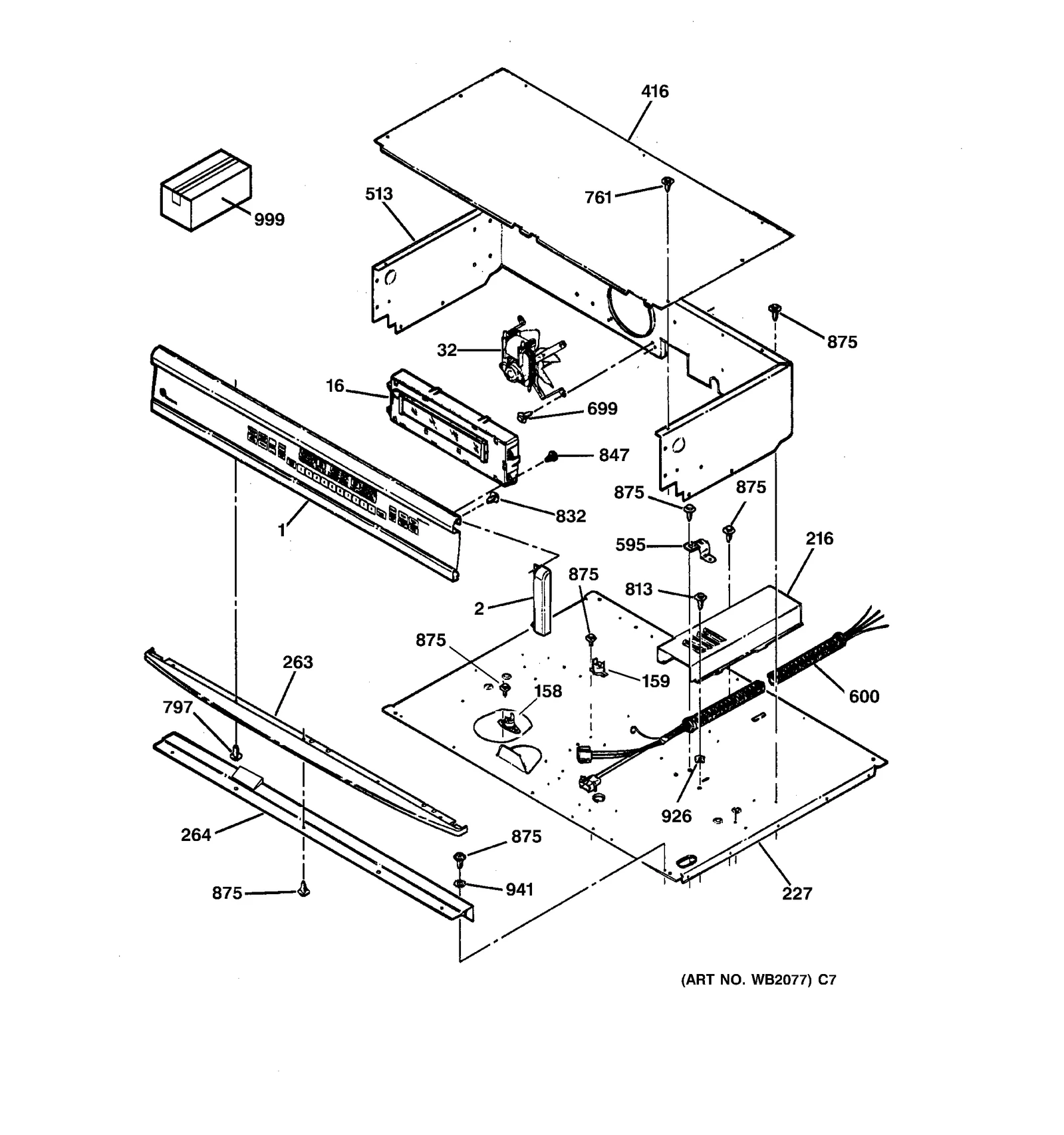

CONTROL PANEL
Parts in CONTROL PANEL
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WB36T10453replaces WB36T10211 PANEL CNTL ASM (MON-WHT) | - |
| 2 | – | WB07K5314 END CAP-LT-WHITE-VENT | - |
| 2 | – | WB07K5315 END CAP-RT-WHITE-VENT | - |
| 2 | – | WB07K5473 FILLER END CAP-RT-WHT | - |
| 2 | – | WB07K5474 FILLER END CAP-LT-WHT | - |
| 2 | – | WB36K5516 END CAP-LT-WHT | - |
| 2 | | END CAP-RT-WHT | - |
| 16 | – | WB27T10059 OVN CNTL (ERC3-D) | - |
| 32 |  | FAN ASSY UPPER | $136.30 Part Advantage |
| 32 |  | WB26K5069replaces WB26T10006 MOTOR FAN | $164.98 Parts Dr |
| 32 |  | WB26X114replaces WB26X0114 FAN ASM-TOP CABINET | $86.07 Part Advantage |
| 71 | – | WB35T10042 INSULATION SHIELD | - |
| 71 | – | WB35T10043 INSULATION SHIELD | - |
| 80 | – | WB34T10024 HEAT SHIELD | - |
| 158 | | WB24T10033NLA SWITCH LIMIT | Discontinued |
| 159 | | SWITCH LIMIT | - |
| 216 | – | WB34K5216 TOP WIRE COVER | - |
| 227 | – | WB02T10082 RETAINER INSLN TOP | - |
| 263 | | WB7K5472replaces WB07K5472 I-BROW TRIM-WHITE | - |
| 264 | | INNER VENT TRIM | - |
| 416 | | COVER FAN HOUSING | - |
| 513 | – | WB26K5063 FAN HOUSING | - |
| 595 |  | WB2K5126replaces WB02K5126 CONDUIT CLAMP | - |
| 600 | | CONDUIT WIRE HARNESS | - |
| 699 |  | WB1M1replaces WB01K5150 SCREW ST10-16 X 7/16" | $7.64 RepairClinic |
| 761 |  | WB1K5029replaces WB01K5029 SCREW | $7.95 ApplianceParts Pro |
| 761 |  | WB1K5185replaces WB01K5185 SCREW-WHITE | $7.37 ApplianceParts Pro |
| 797 |  | WB1K5119replaces WB01K5119 SCREW | $7.18 Parts Dr |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 832 |  | WB1X1118replaces WB01X1158 SCREW-NICKEL | $7.18 RepairClinic |
| 847 | – | WB01K5161 SCREW-WHITE | - |
| 847 | | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 925 |  | WB1K5117replaces WB01K5117 WASHER .250 ID X .812 OD | $14.95 ApplianceParts Pro |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 941 | – | WB01X1399 LOCKWASHER | - |
| 999 | – | 31-10125 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13726 MANUAL MINI & WD ASM | - |
| 999 | – | 49-8443 44-K006 | - |
| 999 | – | 49-8907 049-80059 | - |
| 999 | | WB18X32965replaces WB18K5490 DOOR SWITCH WIRE HARNESS | - |
| 999 | | WIRE HARNESS F.O.D. | - |
| 999 | – | WB18T10114 HARNESS WIRE MAIN | - |
| 999 | – | WB18T10115 HARNESS WIRE MAIN LWR | - |
| 999 | | HARNESS WIRE LCK MTR | - |
