Model
GE ZET757WW2WW
Electric Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET757WW2WWElectric Range
7 diagrams132 parts
Parts Sections (7)
Diagram

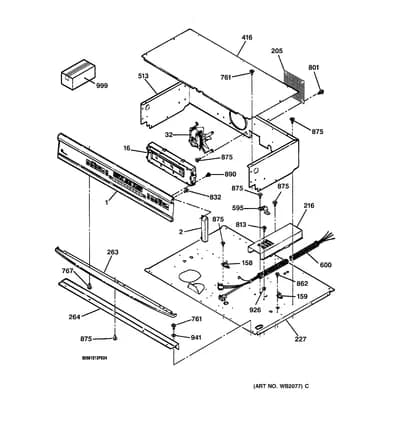

CONTROL PANEL
Parts in CONTROL PANEL
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PANEL W/KYPD+CAPS-WHT | - |
| 2 | – | WB07K5314 END CAP-LT-WHITE-VENT | - |
| 2 | – | WB07K5315 END CAP-RT-WHITE-VENT | - |
| 2 | – | WB07K5473 FILLER END CAP-RT-WHT | - |
| 2 | – | WB07K5474 FILLER END CAP-LT-WHT | - |
| 2 | – | WB36K5516 END CAP-LT-WHT | - |
| 2 | | END CAP-RT-WHT | - |
| 16 | | WB27K5321NLA CLOCK/OVEN CONTROL | Discontinued |
| 32 |  | FAN ASSY UPPER | $136.30 Part Advantage |
| 32 |  | WB26X114replaces WB26X0114 FAN ASM-TOP CABINET | $86.07 Part Advantage |
| 158 | | WB24K5127NLA LIMIT SWITCH | Discontinued |
| 159 | | WB24K5126NLA SWITCH LIMIT | Discontinued |
| 205 | | WB6K5026replaces WB06K5026 SMOKE ELIM SCREEN | - |
| 205 | | WB6K5041replaces WB06K5041 FAN HOUSING SCREEN | - |
| 216 | – | WB34K5216 TOP WIRE COVER | - |
| 227 | – | WB02K5387 RETAINER INSLN TOP | - |
| 263 | | WB7K5472replaces WB07K5472 I-BROW TRIM-WHITE | - |
| 264 | | WB07K5308NLA VENT TRIM-INNER-BLK-UPPR | Discontinued |
| 416 | | COVER FAN HOUSING | - |
| 513 | – | WB26K5063 FAN HOUSING | - |
| 595 |  | WB2K5126replaces WB02K5126 CONDUIT CLAMP | - |
| 600 | | CONDUIT WIRE HARNESS | - |
| 761 |  | WB1K5029replaces WB01K5029 SCREW | $7.95 ApplianceParts Pro |
| 761 |  | WB1K5185replaces WB01K5185 SCREW-WHITE | $7.37 ApplianceParts Pro |
| 801 |  | WB1M1replaces WB01M0001 SCREW | $7.64 RepairClinic |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 832 |  | WB1X1118replaces WB01X1158 SCREW-NICKEL | $7.18 RepairClinic |
| 832 | | WB1X1118replaces WB01X1180 SCREW-BLACK | $7.18 RepairClinic |
| 862 | – | WB01X1178 SCREW | - |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 890 | | WB1X1118replaces WB01M0027 SCREW ST 6-20X.437 TR | $7.18 RepairClinic |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 941 | – | WB01X1399 LOCKWASHER | - |
| 999 | – | 31-10125 INSTALLATION INSTRUCTION | - |
| 999 | – | 31-13343 MINI MANUAL W/WIRE DIAG. | - |
| 999 | – | 49-8443 44-K006 | - |
| 999 | – | 49-8742 USE & CARE MANUAL | - |
