Model
GE ZET837BYBB
Electric Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET837BYBBElectric Range
5 diagrams109 parts

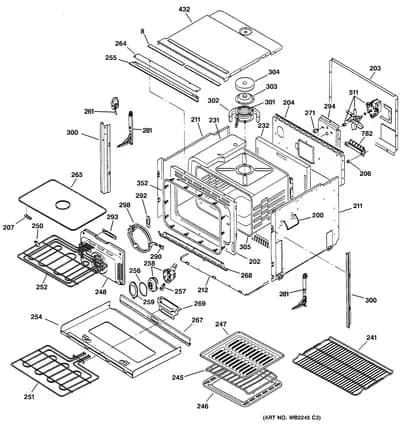

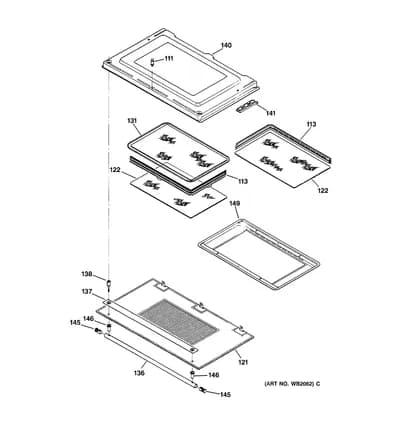

Parts Sections (5)
Diagram

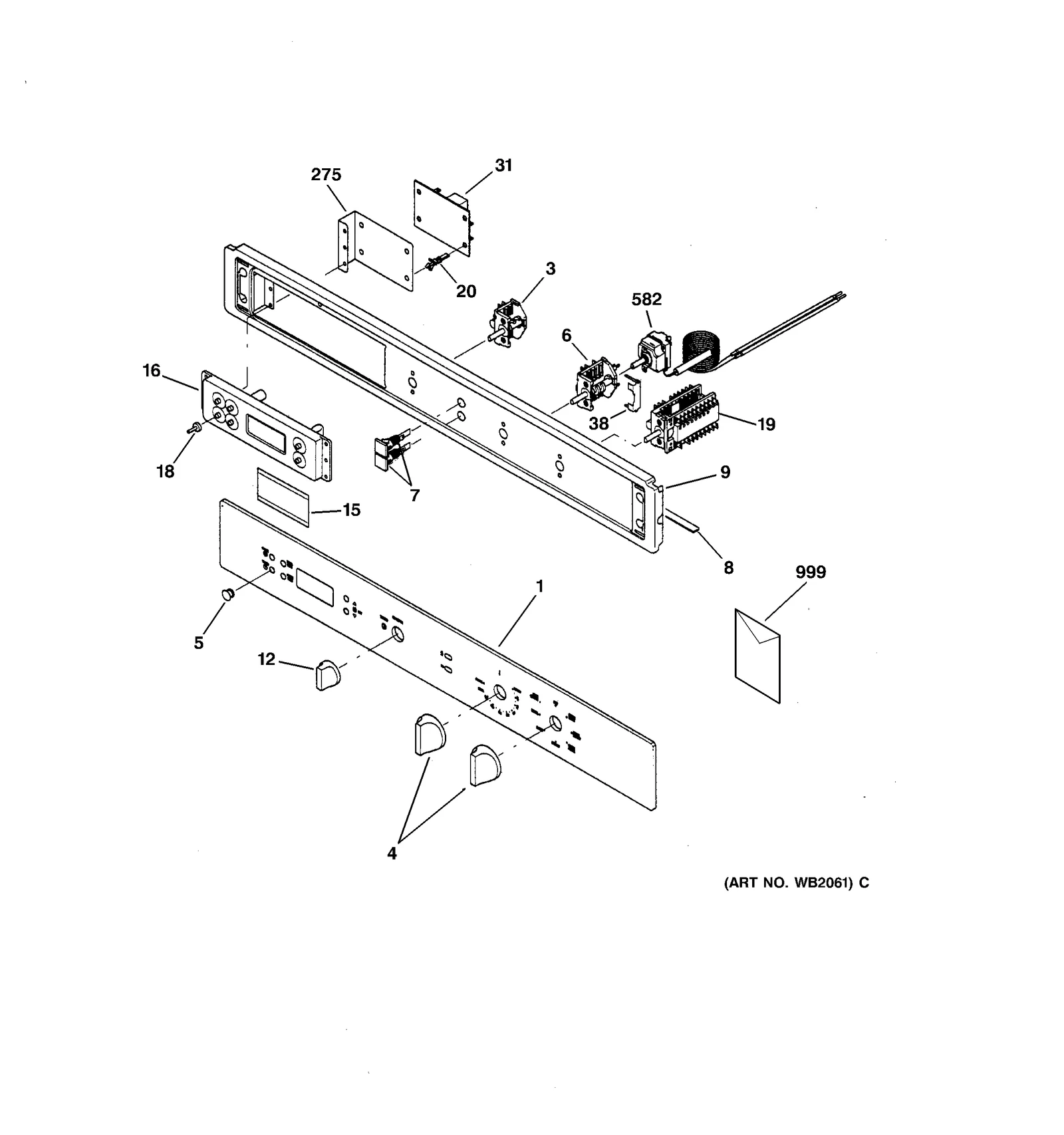

CONTROL PANEL
Parts in CONTROL PANEL
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | WB07X10065 CONTROL PANEL BLK | - |
| 3 |  | MANUAL CONTROL SWITCH | $53.51 RepairClinic |
| 4 | | KNOB LARGE BK | - |
| 5 | | TIMER PUSH BUTTON BLK | - |
| 6 | | MAIN CONTROL SWITCH | - |
| 7 | | WH PILOT LAMP | - |
| 8 |  | SEAL | - |
| 9 | – | WB07X10067 BLK COMPONENTS SUPPORT | - |
| 9 | – | WB07X10068 SILVER COMPONENT SUPPORT | - |
| 12 | | KNOB SMALL BK | - |
| 15 | – | WB02X10494 FILTER/TIMER | - |
| 16 | | TIMER ELECTRONIC | - |
| 18 |  | TIMER ROD | - |
| 19 | | WB24X10010NLA MAIN SWITCH | Discontinued |
| 20 | – | WB02X10411 SPACER CIRCUIT | - |
| 31 | | RELAY BOARD | - |
| 38 | | THERMO BKT | - |
| 275 | | WB02X10408NLA SUPPORT RELAY BOARD | Discontinued |
| 582 | | WB21X10016NLA THERMOSTAT VARIABLE | Discontinued |
| 999 | – | 31-20447 MINI MANUAL | - |
| 999 | – | 49-8778 USE AND CARE | - |
| 999 | – | 49-8791 INSTALLATION INST | - |
| 999 |  | WR04X24243replaces WB02X10497 GE LOGO | - |
