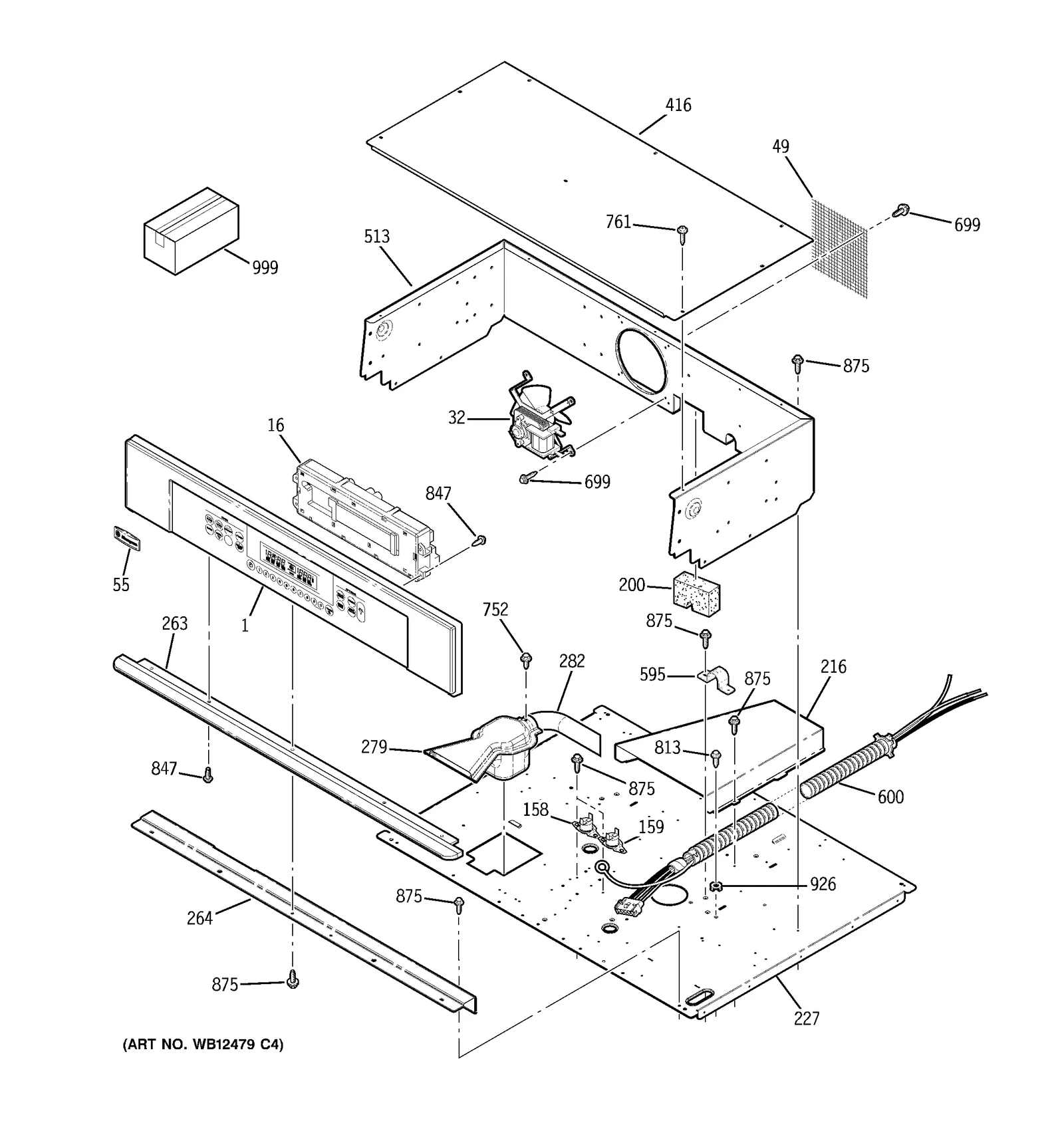

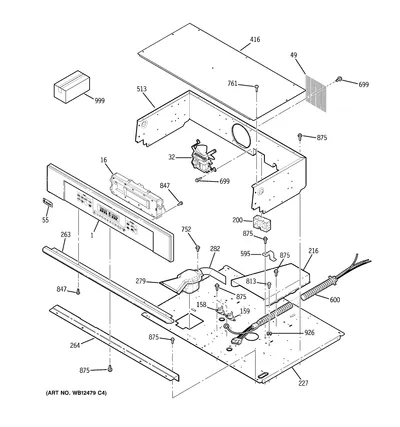

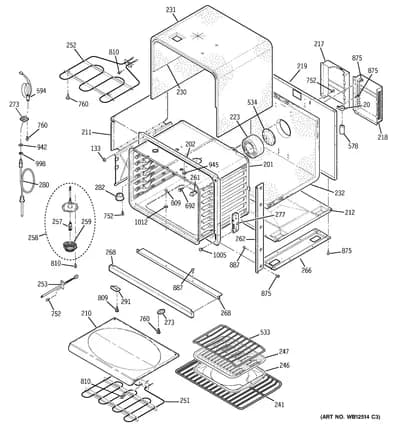

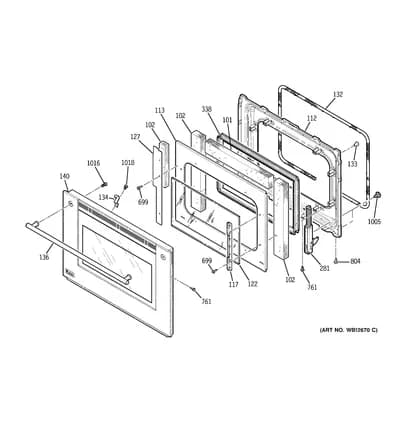

CONTROL PANEL
Parts in CONTROL PANEL
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PANEL CNTL ASM | - |
| 16 |  | OVEN CONTROL (CLOCK) | $529.02 PartSelect |
| 32 |  | FAN ASM - CONTROL UPPER | $115.90 Part Advantage |
| 49 |  | SCREEN FAN | - |
| 55 |  | BADGE MONOGRAM SMALL | $78.00 RepairClinic |
| 158 | | WB24T10076NLA SWITCH LIMIT BIMETAL | Discontinued |
| 159 |  | LIMIT SWITCH-UPPER(LOCK) | $9.07 Part Advantage |
| 200 | – | WB02T10168 PLUG FOAM | - |
| 216 |  | COVER WIRE TOP | - |
| 227 |  | WB02T10343replaces WB02T10144 RETAINER INSLN TOP CENTER | - |
| 263 | – | WB07T10383 TRIM I-BROW (WHT) | - |
| 264 | | TRIM VENT INR (BLACK) LWR | $37.39 RepairClinic |
| 279 |  | BOX VENT ASSY | - |
| 282 |  | WB38X33650replaces WB28T10073 TUBE VENT | $15.59 ApplianceParts Pro |
| 282 | | DUCT VNT INLET | - |
| 416 | | COVER FAN HOUSING | - |
| 513 | | WB26T10014NLA HOUSING FAN | Discontinued |
| 595 |  | WB2K5126replaces WB02K5126 CONDUIT CLAMP | - |
| 600 | | CONDUIT WIRE ASM | - |
| 699 |  | WB1M1replaces WB01K5150 SCREW ST10-16 X 7/16" | $7.64 RepairClinic |
| 752 |  | WB1K5200replaces WB01K5200 SCREW | $7.95 ApplianceParts Pro |
| 761 |  | WB1K5029replaces WB01K5029 SCREW | $7.95 ApplianceParts Pro |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 847 |  | WB1K5167replaces WB01K5167 SCREW 8-18 X 3/8" | - |
| 847 | | WB1X1317replaces WB01X1317 SCREW-BLACK | - |
| 875 |  | WZ4X245Dreplaces WB01T10046 WZ4X245D | $24.32 ApplianceParts Pro |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 999 | – | 31-10514 INSTRUCTION SHEET | - |
| 999 | – | 31-10524 INSTRUCTION INSTALL | - |
| 999 | – | 31-10551 INSTRUCTION INSTALL | - |
| 999 | – | 31-14021 MANUAL MINI & WD ASM | - |
| 999 | – | 49-80135 MANUAL USE & CARE | - |
| 999 | – | WB18T10365 RIBBON CONNECTOR GLS TCH | - |
