Model
GE ZET9550SH6SS
Electric Range
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET9550SH6SSElectric Range
9 diagrams134 parts
Parts Sections (9)
Diagram

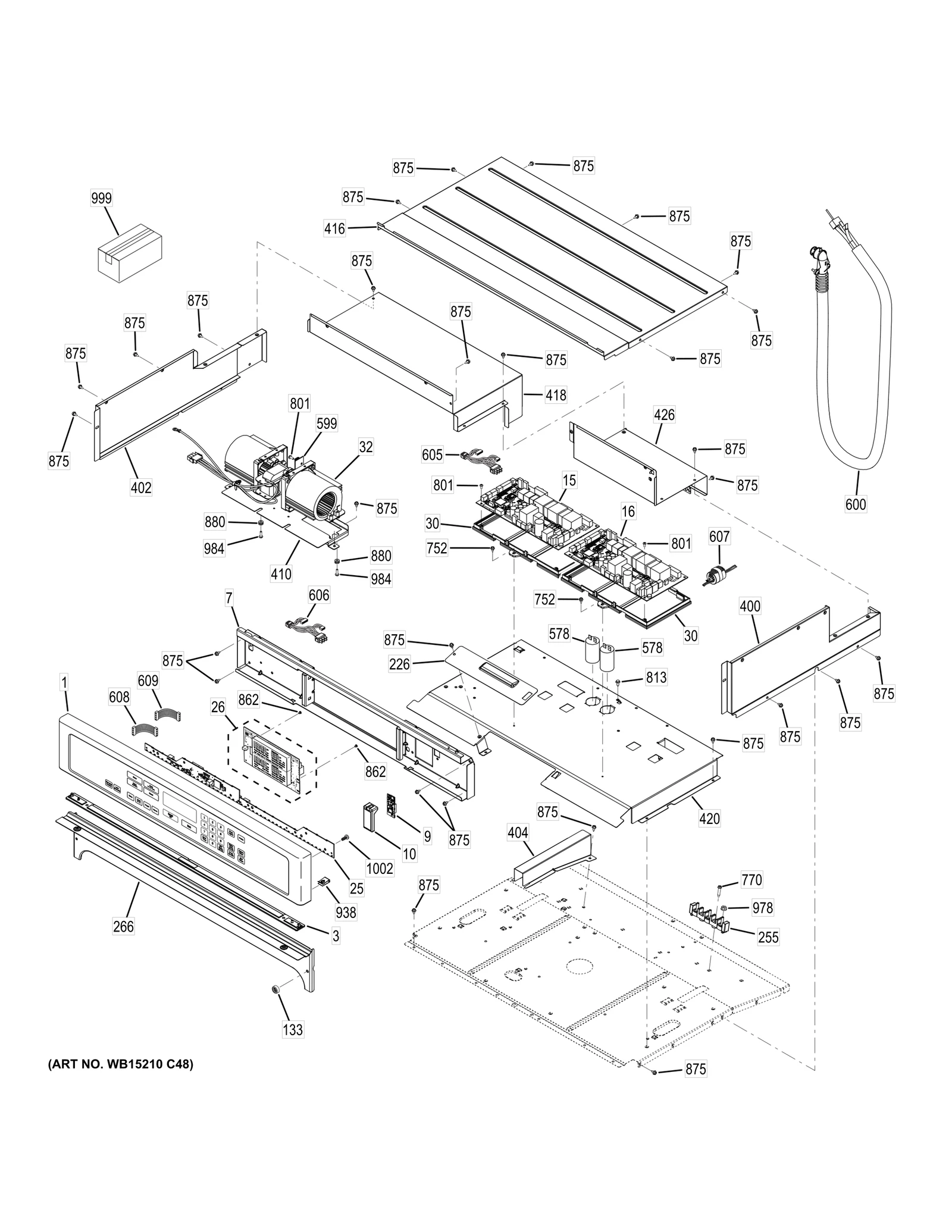

CONTROL PANEL
Parts in CONTROL PANEL
49 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | CONTROL PANEL GLASS ASM | - |
| 3 |  | DIFFUSER AND TAPE ASM | - |
| 7 |  | CONTROL PANEL MOUNTING BRACKET | - |
| 9 |  | WB27X33353replaces WB27X29798 BOARD WIFI CAT MODULE | $45.59 Parts Dr |
| 10 |  | HOUSING TRANSCEIVER | - |
| 15 |  | BOARD MACHINE CONTROL UPPER | $147.27 Part Advantage |
| 16 |  | BOARD MACHINE CONTROL | $147.99 Parts Dr |
| 25 |  | BOARD LED LIGHTS WHITE | $117.27 RepairClinic |
| 26 |  | CONTROL BOARD AND OVERLAY ASM WHITE LED | $171.04 Parts Dr |
| 30 |  | FRAME BOARD - PLASTIC | - |
| 32 |  | COOLING FAN | $57.92 Part Advantage |
| 133 |  | BUMPER DOOR | - |
| 226 |  | COVER LATCH ACCESS | - |
| 255 |  | WB17K10001replaces WB17T10024 BLOCK TERMINAL | - |
| 266 |  | TRIM VENT UPPER BLACK | - |
| 400 |  | COVER TOP RIGHT EDGE | - |
| 402 |  | COVER TOP LEFT EDGE | - |
| 404 |  | CHANNEL UPPER AIR VENT | - |
| 410 |  | BRACKET UPPER FAN MOUNT | $33.43 ApplianceParts Pro |
| 416 |  | COVER HOUSING FRT | - |
| 418 |  | WB34X32773replaces WB34T10157 COVER TOP REAR | - |
| 420 |  | AIR DIVIDER | - |
| 426 |  | COVER WIRE REAR | - |
| 578 |  | CAPACITOR MOTOR | $13.49 Parts Dr |
| 599 |  | BOARD FAN SENSOR | $42.98 Part Advantage |
| 600 |  | WB18X33486replaces WB18X30601 CONDUIT WIRE ASM | $68.86 ApplianceParts Pro |
| 600 |  | OPTIONAL 6 FT CONDUIT | - |
| 605 |  | HARNESS WIRE MAIN | - |
| 606 |  | HARNESS WIRE LATCH COM | - |
| 606 | | LATCH COM HARNESS WIRE | - |
| 607 | | HARNESS WIRE COM | - |
| 608 |  | HARNESS WIRE LED JUMPER | - |
| 609 |  | HARNESS WIRE DISPLA-WIFI | - |
| 752 |  | WB1K5200replaces WB01K5200 SCREW | $7.95 ApplianceParts Pro |
| 770 |  | WB1K5072replaces WB01K5072 SCREW | - |
| 801 |  | 6-19 X 1/4 TORX PAN HEAD | $7.95 ApplianceParts Pro |
| 813 |  | SCR 10-32 GX HXW 7/16 S | - |
| 862 | – | WB01X1178 SCREW | - |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 880 |  | GROMMET | $7.37 ApplianceParts Pro |
| 938 |  | WB1K5209replaces WB01K5209 CLIP | - |
| 978 | – | WB01X1259 HEX NUT | - |
| 984 |  | SCREW 7-19 1/4HEX 1/2IN | $0.84 RepairClinic |
| 999 | – | 49-80597 MANUAL U&C TIP SHEET | - |
| 999 | – | 31-10957 PM INSTALL INSTRUCTIONS | - |
| 999 |  | LUBRICANT CLEANER | $48.72 Parts Dr |
| 999 | – | 31-10882 INSTRUCTION INSTALL | - |
| 999 | – | 49-80824 PM OWNERS MANUAL | - |
| 1002 |  | SCR 8-18 B PNP 3/8 S ZN | - |
