Model
GE ZET958SM1SS
Electric Range
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZET958SM1SSElectric Range
7 diagrams120 parts
Parts Sections (7)
Diagram

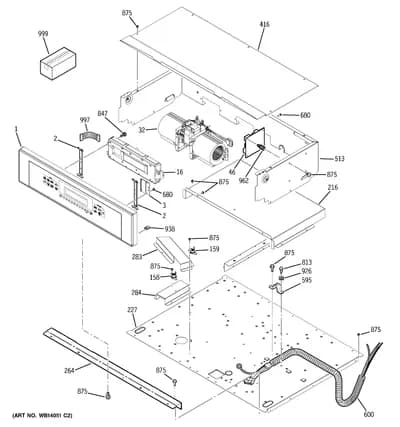

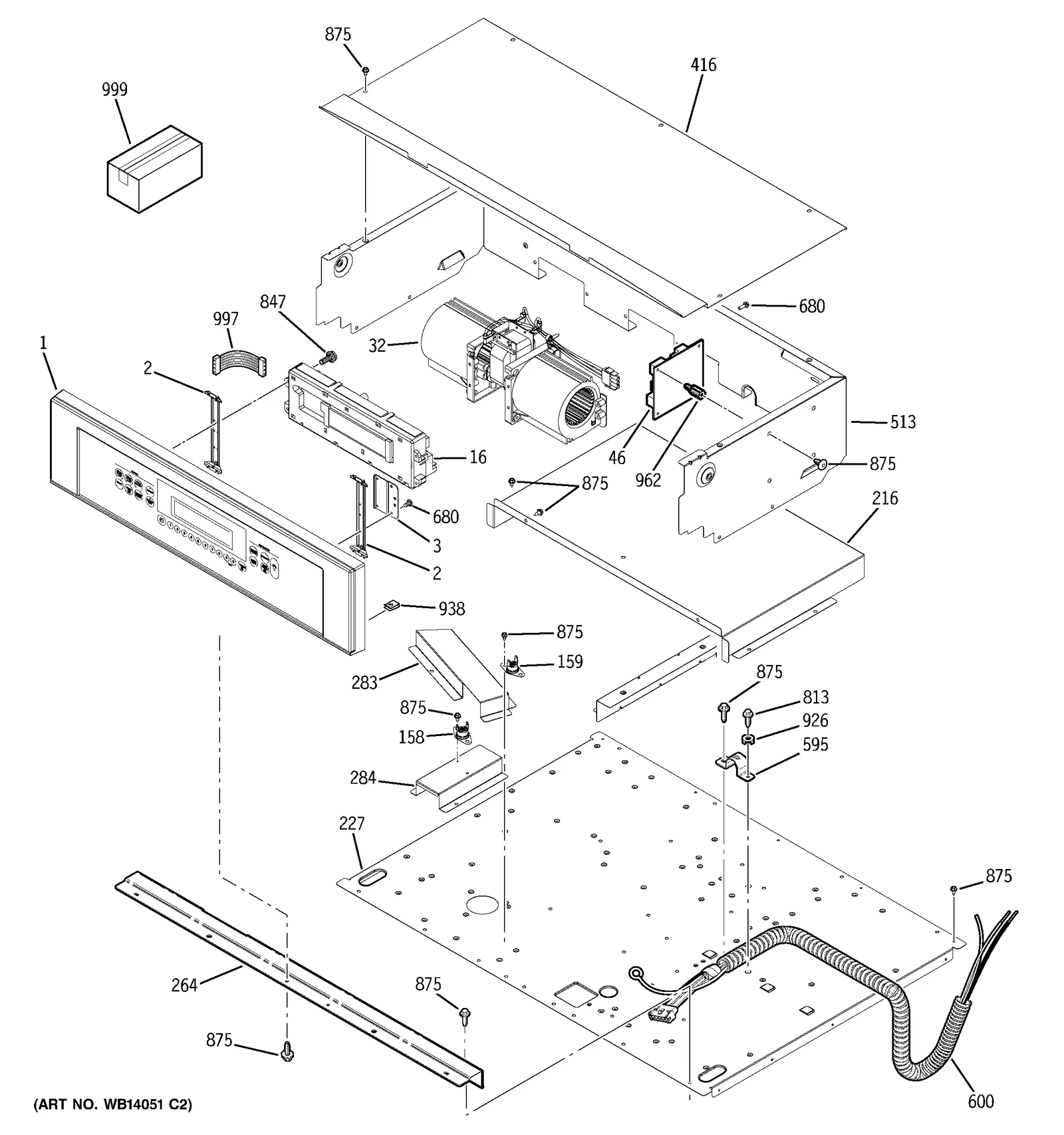

CONTROL PANEL
Parts in CONTROL PANEL
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PANEL CNTL TAPE ASM | - |
| 2 |  | BRACKET CNTL MTG | - |
| 3 | | BRACKET OFFSET | - |
| 16 | | CONTROL ERC DDHE 30 MG | - |
| 32 |  | WB26X10264replaces WB26T10048 FAN BLOWER | $103.67 Part Advantage |
| 46 |  | BOARD PC (ERC) | - |
| 158 |  | SWITCH LIMIT BIMETAL | $14.00 Parts Dr |
| 159 |  | LIMIT SWITCH-UPPER(LOCK) | $9.07 Part Advantage |
| 216 | | COVER TOP WIRE | - |
| 227 |  | RETAINER INSLN TOP | - |
| 264 |  | TRIM VENT INNER (BK) | - |
| 283 |  | DUCT OVN EXHAUST | - |
| 284 |  | DUCT OVN EXHAUST | - |
| 416 | – | WB02T10396 COVER FAN HOUSING | - |
| 513 | | HOUSING FAN | - |
| 595 |  | WB2K5126replaces WB02K5126 CONDUIT CLAMP | - |
| 600 |  | CONDUIT WIRE ASM | - |
| 680 |  | WR1X1850replaces WR01X1850 SCR 7-19 HXW 1/2 | $7.95 ApplianceParts Pro |
| 813 |  | WB1X1261replaces WB01X1261 SCREW GROUND | $7.94 RepairClinic |
| 847 |  | SCR 6-20 GXB IHXW 3/8 NI | $9.59 ApplianceParts Pro |
| 875 |  | WZ4X245Dreplaces WB01T10046 WZ4X245D | $24.32 ApplianceParts Pro |
| 875 |  | WH2X930replaces WH02X0930 SCREW 8-18 AB HXW 3/8 | $7.11 Parts Dr |
| 926 | | WB1X1260replaces WB01X1260 GROUND WASHER | - |
| 938 |  | WB1K5209replaces WB01K5209 CLIP | - |
| 962 | | STANDOFF CIRCUIT BOARD | - |
| 997 |  | RIBBON CONNECTOR GLS TCH | - |
| 999 | – | 31-10645 INSTRUCTION INSTALL | - |
| 999 | – | 31-10647 INSTRUCTION INSTALL | - |
| 999 | – | 31-10662 PM INSTALL INSTRUCTIONS | - |
| 999 | – | 31-14748 MANUAL MINI & WD ASM | - |
| 999 | – | 49-80435 MANUAL USE & CARE | - |
