Model
GE ZGU48N4GD2SS
Gas Range Or Dual Fuel
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZGU48N4GD2SSGas Range Or Dual Fuel
4 diagrams77 parts
Parts Sections (4)
Diagram

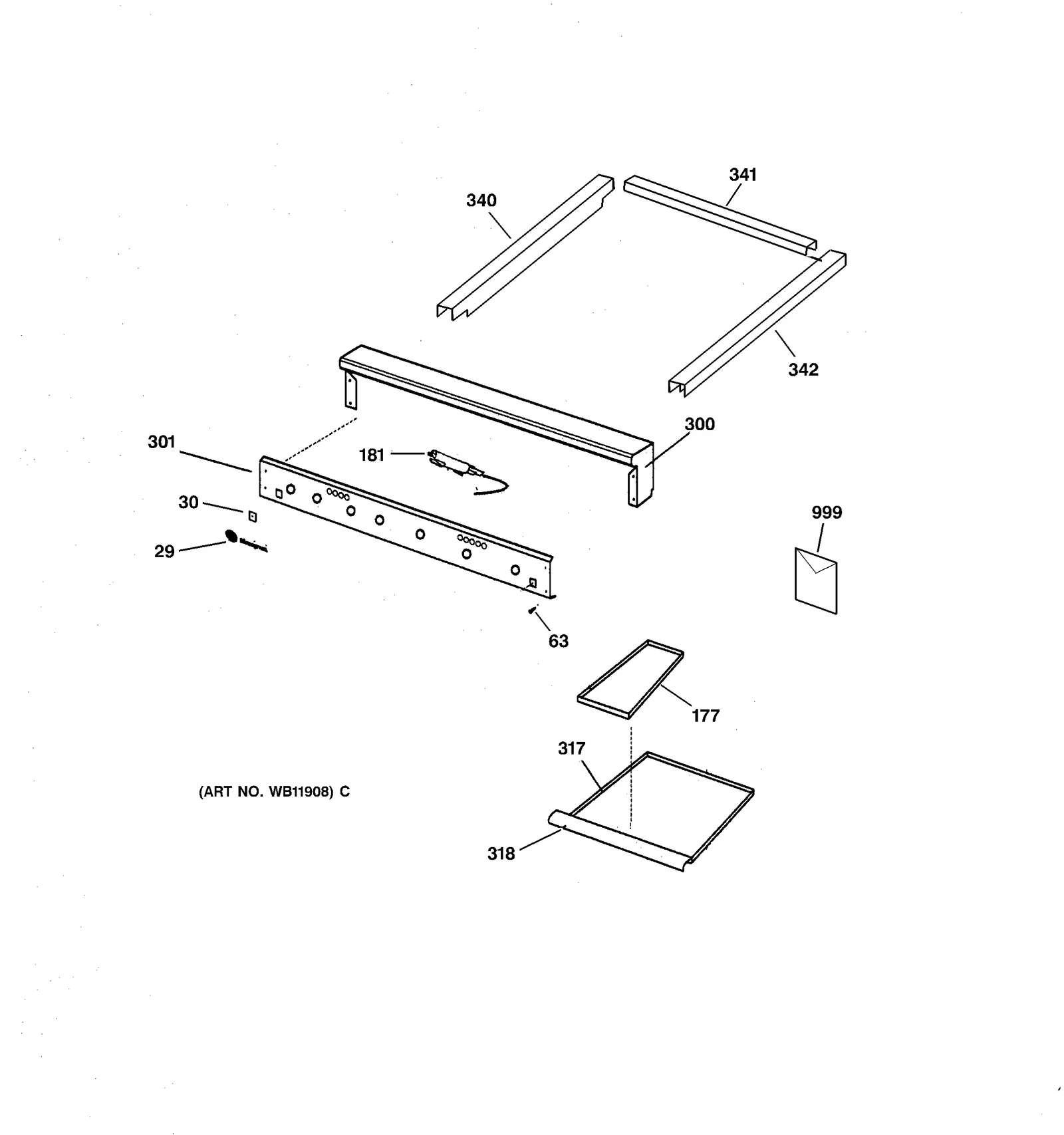

ESCUTCHEON & TRIM
Parts in ESCUTCHEON & TRIM
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 29 | – | WB02X10353 MONOGRAM LOGO | - |
| 30 |  | WR01X10300replaces WB01X10070 CLIP LOGO | - |
| 63 |  | SCR 8-32X1" TX FL HD | - |
| 177 | – | WB32X5114 DRIP PAN LINER | - |
| 181 | | WB02X8610NLA INDICATOR LIGHT | Discontinued |
| 300 | – | WB07X7364 LANDING LEDGE | - |
| 301 | – | WB07X10190 VALVE PANEL | - |
| 317 | – | WB15X10050 DRIP PAN R.H. | - |
| 317 | | DRIP PAN L.H. | - |
| 318 | – | WB15X10051 HANDLE DRIP PAN | - |
| 340 | – | WB07X10367 TRIM SIDE L.H. | - |
| 341 | | TRIM BACK | - |
| 342 | – | WB07X10366 TRIM SIDE R.H. | - |
| 999 | – | 31-20423 MINI MANUAL | - |
| 999 | – | 49-80072-1 USE & CARE MANUAL | - |
| 999 | – | 49-8787 INSTALLATION INSTRUCTION | - |
