Model
GE ZGU48N6DH4SS
Gas Range Or Dual Fuel
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZGU48N6DH4SSGas Range Or Dual Fuel
5 diagrams98 parts
Parts Sections (5)
Diagram

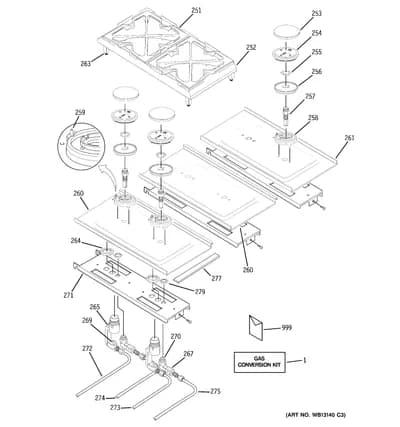

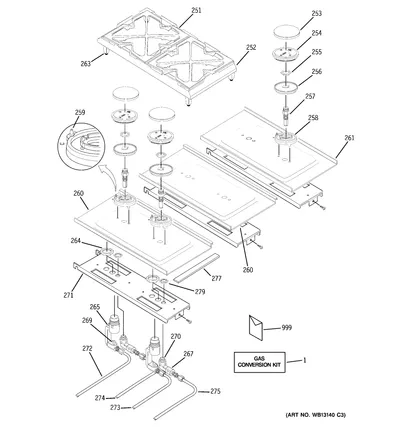

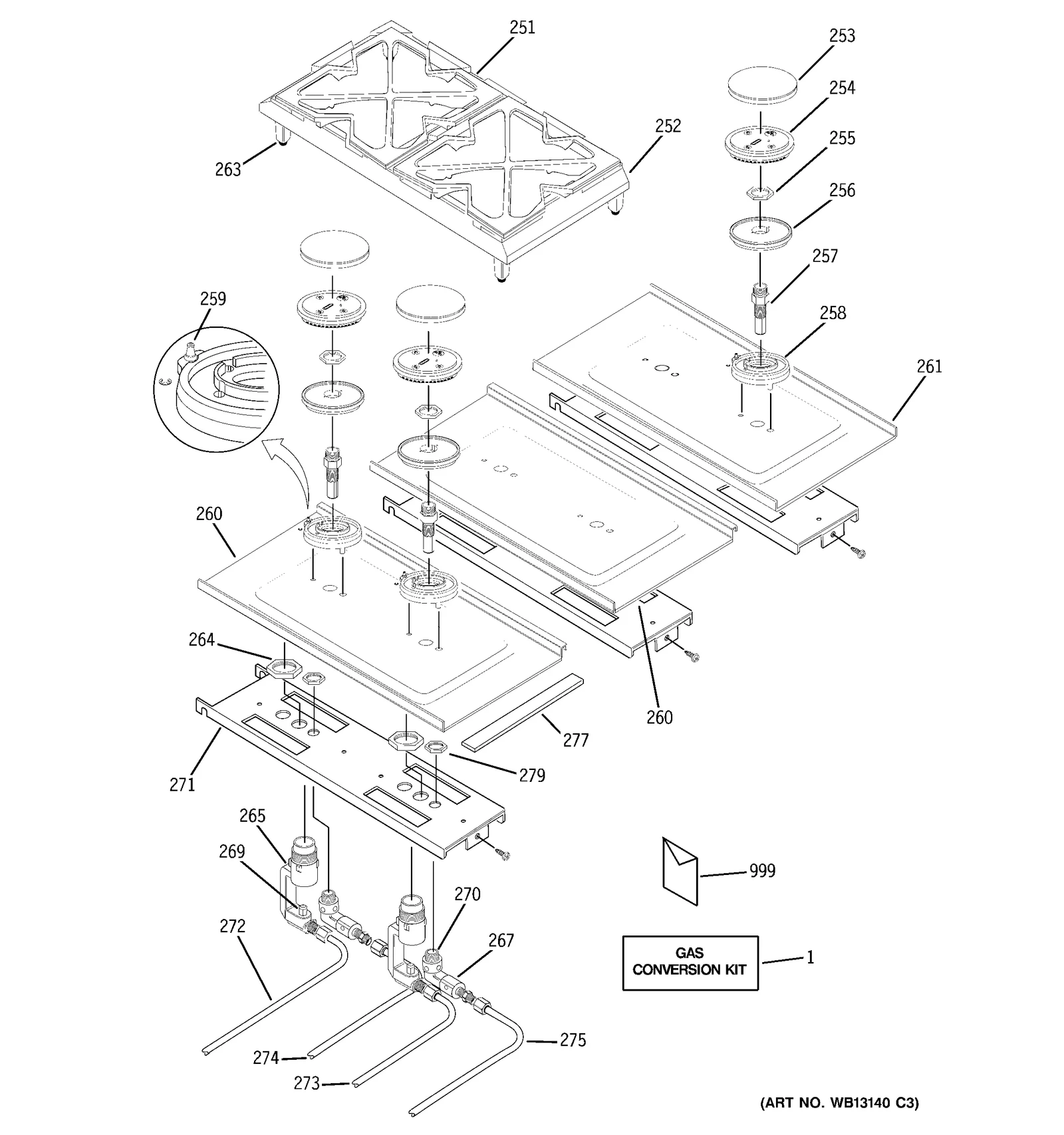

GAS & BURNER PARTS
Parts in GAS & BURNER PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | HIGH ALTITUDE CONVERSION | - |
| 1 | | WB49X10132NLA NAT/LP CONVERSION KIT | Discontinued |
| 1 |  | LP/NAT CONVERSION KIT | - |
| 251 | | WB31X10004NLA GRATE, WOK INSERT | Discontinued |
| 252 | | GRATE SUPPORT | - |
| 253 |  | BURNER CAP (PORCELAIN) | $55.82 RepairClinic |
| 254 |  | WB16X27935replaces WB32X10047 D PORT RING | - |
| 255 | | WB01X10321NLA NUT CHAMFER | Discontinued |
| 256 |  | WB31X10010replaces WB22X10012 D SIMMER RING | - |
| 257 |  | WB38X10080NLA VENTURI, CHAMFERED | Discontinued |
| 258 | | WB16X10020NLA BURNER BASE ASSY | Discontinued |
| 259 |  | WB02X10822replaces WB02X10780 IGNITOR | $86.71 Part Advantage |
| 260 | | WB32X10071NLA BURNER PAN R/S FLANGE | Discontinued |
| 261 |  | WB32X10072replaces WB32X10055 BURNER PAN L/S FLANGE | $189.42 PartSelect |
| 263 | | WB02X11169replaces WB02X11095 FOOT, RUBBER | $8.92 Parts Dr |
| 264 | | WB01X10139NLA NUT, JET HOLDER, MAIN | Discontinued |
| 265 | | JET HOLDER, MAIN, D, 15K | Discontinued |
| 267 | – | WB16X10009 JET HOLDER, SIMMER (NAT) | - |
| 269 | | WB21X10112NLA ORIFICE MAIN (NAT) | Discontinued |
| 270 | | WB21X10113NLA ORIFICE SIMMER (NAT) | Discontinued |
| 271 |  | BRACKET, BURNER HANGER | - |
| 272 | | WB28X10064NLA TUBING, MAIN REAR | Discontinued |
| 273 |  | WB28X10065NLA TUBING, MAIN FRONT | Discontinued |
| 274 | | WB28X10066NLA TUBING, SIMMER REAR | Discontinued |
| 275 | | WB28X10067NLA TUBING, SIMMER FRONT | Discontinued |
| 277 | – | WB04X10030 GASKET, BURNER PAN | - |
| 279 | | WB01X10140NLA NUT, JET HOLDER, SIM | Discontinued |
| 999 | – | 31-20792 MINI-MANUAL | - |
| 999 | – | 49-80219 USE & CARE | - |
| 999 | – | 49-80225 INSTALLATION INSTRUCTION | - |
| 999 | | WIRE TRANSFORMER | - |
| 999 | – | WB18X10374 COMMON WIRE HARNESS | - |
