Model
GE ZGU650EM1BG
Electric Range
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZGU650EM1BGElectric Range
2 diagrams67 parts
Parts Sections (2)

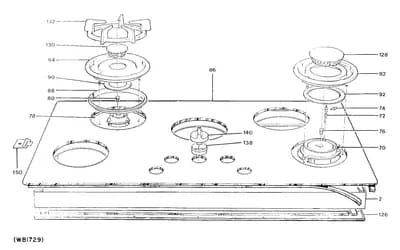

Diagram
Parts List
Parts in Parts List
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WB02X26088replaces WB02X9830 SEAL GASKET | $25.74 Part Advantage |
| 2 | – | WB63X0418 BASE ASSEMBLY | - |
| 44 | – | WB01X1381 HEX NUT 3/8" X 32 | - |
| 46 | – | WB01X1382 HEX NUT M10 X 1 | - |
| 48 | – | WB01X1383 FIBRE WASHER 10MM | - |
| 70 | – | WB28X0119 BURNER ASSEMBLY-LARGE | - |
| 72 | – | WB02X9839 IGNITER ELECTRODE | - |
| 74 | – | WB02X9840 CLIP-IGNITER ELECTRODE | - |
| 76 |  | WB02X9841NLA ORIFICE - 1.65MM NG | Discontinued |
| 78 | – | WB28X0120 BURNER ASSEMBLY-REGULAR | - |
| 80 | – | WB02X9842 ORIFICE - 1.19MM NG | - |
| 82 | – | WB32X0115 DRIP PAN-LARGE (BK) | - |
| 84 | | WB32X0116NLA DRIP PAN-SMALL (BK) | Discontinued |
| 86 | | WB02X26088replaces WB02X9858 SEAL-COOKTOP TO WORKTOP | $25.74 Part Advantage |
| 86 | | COOKTOP-BLACK GLASS | - |
| 88 | | WB02X9843NLA SEAL-DRIP PAN | Discontinued |
| 90 | | WB2X9844replaces WB02X9844 SEAL-REGULAR BURNER | - |
| 92 | | WB02X9845NLA SEAL-LARGE BURNER | Discontinued |
| 96 | – | WB01X1385 NUT M4 | - |
| 98 | – | WB01X1376 FLAT WASHER M4 | - |
| 117 | – | WB02X9849 SUPPLY TUBE-LEFT FRONT | - |
| 126 | – | WB56X2029 BASEPLATE | - |
| 128 | – | WB02X9853 BURNER CAP-LARGE BLACK | - |
| 130 | | WB02X9854NLA BURNER CAP-REGULAR BLACK | Discontinued |
| 132 | – | WB32X0114 TOP BURNER GRATE-BLACK | - |
| 138 | – | WB07X1759 BEZEL-BLACK | - |
| 140 | | WB03X0763NLA KNOB-TOP BURNER | Discontinued |
| 150 | – | WB02X9243 INSTALLATION HARDWARE PK | - |
| 32767 | – | 31-0281 TECHNICAL MANUAL | - |
| 32767 | – | 49-4911 USE AND CARE BOOK | - |
| 32767 | – | WB06K0006 LP GAS CONVERSION KIT | - |
