Model
GE ZGU651ES3WG
Gas Range Or Dual Fuel
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZGU651ES3WGGas Range Or Dual Fuel
2 diagrams66 parts
Parts Sections (2)

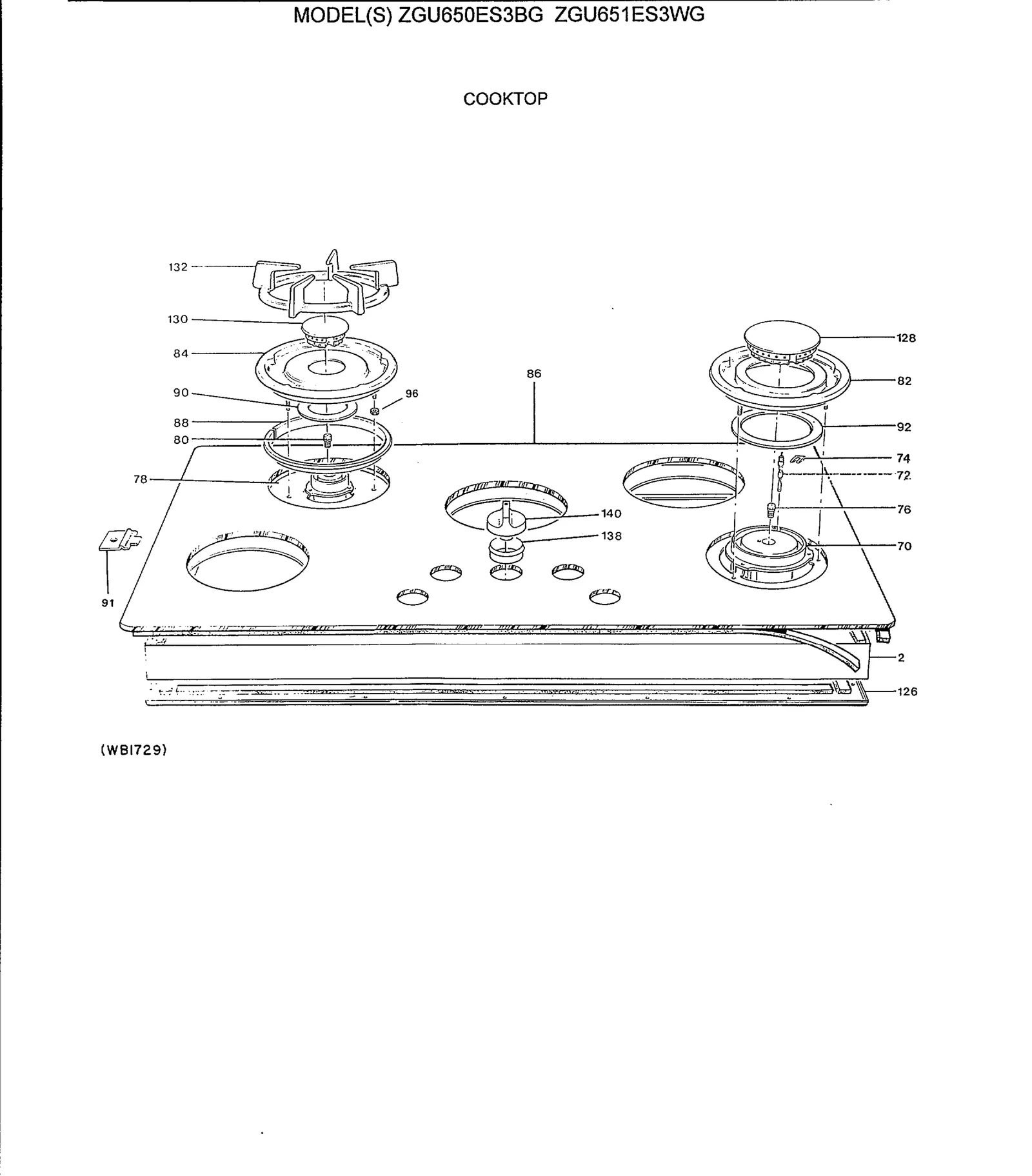

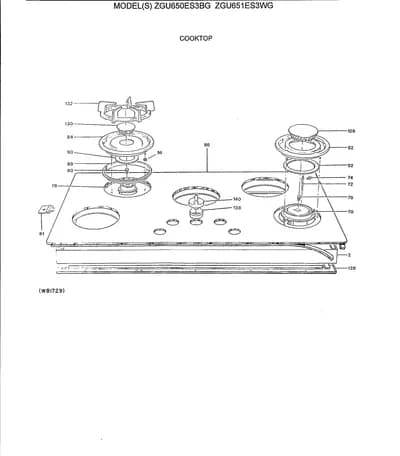

Diagram
COOKTOP
Parts in COOKTOP
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WB02X26088replaces WB02X9830 SEAL GASKET | $25.74 Part Advantage |
| 2 | – | WB63X0418 BASE ASSEMBLY | - |
| 70 | – | WB28X0119 BURNER ASSEMBLY-LARGE | - |
| 72 | – | WB02X9839 IGNITER ELECTRODE | - |
| 74 | – | WB02X9840 CLIP-IGNITER ELECTRODE | - |
| 76 |  | WB02X9841NLA ORIFICE - 1.65MM NG | Discontinued |
| 76 | – | WB28K0093 LP ORIFICE - 1.04MM | - |
| 78 | – | WB28X0120 BURNER ASSEMBLY-REGULAR | - |
| 80 | – | WB02X9842 ORIFICE - 1.19MM NG | - |
| 80 | | WB28K0094NLA ORIFICE SPUD LP - .82MM | Discontinued |
| 82 | – | WB32X0124 DRIP PAN-LARGE (WH) | - |
| 84 | – | WB32X0125 DRIP PAN-SMALL (WH) | - |
| 86 | | WB02X26088replaces WB02X9858 SEAL-COOKTOP TO WORKTOP | $25.74 Part Advantage |
| 86 | – | WB62X1722 COOKTOP-WHITE GLASS | - |
| 88 | | WB02X9843NLA SEAL-DRIP PAN | Discontinued |
| 90 | | WB2X9844replaces WB02X9844 SEAL-REGULAR BURNER | - |
| 91 | – | WB02X9243 INSTALLATION HARDWARE PK | - |
| 92 | | WB02X9845NLA SEAL-LARGE BURNER | Discontinued |
| 96 | – | WB01K0024 WASHER (FELT) | - |
| 96 | – | WB01X1385 NUT M4 | - |
| 126 | – | WB56X2029 BASEPLATE | - |
| 128 | | WB06X0114NLA BURNER CAP-LARGE GRAY | Discontinued |
| 130 | | WB06X0115NLA BURNER CAP-REGULAR GRAY | Discontinued |
| 132 | – | WB32X0123 TOP BURNER GRATE-GRAY | - |
| 138 | – | WB07X1832 BEZEL-WHITE | - |
| 140 | | WB03K0108NLA TOP BURNER KNOB | Discontinued |
| 32767 | – | 49-8714 PM USE & CARE MANUAL | - |
| 32767 | – | WB01K0055 ADAPTOR-NG TO LPG | - |
| 32767 | – | WB06K0006 LP GAS CONVERSION KIT | - |
