Model
GE ZGU661EM1WG
Electric Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
ZGU661EM1WGElectric Range
4 diagrams118 parts
Parts Sections (4)

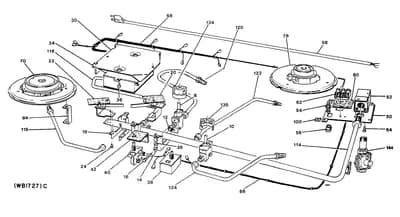

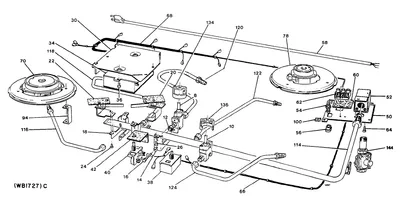

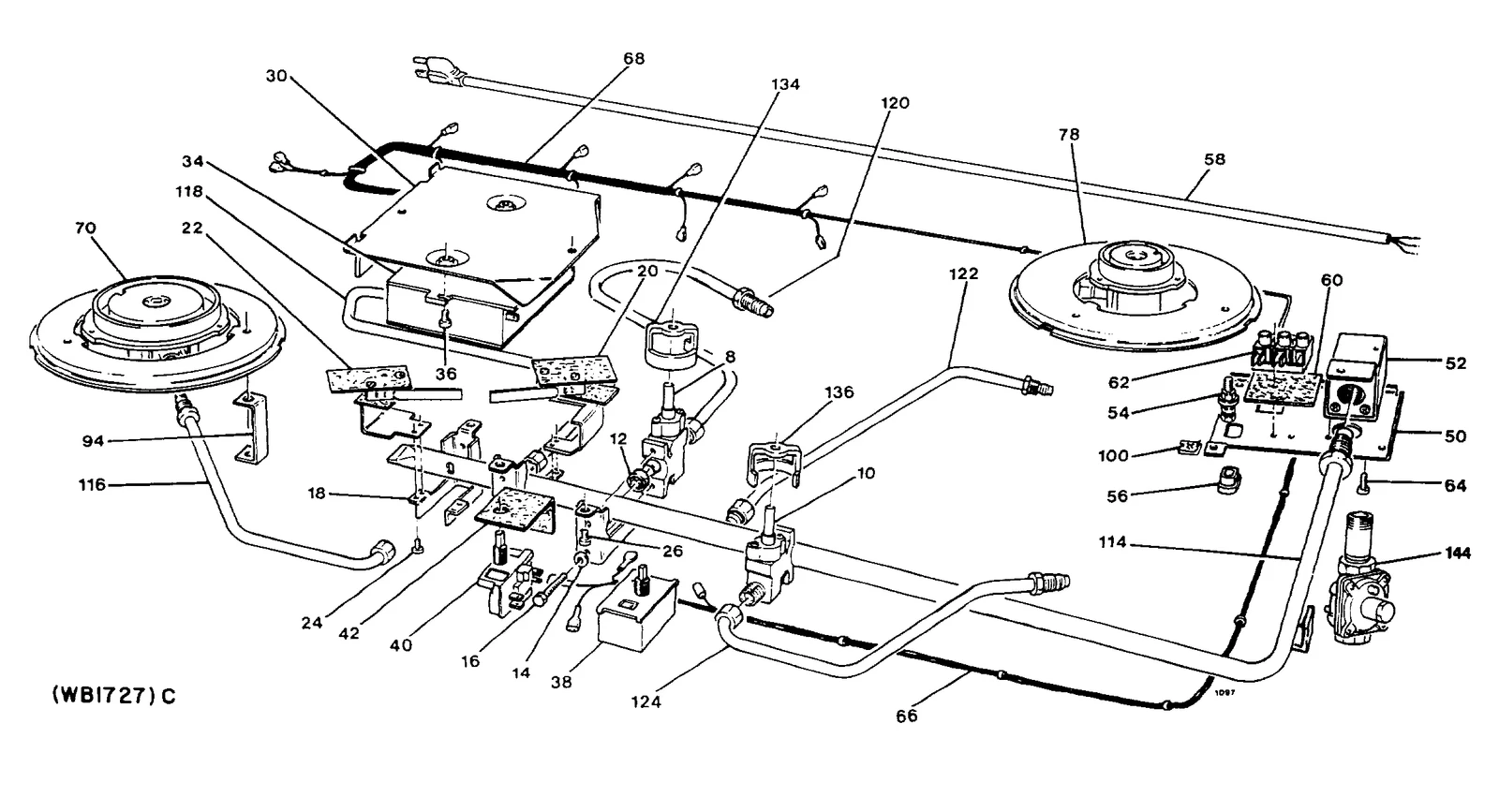

Diagram
Parts List
Parts in Parts List
55 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 6 | – | WB02X9831 MANIFOLD ASSEMBLY | - |
| 8 |  | WB21X0514NLA VALVE BRNR CTL (REGULAR) | Discontinued |
| 10 | | WB21X0515NLA VALVE BURNER CTL (LG) | Discontinued |
| 12 | | WB02X9218NLA O RING SEAL | Discontinued |
| 14 | – | WB01X1378 FLAT WASHER-M4 | - |
| 16 | – | WB01X1193 SCREW 8X32 | - |
| 18 | – | WB02X9832 SADDLE ADAPTER | - |
| 20 | – | WB24X0473 MICROSWITCH ASSEMBLY | - |
| 22 | – | WB24X0474 MICROSWITCH ASSEMBLY | - |
| 24 | – | WB01X1379 SCREW M3X4 | - |
| 26 | – | WB01X1380 SCREW M4X5 | - |
| 28 | – | WB02X9833 DOUBLE ENDED UNION | - |
| 30 | – | WB02X9834 SHIELD-SPARK MODULE | - |
| 34 | | SPARK MODULE | Discontinued |
| 36 | – | WB01X1189 SCREW M4X8 | - |
| 38 | – | WB24X0476 BLOWER SPEED REULATOR | - |
| 40 | | WB24X0475NLA SWITCH | Discontinued |
| 42 | – | WB02X9835 SHIELD-SWITCH | - |
| 50 | – | WB02X9836 MOUNTING PLATE ASSEMBLY | - |
| 52 | – | WB02X9837 INLET BLOCK ASSEMBLY | - |
| 54 | – | WB01X1384 GROUND POST ASSEMBLY | - |
| 56 | – | WB02X9838 POWER CORD CLAMP | - |
| 58 | – | WB18X0380 POWER SUPPLY CORD | - |
| 60 | – | WB02X9214 SHIELD-TERMINAL BLOCK | - |
| 62 | – | WB17X0208 TERMINAL BLOCK | - |
| 64 | – | WB01X1189 SCREW M4X8 | - |
| 66 | – | WB18X0381 WIRING HARNESS-DOWNDRAFT | - |
| 68 | – | WB18X0382 HARNESS-SPARK MODULE | - |
| 70 | – | WB28X0119 BURNER ASSEMBLY-LARGE | - |
| 78 | – | WB28X0120 BURNER ASSEMBLY-REGULAR | - |
| 94 | – | WB02X9846 RETENTION BRACKET | - |
| 96 | – | WB01X1385 NUT M4 | - |
| 98 | – | WB01X1376 FLAT WASHER M4 | - |
| 100 |  | WB1K2replaces WB01X1386 CAPTIVE NUT | $7.95 ApplianceParts Pro |
| 114 | – | WB02X9847 SUPPLY TUBE-MAIN | - |
| 116 | – | WB02X9848 SUPPLY TUBE-RIGHT REAR | - |
| 117 | – | WB02X9849 SUPPLY TUBE-LEFT FRONT | - |
| 120 | – | WB02X9850 SUPPLY TUBE-LEFT REAR | - |
| 122 | – | WB02X9851 SUPPLY TUBE-CENTER | - |
| 124 | – | WB02X9852 SUPPLY TUBE-RIGHT FRONT | - |
| 132 | – | WB32X0123 TOP BURNER GRATE-GRAY | - |
| 132 | | GRATE-GRAY | - |
| 134 | | WB02X9855NLA CAM-MICROSWITCH | Discontinued |
| 136 | | WB02X9856NLA CAM-MICROSWITCH | Discontinued |
| 144 | | WB21X0516NLA PRESSURE REGULATOR | Discontinued |
| 202 | – | WB56X2031 COVER-LOWER CASING | - |
| 225 | – | WB02X9817 PLATE-EXTRACTOR ADAPTER | - |
| 239 | – | WB02X9822 MOUNTING BRACKET-RIGHT | - |
| 239 | – | WB02X9823 MOUNTING BRACKET-LEFT | - |
| 270 | – | WB01X1387 NUT-1/4" UNC | - |
| 271 | – | WB01X1388 WASHER | - |
| 284 | – | WB01K0061 SCREW | - |
| 32767 | – | 31-0281 TECHNICAL MANUAL | - |
| 32767 | – | 49-4910 USE AND CARE BOOK | - |
| 32767 | – | WB06K0006 LP GAS CONVERSION KIT | - |
