Model
Kenmore 106.41129211
Refrigerator (Kenmore 10641129211)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.41129211Refrigerator (Kenmore 10641129211)
10 diagrams196 parts
Parts Sections (10)

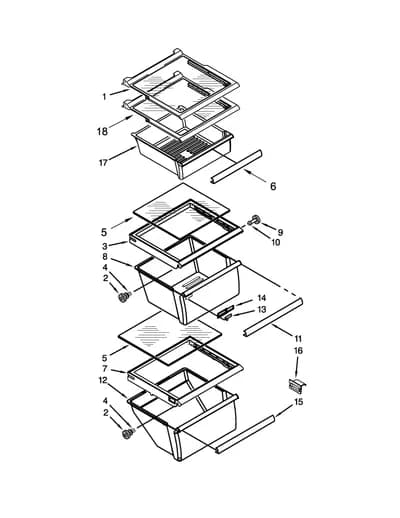

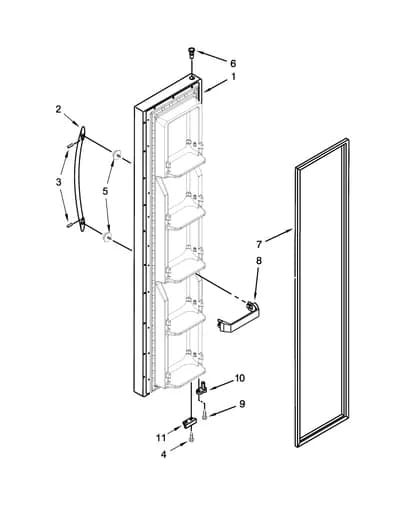

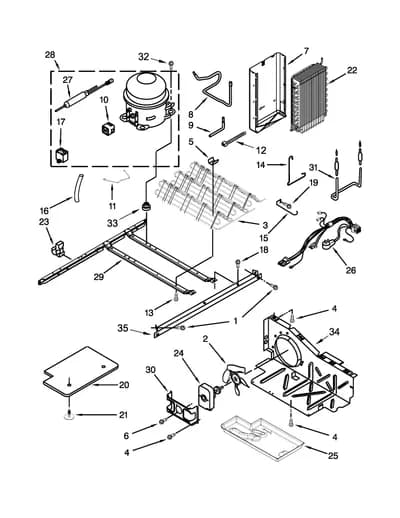

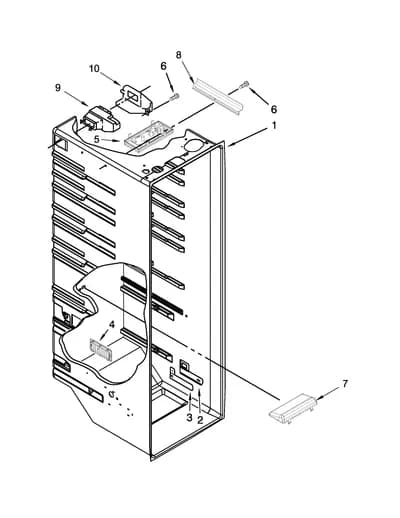

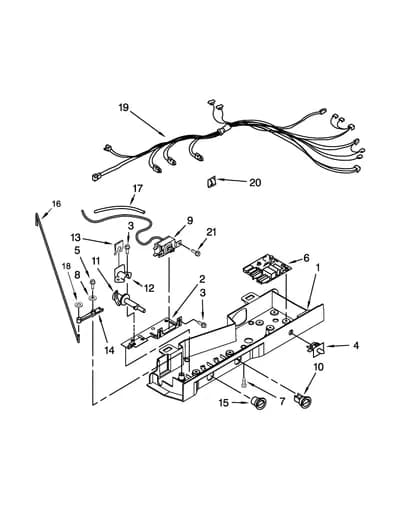

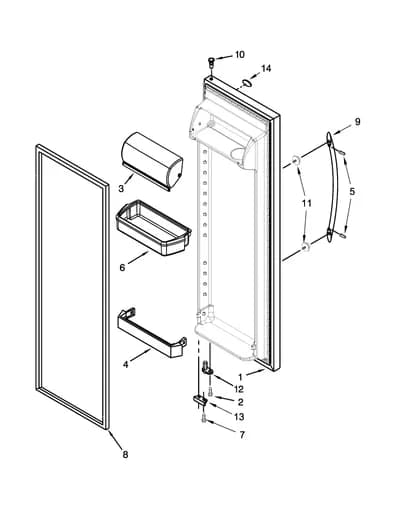

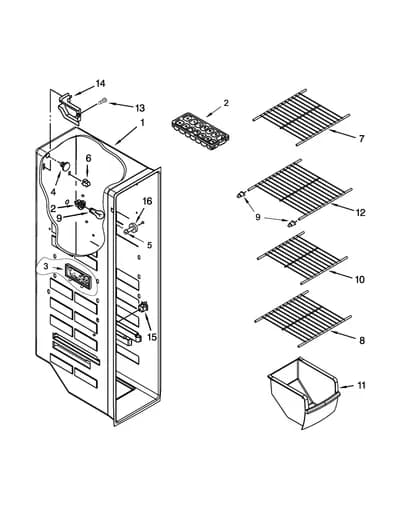

Diagram

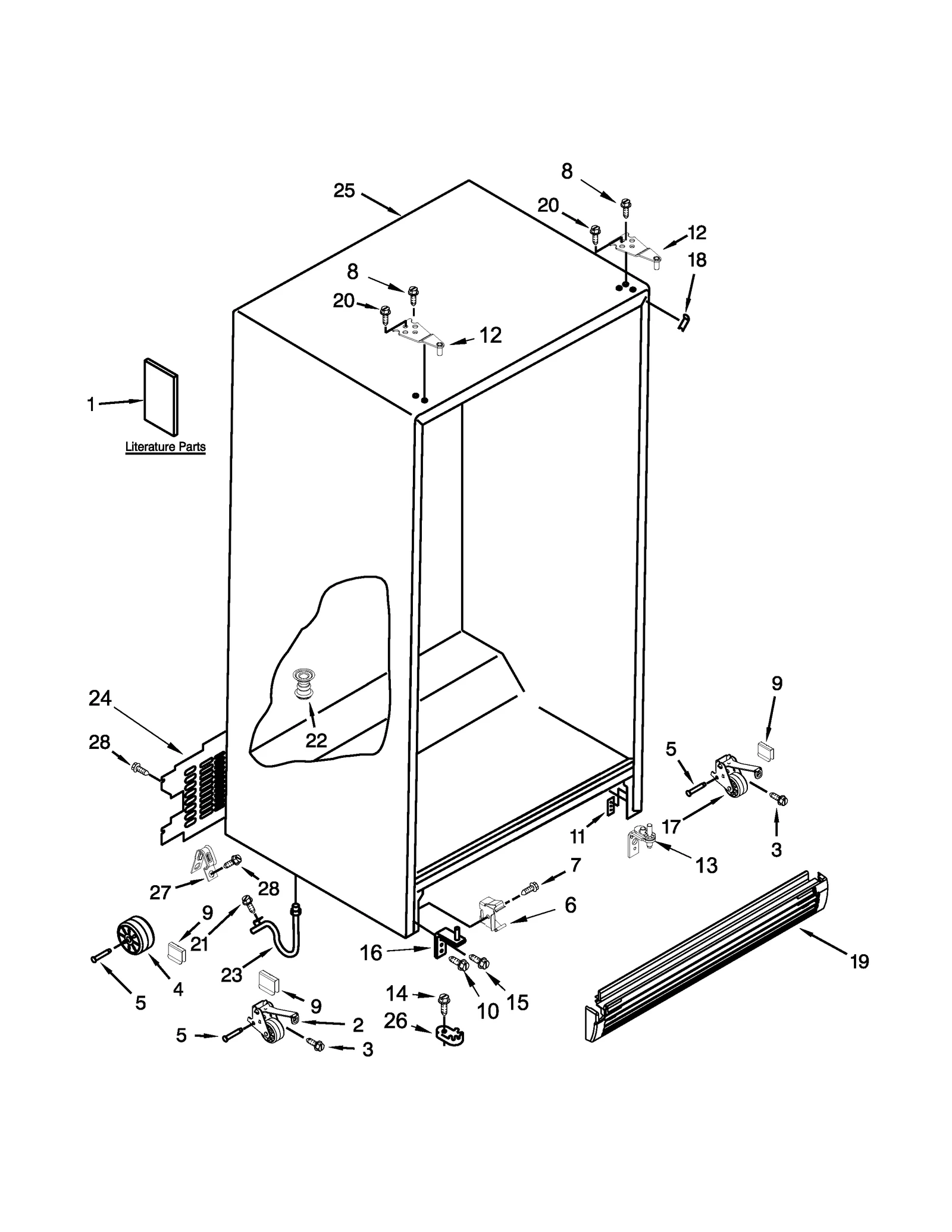

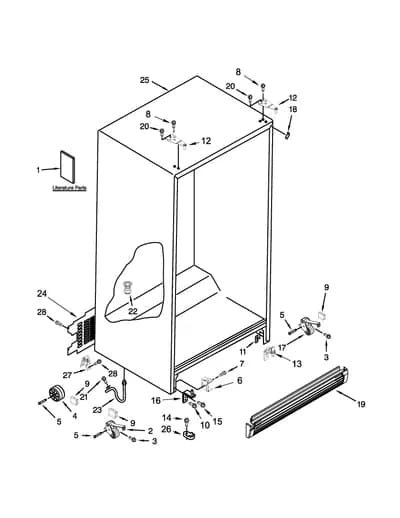

CABINET PARTS
Parts in CABINET PARTS
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10436750 Refrigerator Owner's Manual | - |
| 1A | – | W10647647 Lit-service | - |
| 1B | – | W10449713 Energy Guide | - |
| 2 |  | WPW10304660replaces W10304660 Refrigerator Roller | $27.16 Part Advantage |
| 3 |  | WP489427replaces 489427 Refrigerator Screw | $5.00 RepairClinic |
| 4 |  | WPW10475495replaces W10475495 Refrigerator Roller | $10.55 Part Advantage |
| 5 |  | W11594405replaces 2262072 Refrigerator Rivet | $6.31 Part Advantage |
| 6 |  | WP2155013replaces 2155013 Refrigerator Toe Grille Clip | $3.38 Part Advantage |
| 7 |  | WP489128replaces 488500 Screw | $5.96 Parts Dr |
| 8 |  | Amana Refrigerator Screw | $9.95 ApplianceParts Pro |
| 9 |  | WP2174706replaces 2174706 Refrigerator Roller Axle Clip | $6.02 Parts Dr |
| 10 |  | W10856122replaces 3400103 Refrigerator Door Hinge Screw | $7.43 ApplianceParts Pro |
| 11 |  | WP2304249replaces 2304249 Refrigerator Door Hinge Plate | $10.37 ApplianceParts Pro |
| 12 |  | W11579508replaces W10402730 Refrigerator Door Hinge | $13.24 Part Advantage |
| 12A | | W11579508replaces W10398820 Refrigerator Door Hinge | $13.24 Part Advantage |
| 12B |  | W11164088replaces W10400479 Refrigerator Door Hinge | $46.35 ApplianceParts Pro |
| 13 |  | W11049959replaces W10409481 Refrigerator Door Hinge | $42.53 Part Advantage |
| 14 |  | WP489483replaces W10142234 Refrigerator Screw | $11.77 PartSelect |
| 15 |  | WP489497replaces 3400113 SCREW | $4.19 Part Advantage |
| 16 |  | W10646418replaces W10414753 Refrigerator Door Hinge | $15.61 Parts Dr |
| 17 |  | WPW10304659replaces W10304659 Refrigerator Roller | $36.09 Part Advantage |
| 18 |  | WPW10283959replaces W10283959 Refrigerator Filler | $3.38 Part Advantage |
| 18A |  | W11252732replaces W10283960 Refrigerator Corner Trim (Black) | $8.95 ApplianceParts Pro |
| 18B |  | W10851579replaces W10283961 Refrigerator Filler | $5.95 ApplianceParts Pro |
| 19 |  | W10449703NLA Refrigerator Toe Grille | Discontinued |
| 19A | | Refrigerator Toe Grille | - |
| 19B | | W10449705NLA Refrigerator Grille | Discontinued |
| 20 |  | WPW10308750replaces W10308750 Appliance Screw | $28.97 Parts Dr |
| 21 |  | WP489464replaces 489464 Refrigerator Screw | $9.62 PartSelect |
| 22 |  | W11566763replaces 2304888 Refrigerator Fitting (Gray) | $19.22 Part Advantage |
| 23 |  | W11512417replaces W10153550 Refrigerator Drain Tube | $11.92 Part Advantage |
| 24 |  | WP2188756replaces 2171935 Refrigerator Cover Unit | $82.95 ApplianceParts Pro |
| 25 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 26 | | W11778262replaces 2223751 Refrigerator Door Cam | $6.89 ApplianceParts Pro |
| 27 |  | Clamp | - |
| 28 | | Screw | $9.62 PartSelect |
