Kenmore 106.41129212
Refrigerator (Kenmore 10641129212)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.41129212Refrigerator (Kenmore 10641129212)
10 diagrams197 parts

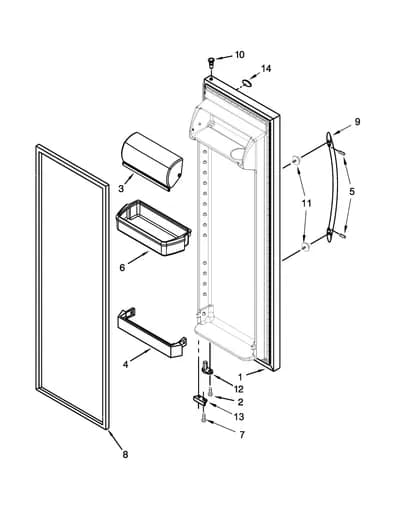

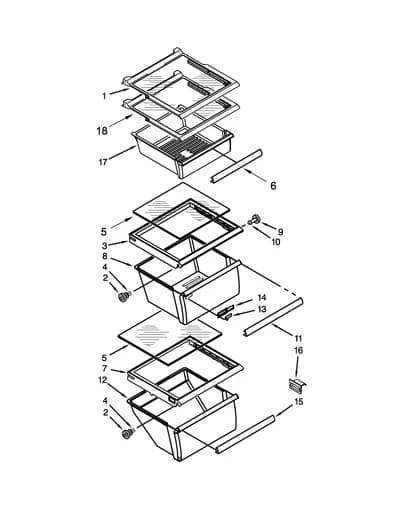

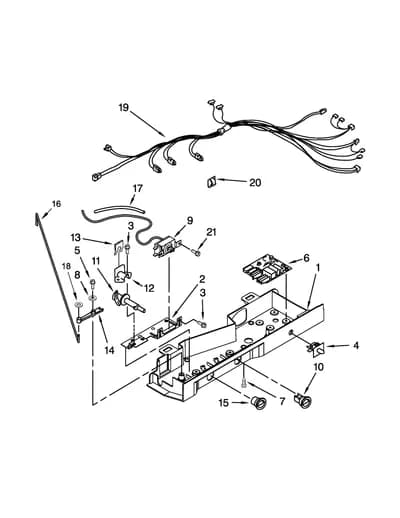

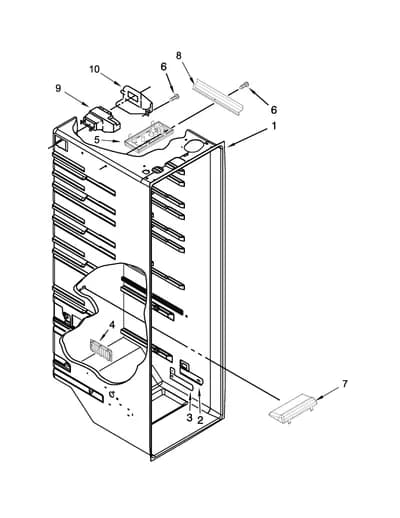

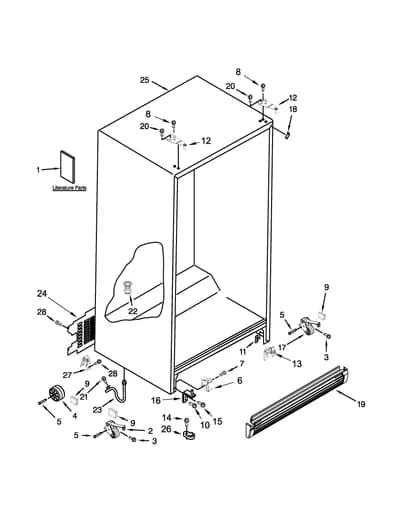

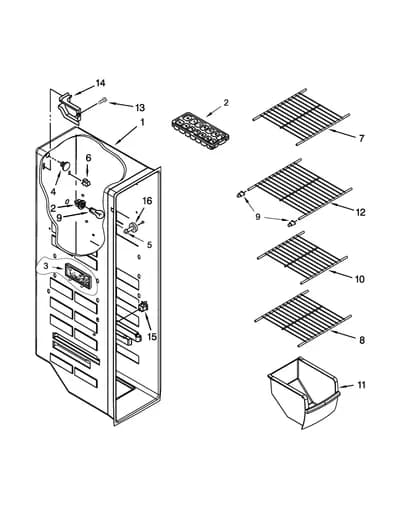

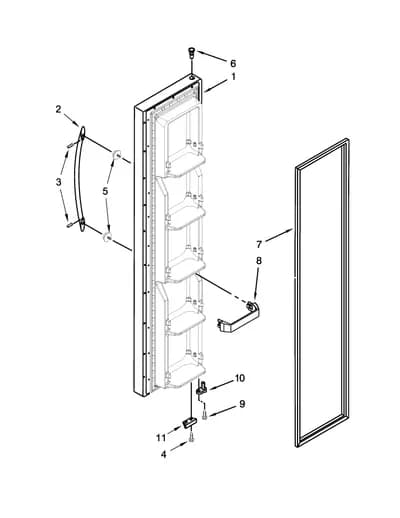

Parts Sections (10)
Diagram

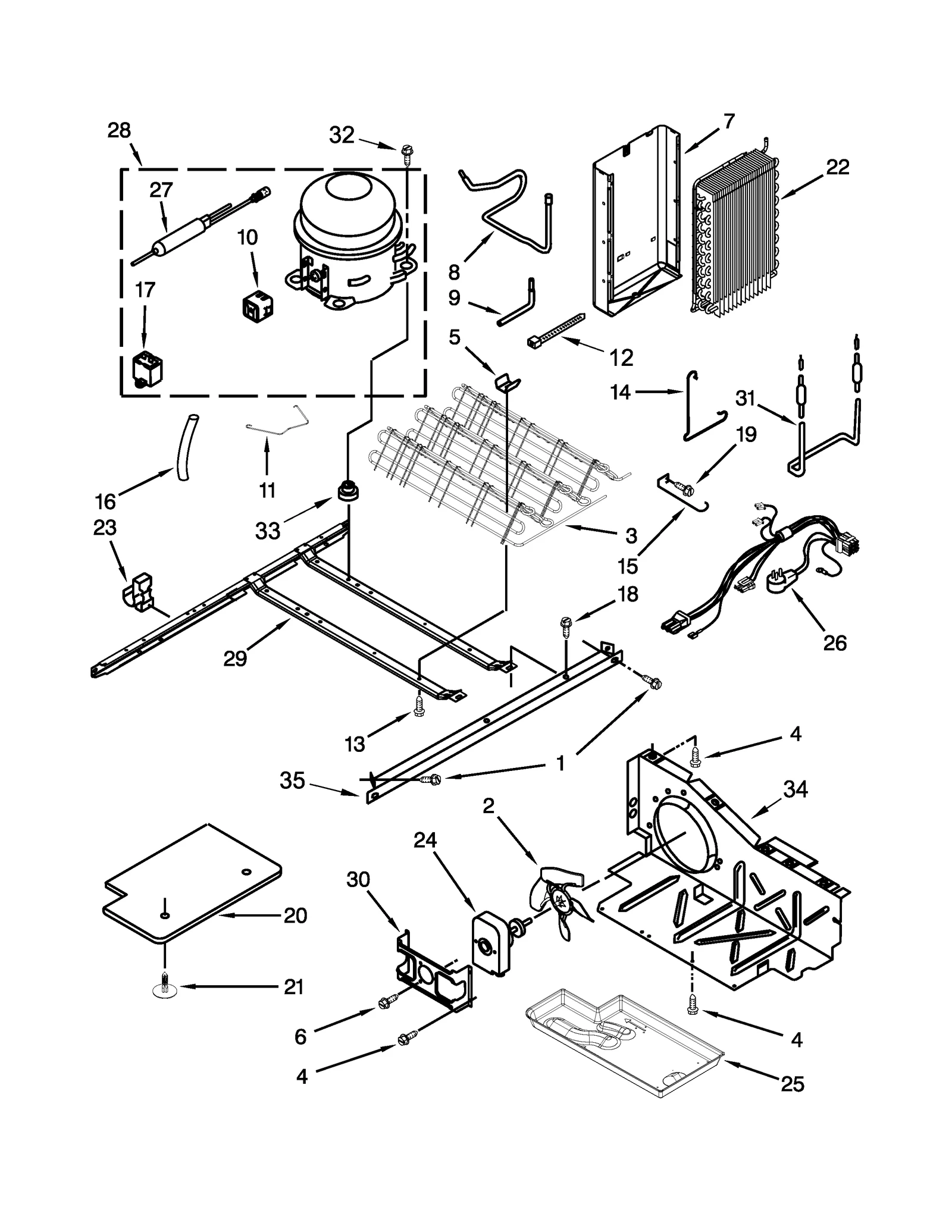

UNIT PARTS
Parts in UNIT PARTS
43 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Compressor Rail Bracket Screw | - |
| 2 |  | W10156818replaces 12825802 Refrigerator Fan Blade | $29.27 Part Advantage |
| 3 |  | Refrigerator Condenser Coil | $159.60 Parts Dr |
| 4 |  | WP489464replaces 489464 Refrigerator Screw | $9.62 PartSelect |
| 5 |  | W10683556replaces 2311725 Refrigerator Clip | $12.51 ApplianceParts Pro |
| 6 |  | WP8533993replaces 8533993 Refrigerator Screw | $7.09 RepairClinic |
| 7 |  | WPW10194474replaces W10194474 Refrigerator Shield | - |
| 8 |  | 2205764replaces W10576271 Refrigerator Suction Tube | - |
| 9 |  | W10858105replaces 2325479 Refrigerator Refrigerant Process Tube | - |
| 10 |  | WPW10197426replaces W10197426 Refrigerator Overload and PTC Start Relay | $74.95 ApplianceParts Pro |
| 11 |  | Refrigerator Retainer | - |
| 12 |  | WPW10339879replaces 2263990 Refrigerator Wire Tie | $2.30 Part Advantage |
| 13 |  | W11544659replaces 8281232 Refrigerator Screw | $6.41 RepairClinic |
| 14 |  | WP2161324replaces 2161324 Refrigerator Defrost Clip | $5.78 Parts Dr |
| 15 |  | Fan Guard | - |
| 16 |  | W11751592replaces 2161302 Refrigerator Sleeve | $11.13 Part Advantage |
| 17 |  | WPW10350564replaces W10350564 Refrigerator Run Capacitor | $42.07 Part Advantage |
| 18 |  | WP489427replaces 489427 Refrigerator Screw | $5.00 RepairClinic |
| 19 |  | WP489478replaces 489478 Refrigerator Screw | $5.00 RepairClinic |
| 20 | | Refrigerator Cover Unit | - |
| 21 |  | Refrigerator Clip | $11.71 ApplianceParts Pro |
| 22 |  | WP2188822replaces 2188822 Refrigerator Evaporator | $189.20 Part Advantage |
| 23 |  | W10812039replaces 2326941 Refrigerator Clip | - |
| 24 |  | WP2188874replaces W10508362 Condenser Motor | $53.39 Part Advantage |
| 25 |  | WPW10614158replaces W10614158 Refrigerator Drain Pan | $41.30 Part Advantage |

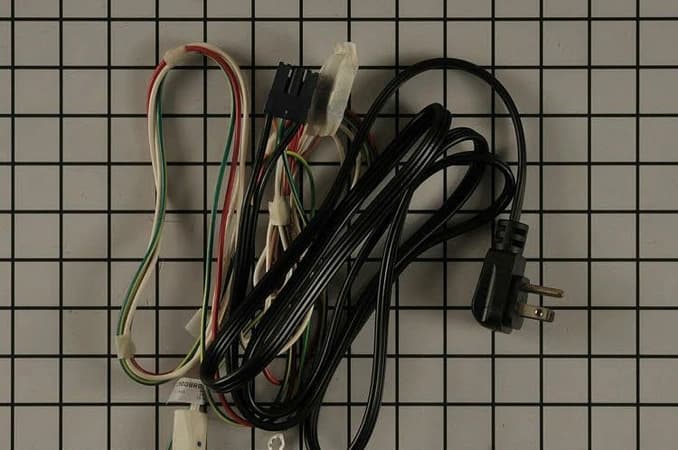

| 26 |  | W11673314replaces W10667072 Refrigerator Wire Harness | $41.61 Parts Dr |
| 27 |  | WPW10143759replaces W10177049 Drier Tube | $13.43 Part Advantage |
| 28 |  | W10309988replaces W10171785 Refrigerator Compressor | $255.83 Part Advantage |
| 29 |  | Roper Refrigerator Frame | - |
| 30 |  | WP2181929replaces 2181929 Refrigerator Condenser Fan Motor Bracket | $3.78 RepairClinic |
| 31 |  | WPW10495967replaces W10495967 Refrigerator Defrost Heater | $58.69 Part Advantage |
| 32 | | W11417341replaces W10476309 Refrigerator Screw | $8.95 ApplianceParts Pro |
| 33 |  | WPW10169124replaces 10835903 Refrigerator Grommet | $3.38 Part Advantage |
| 34 | | Refrigerator Air Baffle | - |
| 35 | | Inglis Rail Unit | - |
| NI |  | Sears Refrigerator Service Valve | $21.10 Part Advantage |
| NI |  | WP978025replaces 978025 Refrigerator Service Valve | $26.37 Part Advantage |
| NI |  | Sears Refrigerator Service Valve | $32.89 Part Advantage |
| NI |  | Sears Refrigerator Service Valve | $13.43 Parts Dr |
| NI | | 978028NLA Refrigerator Service Valve | Discontinued |
| NI | | Refrigerator Service Valve | - |
| NI |  | Sears Refrigerator Service Valve, 3/4-in | $23.51 Parts Dr |
| NI | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
