Model
Kenmore 106.4651773510
SIDE-BY-SIDE REFRIGERATOR (Kenmore 1064651773510)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.4651773510SIDE-BY-SIDE REFRIGERATOR (Kenmore 1064651773510)
11 diagrams259 parts
Parts Sections (11)
Diagram

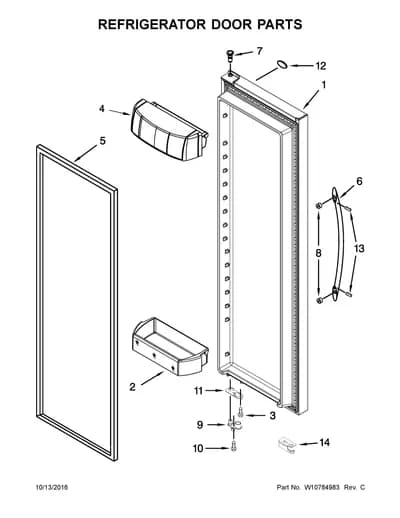

REFRIGERATOR DOOR PARTS
Parts in REFRIGERATOR DOOR PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | LW10261181replaces W10261181 Refrigerator Door Assembly (White) | $425.57 PartSelect |
| 1A | – | W10372830 Refrigerator Door Assembly (Black) | - |
| 1B |  | LW10637805replaces W10637805 Door Assembly | - |
| 2 |  | WPW10160952replaces W10570338 Refrigerator Door Bin | $45.02 Part Advantage |
| 3 |  | WPW10296816replaces W10296816 Refrigerator Screw | $5.00 RepairClinic |
| 4 |  | WPW10324760replaces W10324760 Refrigerator Door Bin | $60.78 Part Advantage |
| 5 |  | WPW10247884replaces W10247884 Refrigerator Door Gasket (Beige) | $142.62 Part Advantage |
| 5A |  | WPW10249912replaces W10249912 Refrigerator Door Gasket | $140.47 Part Advantage |
| 5B |  | W10355582replaces W10249916 Refrigerator Gasket Panel | $137.30 Part Advantage |
| 6 |  | WPW10343648replaces W10343648 Refrigerator Door Handle (White) | - |
| 6A | | Refrigerator Door Handle (Black) | $68.74 ApplianceParts Pro |
| 6B | | W10505805Areplaces W10343651 Refrigerator Handle | - |
| 7 |  | WP2182181replaces 2200086 Refrigerator Thimble | $3.55 Part Advantage |
| 8 |  | WPW10661886replaces W10460893 SCREW | $4.13 Part Advantage |
| 9 |  | WPW10248011replaces W10248011 Refrigerator Door Closer Cam | $8.04 Part Advantage |
| 9A |  | WPW10257201replaces W10257201 Refrigerator Door Cam (Black) | $7.94 Part Advantage |
| 9B |  | WPW10257203replaces W10257203 Refrigerator Door Closer Cam | $8.06 Part Advantage |
| 10 |  | WPW10296804replaces W10296804 Refrigerator Screw | $10.65 ApplianceParts Pro |
| 11 |  | W11037957replaces W10888898 BRKT-DOOR ST | $28.32 Part Advantage |
| 12 | | Appliance Nameplate | - |
| 12A | | Nameplate | - |
| 12B | | Nameplate | - |
| 13 |  | W11366418replaces W10010140 Refrigerator Screw | $10.67 Parts Dr |
| 14 |  | Refrigerator Door Hinge Cover (White) | $10.16 Part Advantage |
| 14A |  | Refrigerator Door Hinge Cover (Black) | - |
| 14B | | W11661847replaces W10257218 Refrigerator Door Hinge Cover (Gray) | - |
