Model
Kenmore 106.51332710
Refrigerator (Kenmore 10651332710)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.51332710Refrigerator (Kenmore 10651332710)
11 diagrams238 parts
Parts Sections (11)
Diagram

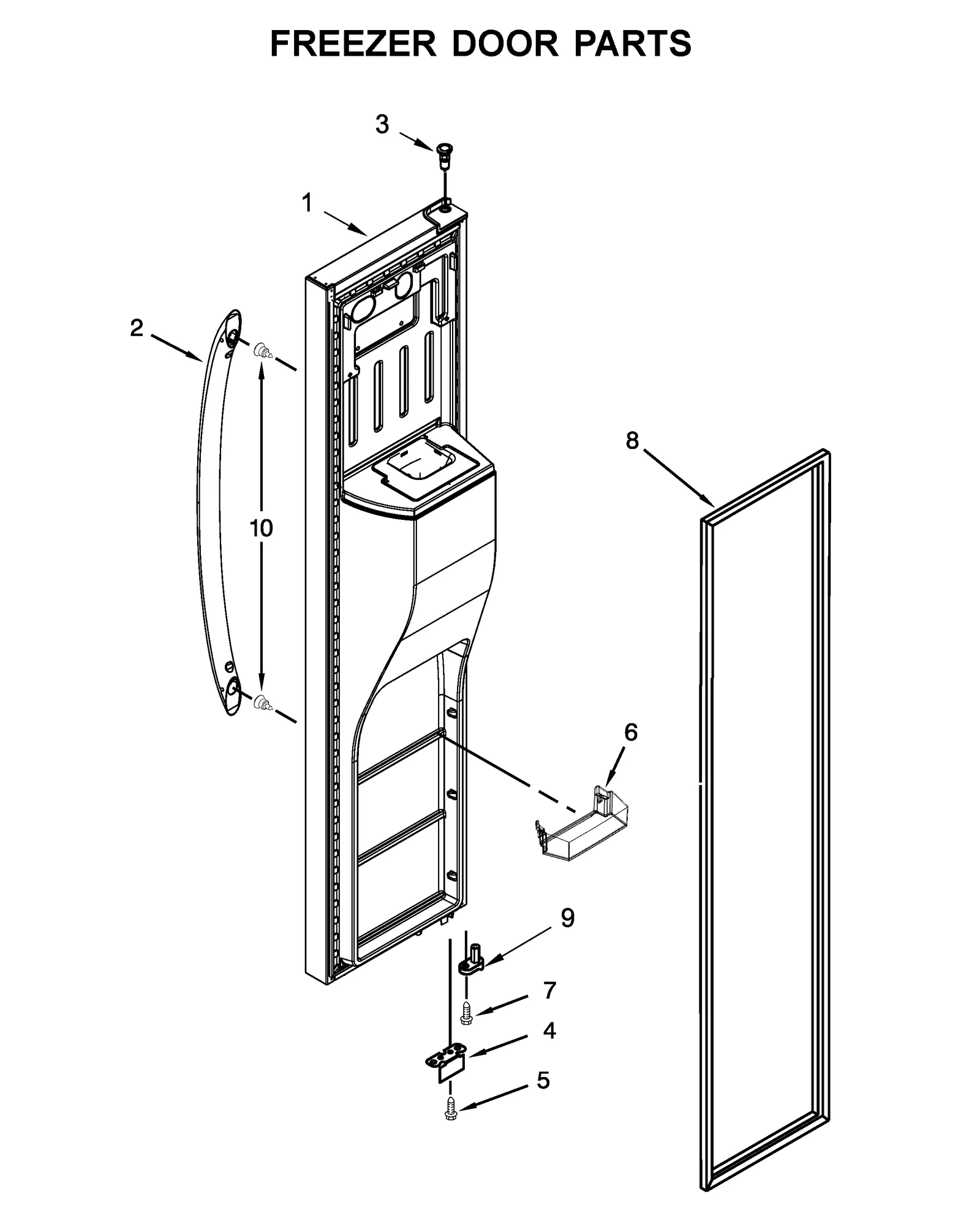

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | LW11026432replaces W11026432 Freezer Door Assembly (White) | - |
| 1A |  | LW11026431replaces W11026431 Refrigerator Freezer Door Assembly (Black) | - |
| 1B |  | LW11026434replaces W11026434 Freezer Door Assembly (Stainless) | - |
| 2 |  | W11174794replaces W11084370 Refrigerator Handle (White) | - |
| 2A |  | W11190848replaces W11084369 Refrigerator Handle (Black) | - |
| 2B |  | W10393081Areplaces W11031871 Handle (Stainless) | $88.95 ApplianceParts Pro |
| 3 |  | WP2182181replaces 2200087 Refrigerator Thimble | $3.55 Part Advantage |
| 4 |  | W11557261replaces W10900531 BRACKET, DOOR STOP (BLACK) | $9.06 Parts Dr |
| 5 |  | WPW10296816replaces W10296816 Refrigerator Screw | $5.95 ApplianceParts Pro |
| 6 |  | W11226457replaces W11034206 TRIVET | - |
| 7 |  | WPW10296804replaces W10296804 Refrigerator Screw | $10.65 ApplianceParts Pro |
| 8 |  | 2159074replaces W10911412 GASKET, DOOR (BEIGE) | $146.38 Parts Dr |
| 8A |  | 2159083replaces W10911422 Door Gasket (Black) | $102.38 Part Advantage |
| 8B |  | W10136735replaces W10911389 Door Gasket (Gray) | $119.78 Part Advantage |
| 9 |  | W11661926replaces W10900532 THIMBLE, CAM | $8.41 RepairClinic |
| 10 |  | WPW10170540replaces W10170540 Appliance Screw | $4.19 Part Advantage |
