Kenmore 106.51335710
Refrigerator (Kenmore 10651335710)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.51335710Refrigerator (Kenmore 10651335710)
11 diagrams238 parts

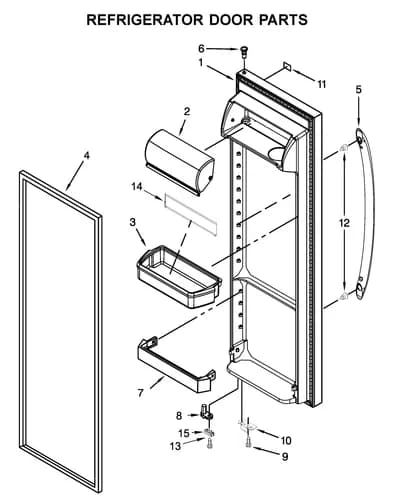

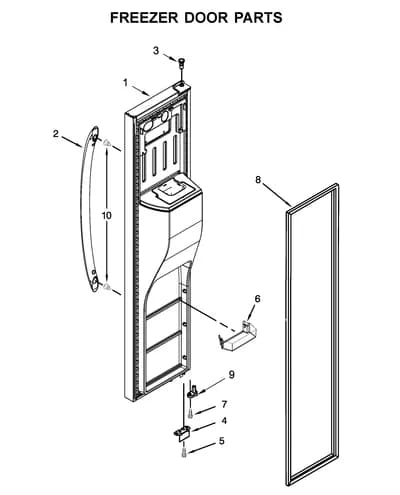

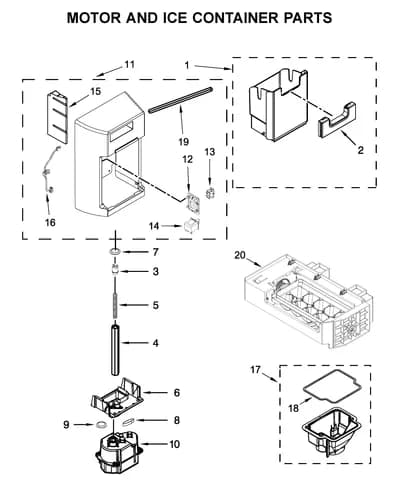

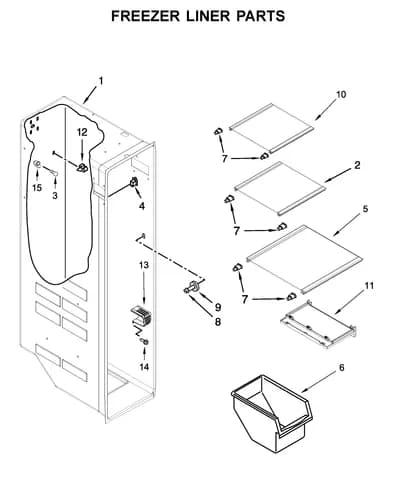

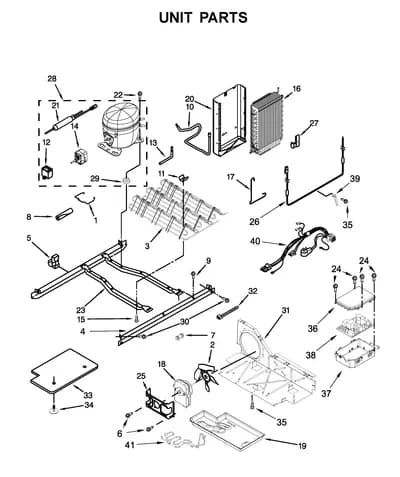

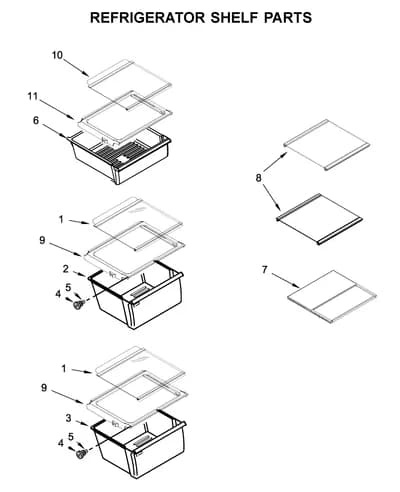

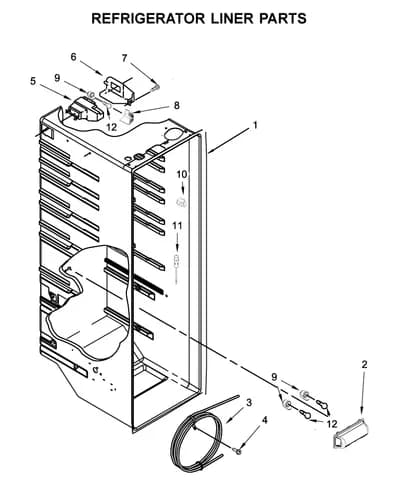

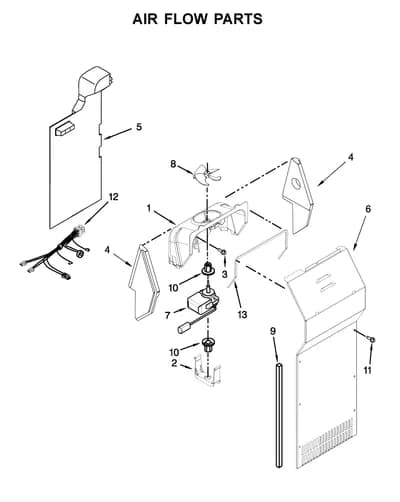

Parts Sections (11)
Diagram

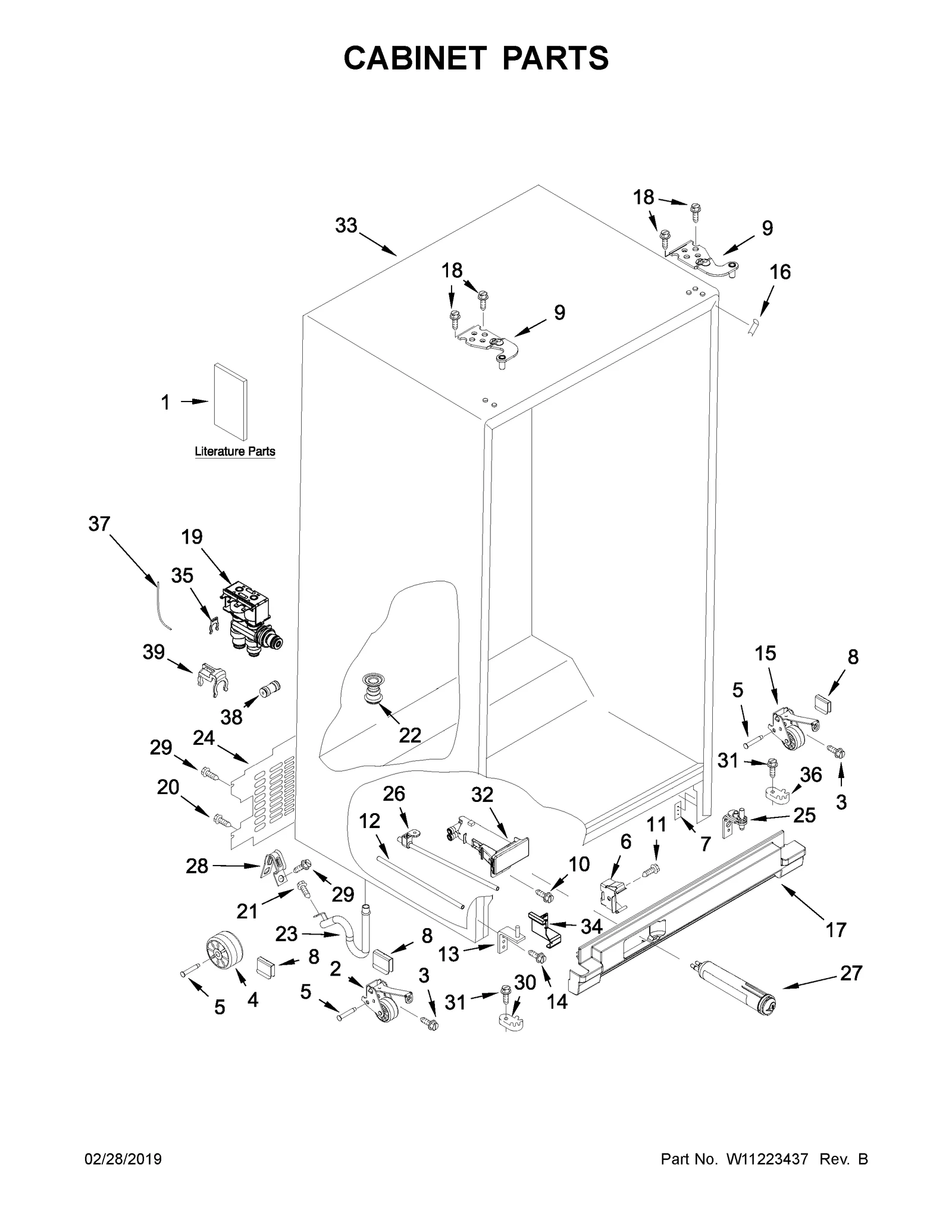

CABINET PARTS
Parts in CABINET PARTS
55 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W11105305 Use and Care Guide | - |
| 1A | – | W11125075 Technical Sheet | - |
| 1B | – | W11157529 Energy Guide | - |
| 2 |  | WPW10304660replaces W10304660 Refrigerator Roller | $27.16 Part Advantage |
| 3 |  | W11544561replaces 2152958 Crosley Refrigerator Screw | $8.78 Part Advantage |
| 4 |  | WPW10475495replaces 2150304 Cabinet Roller | $10.55 Part Advantage |
| 5 |  | W11594405replaces 2262072 Refrigerator Rivet | $6.31 Part Advantage |
| 6 |  | WP2155013replaces 2155013 Refrigerator Toe Grille Clip | $3.38 Part Advantage |
| 7 |  | Refrigerator Bottom Hinge | $17.95 ApplianceParts Pro |
| 7A |  | Refrigerator Bottom Hinge | - |
| 8 | | W11594405replaces W11087168 CLIP, ROLLER | $6.31 Part Advantage |
| 9 |  | W11579508replaces W10922200 HINGE, TOP (WHITE (REFRIGERATOR)) | $13.24 Part Advantage |
| 9A | | W11579508replaces W10922201 HINGE, TOP (WHITE (FREEZER)) | $13.24 Part Advantage |
| 9B |  | Refrigerator Door Hinge, Upper (Black) | $46.35 ApplianceParts Pro |
| 9C |  | Refrigerator Freezer Door Hinge, Upper (Black) | - |
| 9D | | W11579508replaces W10900868 Refrigerator Door Hinge, Top (Gray) | $13.24 Part Advantage |
| 9E | | W11579508replaces W10900869 HINGE, TOP (GREY (FREEZER)) | $13.24 Part Advantage |
| 10 |  | WP489500replaces 489500 Refrigerator Door Trim Screw | $5.00 RepairClinic |
| 11 |  | WP489128replaces 488500 Screw | $5.96 Parts Dr |
| 12 |  | W11162036replaces W10900447 TUBE-FILTER | $41.80 Part Advantage |
| 13 |  | W11687636replaces W11093938 Refrigerator Hinge Assembly | $31.19 Parts Dr |
| 14 |  | WP489497replaces 3400113 SCREW | $4.19 Part Advantage |
| 15 |  | WPW10304659replaces W10304659 Refrigerator Roller | $36.09 Part Advantage |
| 16 |  | W11219639replaces W11189128 FILLER, WRAPPER (WHITE) | - |
| 16A | | W11219641replaces W11189127 FILLER, WRAPPER (BLACK) | - |
| 16B | | W11219642replaces W11189126 FILLER, WRAPPER (GREY) | $8.14 RepairClinic |
| 17 |  | W11162037replaces W10920727 GRILLE-EXT 2 | - |
| 17A |  | W11282546replaces W10920723 Refrigerator Grille (Black) | $45.47 Parts Dr |
| 17B |  | W11282544replaces W10897568 GRILLE-EXT 2 | $47.98 Parts Dr |
| 18 |  | WPW10308750replaces W10308750 Appliance Screw | $28.97 Parts Dr |
| 18A |  | WPW10308751replaces W10308751 Appliance Screw | $8.55 PartSelect |

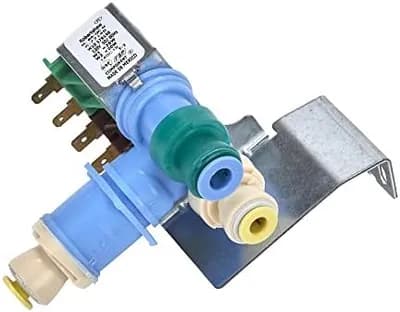

| 19 |  | WPW10179146replaces W10179146 Refrigerator Water Inlet Valve | $56.93 Part Advantage |
| 20 |  | WP488488replaces 489290 Refrigerator Screw | $5.00 RepairClinic |
| 21 |  | WP489464replaces 489464 Refrigerator Screw | $9.62 PartSelect |
| 22 |  | W11566763replaces 2304888 Refrigerator Fitting (Gray) | $19.22 Part Advantage |
| 23 |  | W11512417replaces W10153550 Refrigerator Drain Tube | $11.92 Part Advantage |
| 24 | | Refrigerator Machine Compartment Cover | $77.99 PartSelect |
| 25 |  | W11399415replaces W11097327 Refrigerator Door Hinge, Lower | $24.80 Part Advantage |
| 26 |  | W11162040replaces W10900449 Inlet Filter | $41.80 Part Advantage |
| 27 | – | W10743248 Refrigerator Cartridge | - |
| 28 |  | Clamp | - |
| 29 | | W10141645NLA Refrigerator Screw | Discontinued |
| 30 |  | W11679635replaces W11095731 CLOSER, DOOR (FREEZER) | $7.95 ApplianceParts Pro |
| 31 |  | WP489483replaces W10142234 Refrigerator Screw | $11.77 PartSelect |
| 32 |  | W11162041replaces W11036340 Refrigerator Housing Assembly | $62.15 Part Advantage |
| 32A |  | W11172791replaces W11036341 Refrigerator Housing Assembly | $81.68 Part Advantage |
| 32B |  | W11162042replaces W11036338 Refrigerator Housing Assembly | $81.68 Part Advantage |
| 33 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |

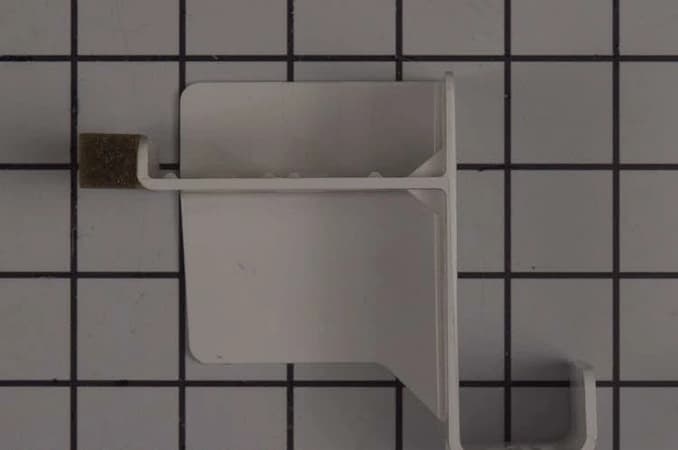

| 34 |  | Refrigerator Bracket Assembly | - |
| 35 |  | W11676611replaces W11175632 Refrigerator Retainer Clip, 1/4-in | $13.95 ApplianceParts Pro |
| 35A | | W11678575replaces W11175631 LOCKING RING (5/16) | $7.42 Part Advantage |

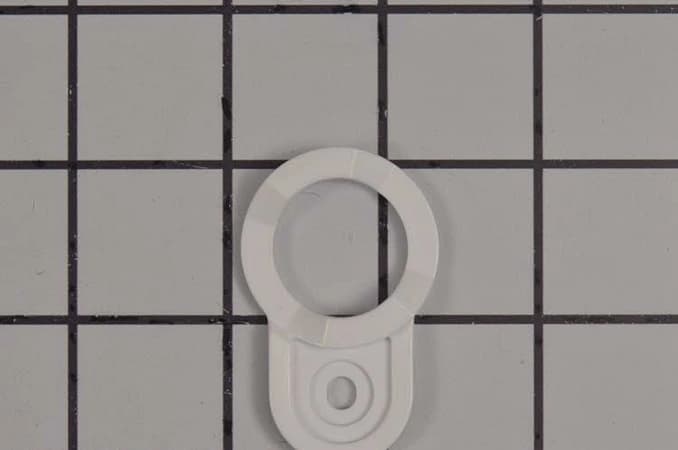

| 36 |  | W11398787replaces W10905504 DOOR CLOSER, LOWER CAM | $4.48 Part Advantage |
| 37 |  | WPW10238092replaces W10691732 Refrigerator Water Tube | $49.43 Part Advantage |
| 38 |  | WPW10277958replaces W10277958 Refrigerator Water Tube Fitting | $29.68 Part Advantage |
| 39 |  | CONNECTOR, DOUBLE LOCK | $14.56 ApplianceParts Pro |
