Model
Kenmore 106.51762511
Refrigerator (Kenmore 10651762511)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.51762511Refrigerator (Kenmore 10651762511)
11 diagrams274 parts

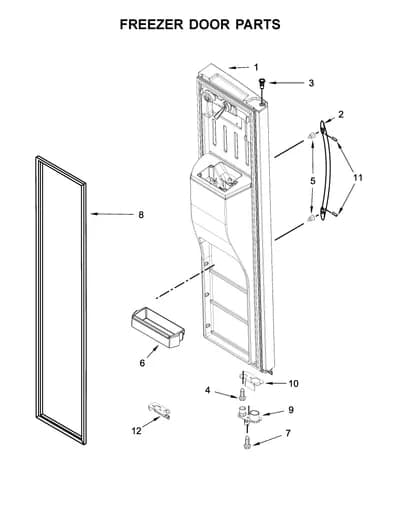

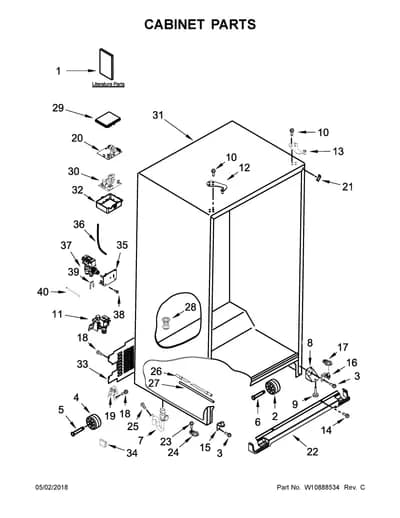

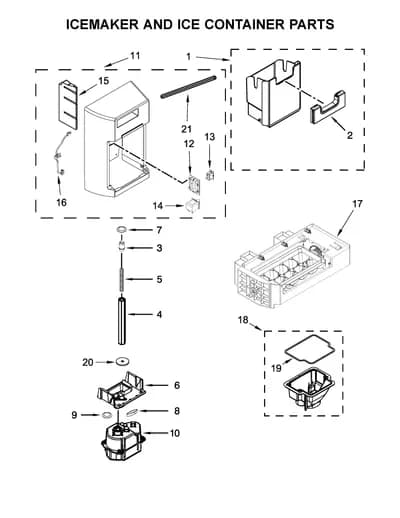

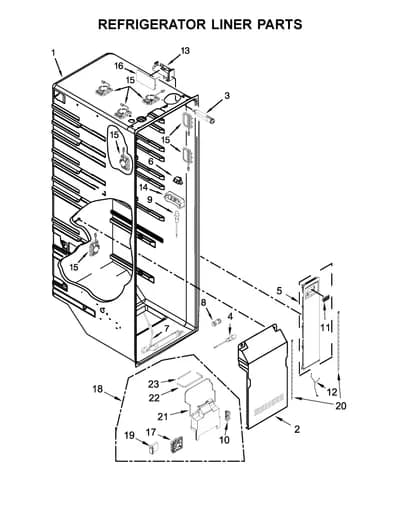

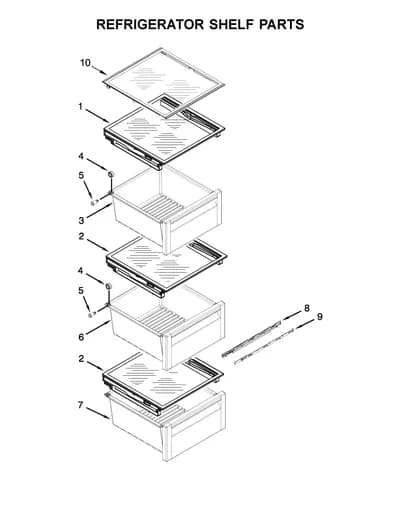

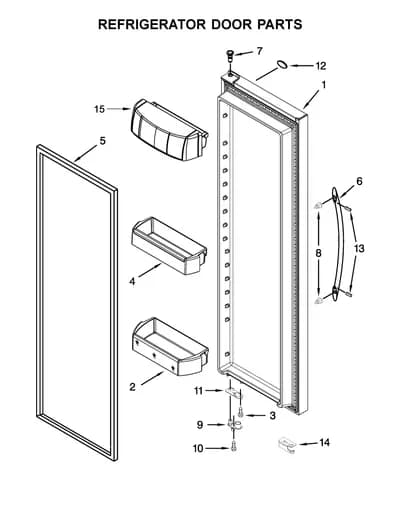

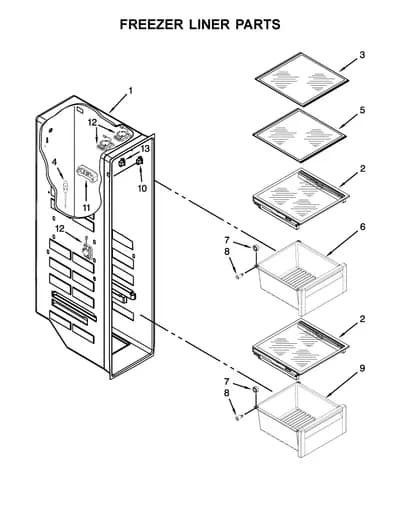

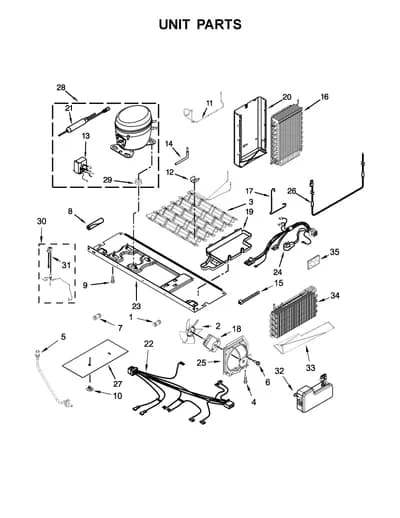

Parts Sections (11)
Diagram

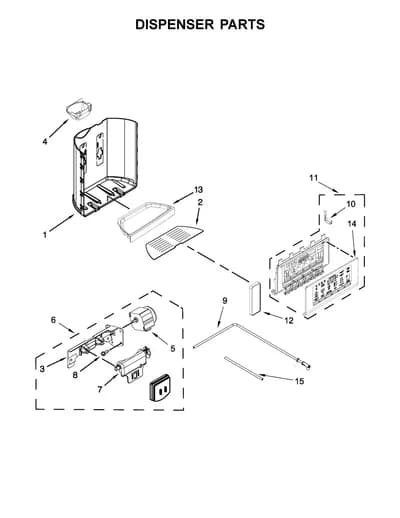

DISPENSER PARTS
Parts in DISPENSER PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | False Wall | - |
| 1A |  | False Wall | - |
| 1B | | False Wall-2 | - |
| 1C | | False Wall-2 | - |
| 2 | | Refrigerator Dispenser Drip Tray (White) | - |
| 2A |  | Refrigerator Dispenser Drip Tray (Black) | $15.32 Parts Dr |
| 2B |  | Refrigerator Grille | - |
| 2C |  | WPW10469406replaces W10469406 Refrigerator Dispenser Drip Tray | - |
| 3 |  | Refrigerator Dispenser Lever Bracket | $46.34 PartSelect |
| 4 |  | WPW10435760replaces W10435760 Guide-ice | $7.73 Part Advantage |

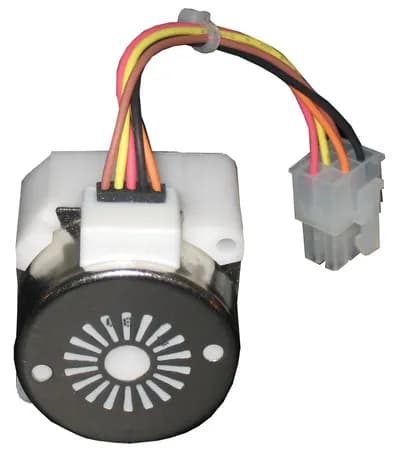

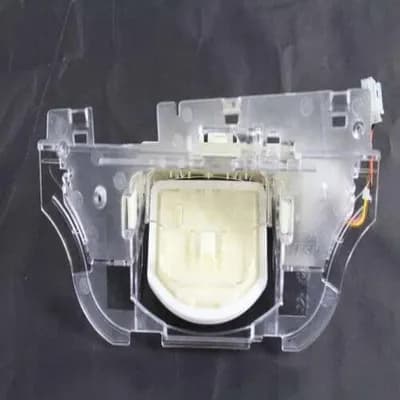

| 5 |  | WPW10205979replaces W10205979 Refrigerator Ice Door Motor | $37.29 Part Advantage |
| 6 |  | W10889430replaces W10781995 Separator Assembly | $64.56 Parts Dr |
| 7 |  | WPW10346124replaces W10346124 Refrigerator Support | $15.45 Part Advantage |
| 8 |  | WP4449745replaces 4449745 Range Screw | - |
| 9 |  | W11566468replaces W10294737 Refrigerator Dispenser Water Spigot | - |
| 10 |  | W11290115replaces W10238083 Refrigerator Light | $34.47 Parts Dr |
| 11 | | W11251011replaces W11036675 User Interface Assembly | - |

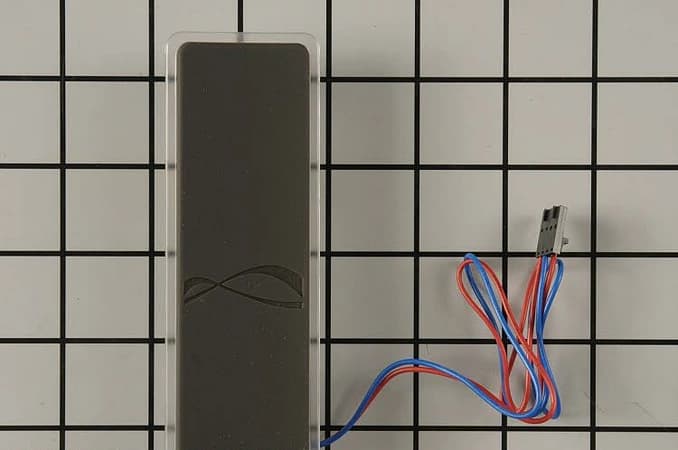

| 12 |  | Refrigerator Dispenser Actuator Pad | $28.77 Parts Dr |
| 12A | | Refrigerator Pad | - |
| 12B |  | Refrigerator Dispenser Actuator Pad (Bisque) | - |
| 12C |  | W11684618replaces W10460952 Refrigerator Dispenser Actuator Pad (Gray) | $25.24 Parts Dr |
| 13 |  | Refrigerator Dispenser Drip Tray | $34.80 RepairClinic |
| 13A |  | Refrigerator Dispenser Drip Tray | - |
| 13B | – | W10469423 Refrigerator Drip Tray | - |
| 13C | | Refrigerator Dispenser Drip Tray | - |
| 14 |  | W10854961replaces W10468079 Refrigerator Dispenser Cover | - |

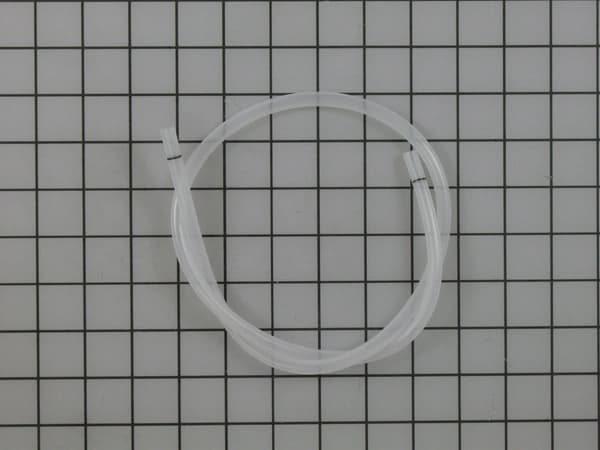

| 15 |  | W11619800replaces W10876364 Refrigerator Ice Maker Water Tubing | $38.58 Parts Dr |
