Kenmore 106.51764510
Refrigerator (Kenmore 10651764510)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.51764510Refrigerator (Kenmore 10651764510)
11 diagrams263 parts

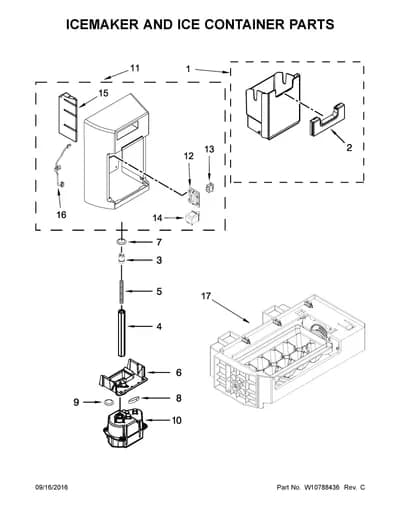

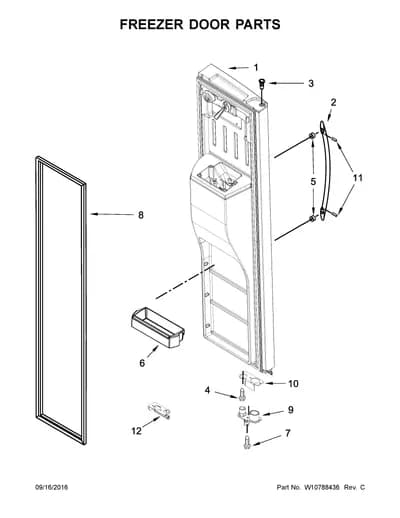

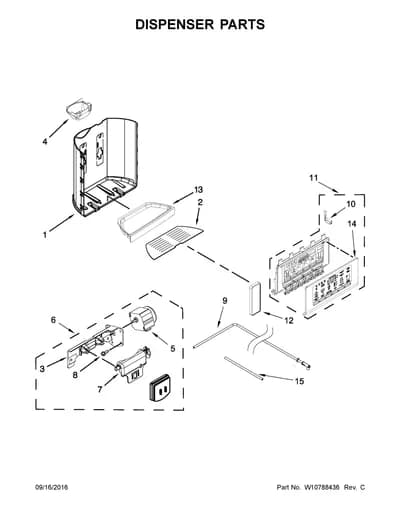

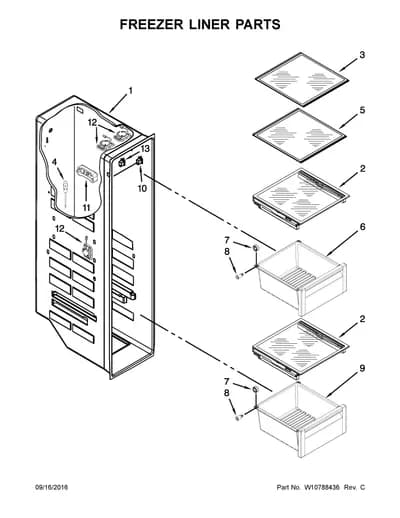

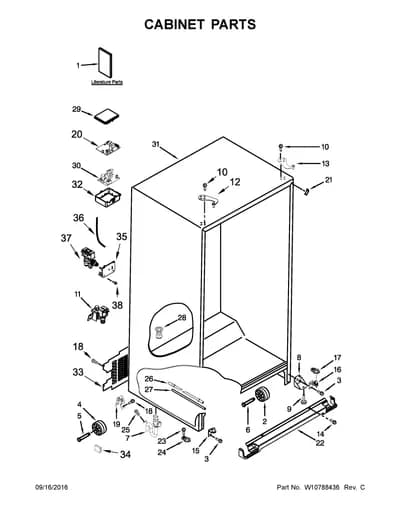

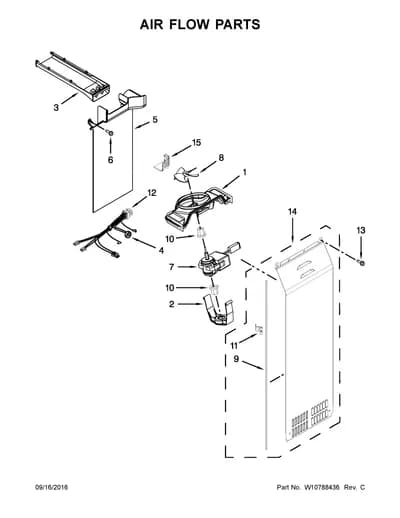

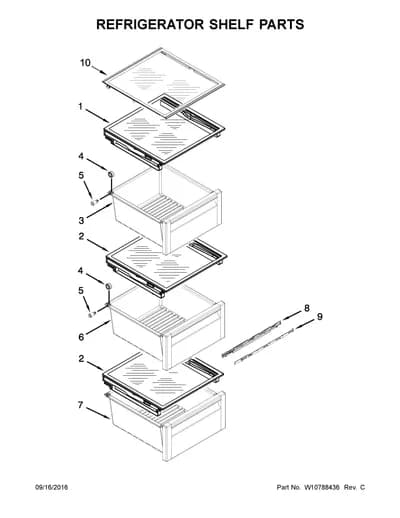

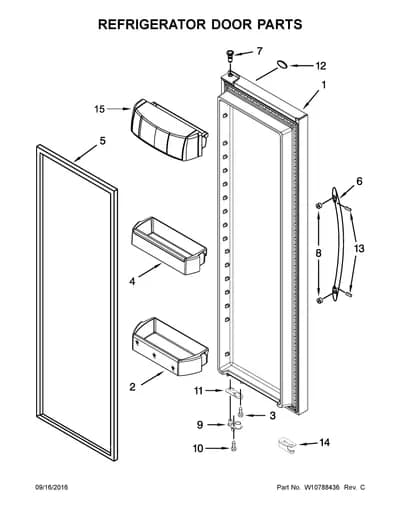

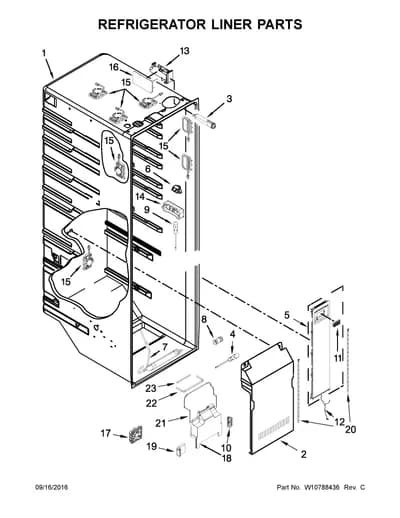

Parts Sections (11)
Diagram

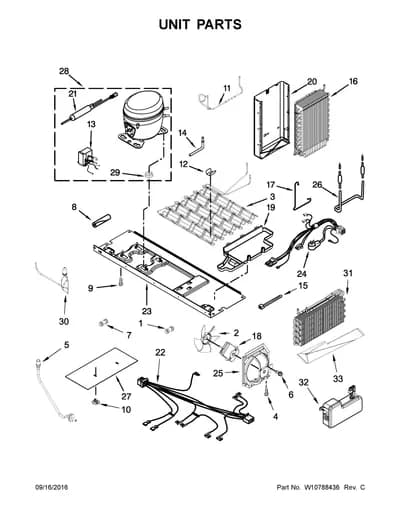

UNIT PARTS
Parts in UNIT PARTS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10271543replaces W10271543 Refrigerator Water Tube Fitting | $11.81 Part Advantage |
| 2 |  | W11458267replaces 2225834 Fan Blade | $6.44 Part Advantage |
| 3 |  | Refrigerator Condenser | - |
| 4 | | Refrigerator Screw | $8.95 ApplianceParts Pro |
| 5 |  | W11409190replaces W10223368 Refrigerator Drain Tube | $23.34 Part Advantage |
| 6 | | WPW10171469replaces W10171469 Refrigerator Screw | - |
| 7 |  | WPW10277958replaces W10277958 Refrigerator Water Tube Fitting | $29.68 Part Advantage |
| 8 |  | W11751592replaces W10303521 Refrigerator Sleeve | $11.13 Part Advantage |
| 9 |  | 3400524replaces W10142287 SCREW | $8.70 ApplianceParts Pro |
| 10 |  | Jenn-Air Clip | - |
| 11 |  | WPW10223328replaces W10223328 Refrigerator Tube | $68.95 ApplianceParts Pro |
| 12 |  | W10683556replaces W10248621 Clip | $12.51 ApplianceParts Pro |
| 13 |  | W11087200replaces W10710090 Refrigerator Inverter | $99.44 Part Advantage |
| 14 |  | W10858105replaces 2325479 Refrigerator Refrigerant Process Tube | - |
| 15 | | WP2205813replaces 2205813 Refrigerator Water Supply Tube Strap | $4.47 ApplianceParts Pro |
| 16 |  | WP2188822replaces 2188822 Refrigerator Evaporator | $189.20 Part Advantage |
| 17 |  | WP2161324replaces 2161324 Refrigerator Defrost Clip | $5.78 Parts Dr |
| 18 |  | W11127829replaces W10527155 Refrigerator Condenser Fan | $76.14 Part Advantage |
| 19 |  | Refrigerator Defrost Drain Pan | - |
| 20 | | Refrigerator Heat Shield | - |
| 21 |  | WPW10143759replaces W10286069 Drier Tube | $13.43 Part Advantage |
| 22 |  | W11700341replaces W10679948 Refrigerator Compressor Wire Harness | $39.41 ApplianceParts Pro |
| 23 |  | Refrigerator Base Plate | - |
| 24 |  | WPW10242407replaces W10242407 Refrigerator Power Cord | $33.71 Parts Dr |
| 25 |  | WPW10251467replaces W10251467 Refrigerator Air Baffle | $62.89 RepairClinic |
| 26 |  | WPW10495967replaces W10495967 Refrigerator Defrost Heater | $58.69 Part Advantage |
| 27 |  | Refrigerator Compressor Access Cover | $67.95 ApplianceParts Pro |
| 28 |  | W10779331replaces W10695094 Compr-emb,vc | $403.34 Part Advantage |
| 29 | | W11661108replaces 2183042 Grommet | $13.95 ApplianceParts Pro |
| 30 |  | W11590197replaces W10331270 Refrigerator Refrigerant Valve | $63.32 Part Advantage |
| 31 |  | WPW10643261replaces W10643261 Refrigerator Evaporator | $173.28 Parts Dr |
| 32 |  | W11038857replaces W10724241 Led Ps+drive | $145.21 Parts Dr |
| 33 |  | W11720794replaces W10317862 Refrigerator Drain Pan | $55.22 Part Advantage |
| NI | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
