ModelKenmore
106.53594300Refrigerator (Kenmore 10653594300)
11 diagrams328 parts

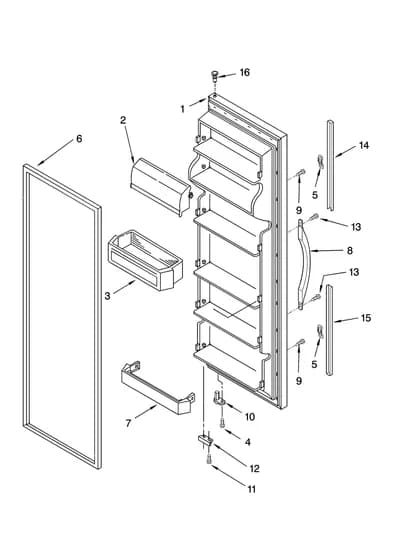

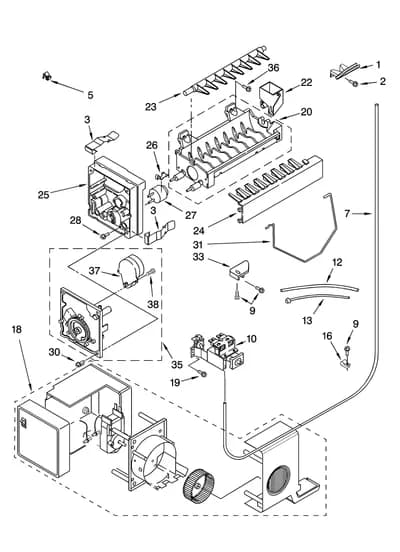

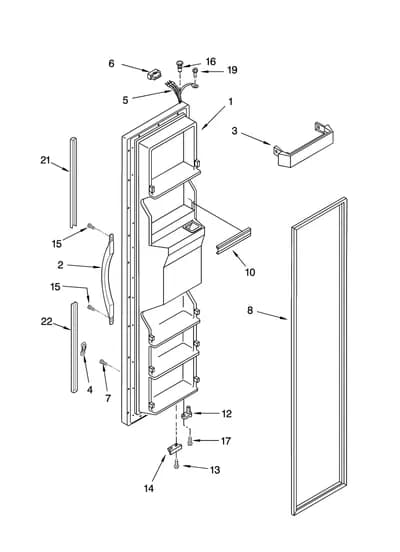

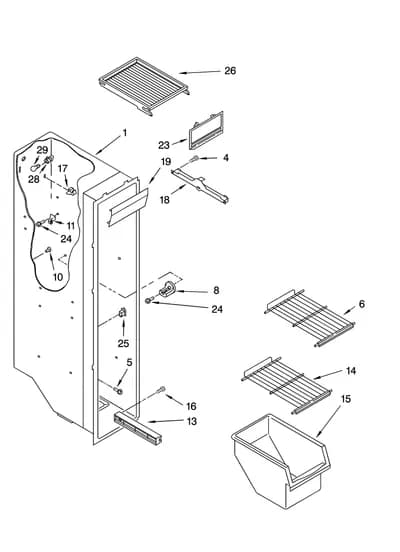

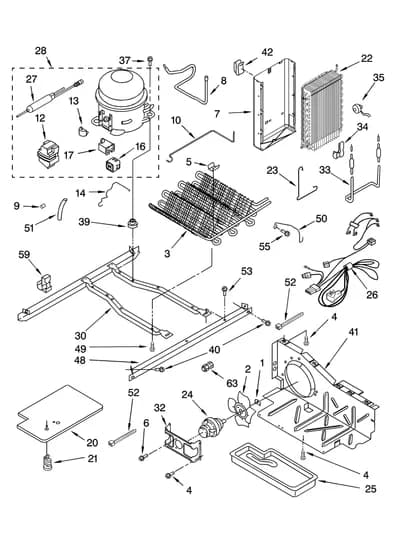

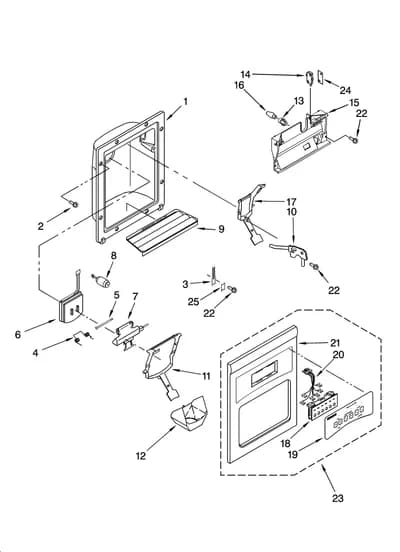

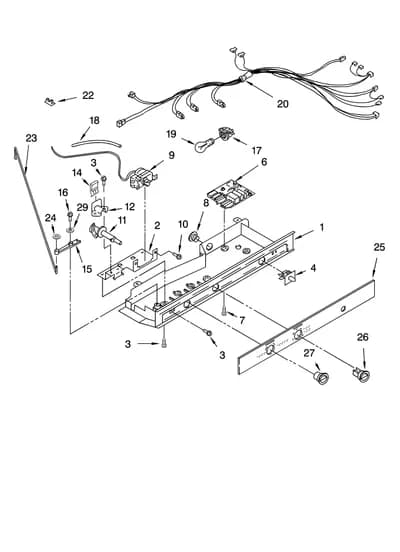

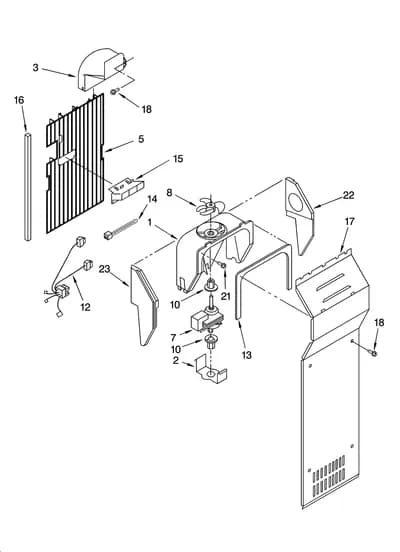

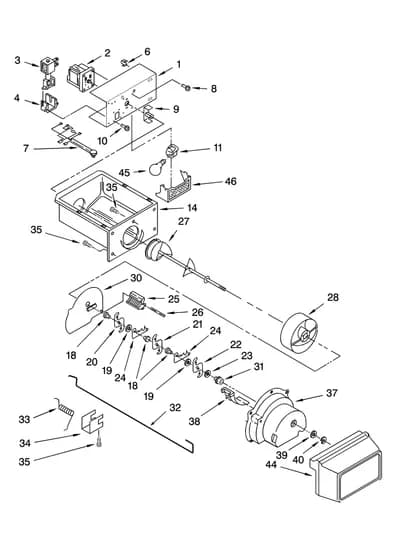

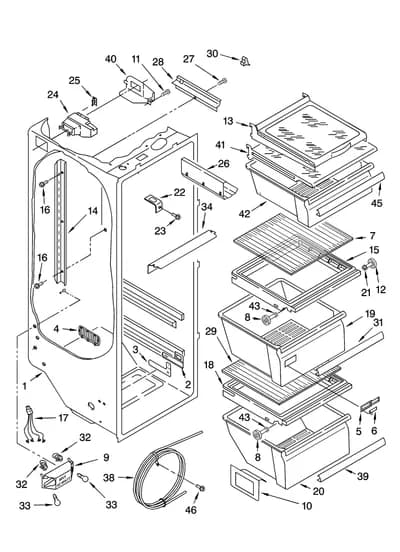

Parts Sections (11)
Diagram

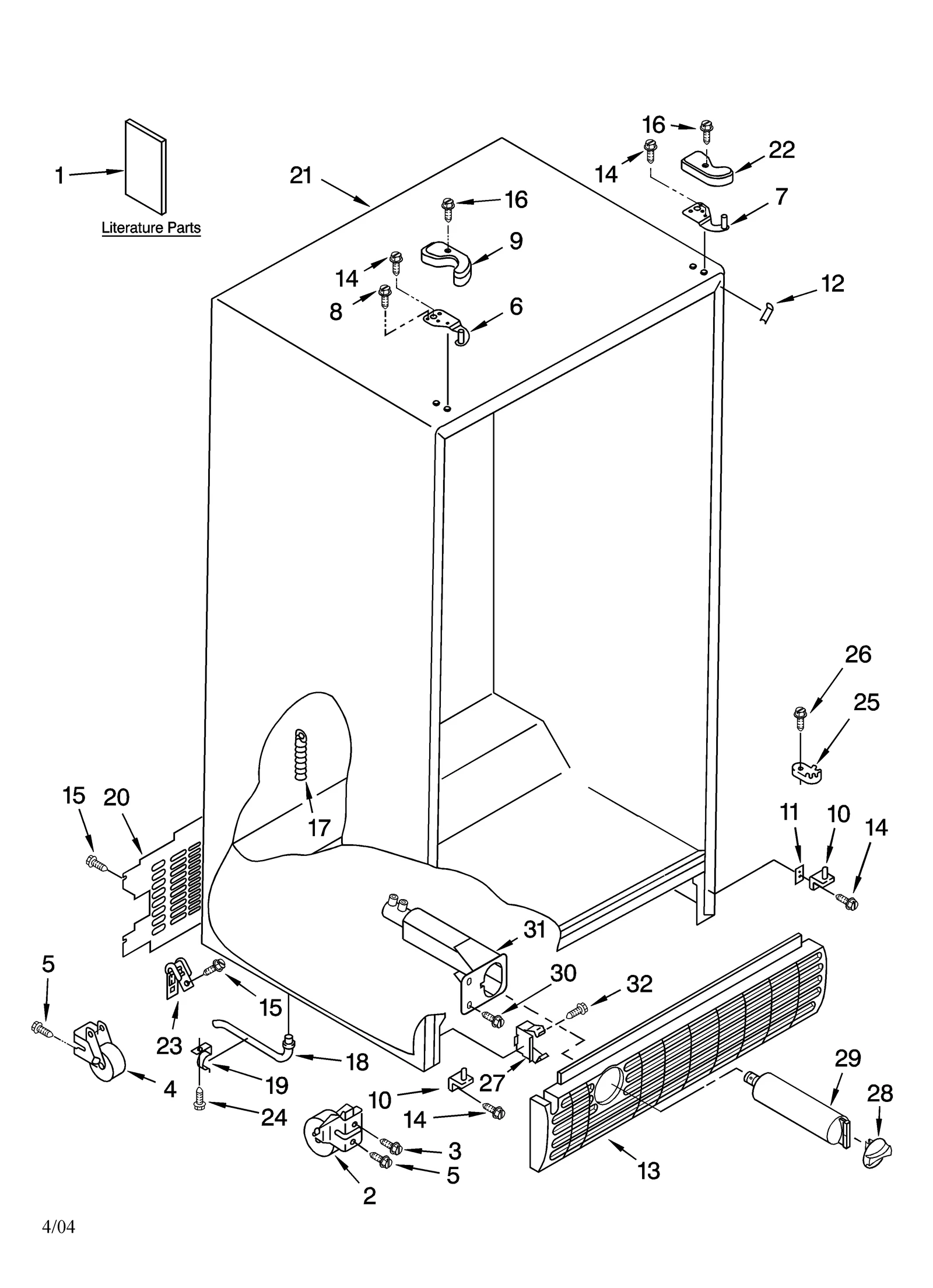

CABINET PARTS
Parts in CABINET PARTS
43 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | LIT2261015 Refrigerator Energy Guide | - |
| 1A | – | LIT2261018 Refrigerator Energy Guide | - |
| 1B | – | LIT2260872 Refrigerator Owner's Manual | - |
| 1C | – | LIT2255381 Refrigerator Technical Sheet | - |
| 1D | – | LIT628370 Service Sheet | - |
| 1E | – | LIT2261012 Refrigerator Parts List | - |
| 1F | – | LIT787316 Ice Maker Repair Manual | - |
| 2 |  | Refrigerator Cabinet Roller | Discontinued |
| 3 |  | W10850698replaces 3400517 Refrigerator Screw | $11.71 ApplianceParts Pro |
| 4 |  | WPW10250570replaces 2196236 Refrigerator Roller Assembly, Rear | $29.47 PartSelect |
| 5 |  | WP489427replaces 489427 Refrigerator Screw | $5.00 RepairClinic |
| 6 |  | WP2203770replaces 2203770 Refrigerator Door Hinge | $52.41 ApplianceParts Pro |
| 7 |  | WP2203771replaces 2203771 Refrigerator Door Hinge | $32.72 Part Advantage |
| 8 |  | WP489128replaces 8281149 Refrigerator Screw | $5.96 Parts Dr |
| 9 |  | WP2203407Wreplaces 2203407W Refrigerator Cover | $14.93 RepairClinic |
| 9A |  | Ikea Refrigerator Door Hinge Cover (Bisque) | $9.23 RepairClinic |
| 10 |  | 8201707replaces 2217075 Refrigerator Door Hinge | $28.76 Part Advantage |
| 11 |  | WP2181911replaces 2156056 Refrigerator Shim | $13.12 Parts Dr |
| 12 |  | Refrigerator Trim Cap | - |
| 12A | | 2196150NLA Refrigerator Filler | Discontinued |
| 13 |  | W10803964replaces 2198468W Refrigerator Grille | $52.22 Parts Dr |
| 13A | | 2198468TNLA Refrigerator Grille | Discontinued |
| 14 |  | WP489497replaces 489497 Refrigerator Screw | $4.19 Part Advantage |
| 15 | | Screw | $9.62 PartSelect |
| 16 |  | WP8281227replaces 8281227 Refrigerator Screw | $4.19 Part Advantage |
| 17 |  | W11566763replaces 940139 Fitting | $19.22 Part Advantage |
| 18 |  | WP1108438replaces 1108438 Refrigerator Drain Tube | $11.17 Parts Dr |
| 19 |  | WP1108439replaces 1108439 Refrigerator Drain Clip | - |
| 20 |  | WP2188755replaces 2252036 Refrigerator Cover Unit | $69.02 Part Advantage |
| 21 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 22 |  | WP2203408Wreplaces 2203408W Refrigerator Hinge Cover | - |
| 22A | | Refrigerator Cover | - |
| 23 |  | Clamp | - |
| 24 |  | WP489464replaces 489464 Refrigerator Screw | $9.62 PartSelect |
| 25 |  | WPW10329686replaces 2155311 Refrigerator Door Closer Cam | $3.29 Part Advantage |
| 26 |  | WP489483replaces 489483 Appliance Screw | $11.77 PartSelect |
| 27 |  | WP2155013replaces 2155013 Refrigerator Toe Grille Clip | $3.38 Part Advantage |
| 28 |  | WP2186494Wreplaces 2186494W Refrigerator Water Filter Cap (White) | $33.87 Parts Dr |
| 28A |  | WP2186494Treplaces 2186494T Refrigerator Water Filter Cap (Bisque) | $5.63 Part Advantage |
| 29 |  | EDR5RXD1replaces 9908 Refrigerator Filter | $46.87 Part Advantage |
| 30 |  | WP489500replaces 489500 Refrigerator Door Trim Screw | $5.00 RepairClinic |
| 31 |  | WP2186443replaces 2186443 Refrigerator Water Filter Housing | $37.39 Part Advantage |
| 32 | | WP489128replaces 488500 Screw | $5.96 Parts Dr |
