Model
Kenmore 106.54536400
Side-By-Side Refrigerator (Kenmore 10654536400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.54536400Side-By-Side Refrigerator (Kenmore 10654536400)
11 diagrams357 parts

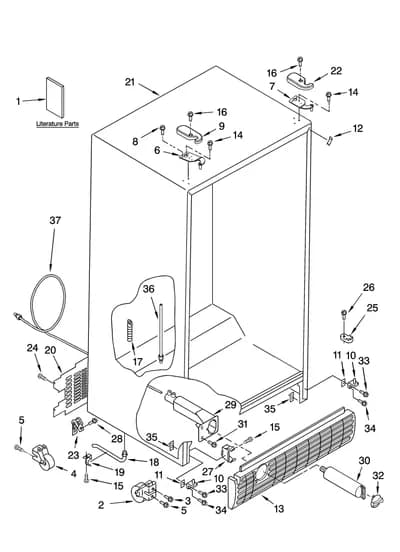

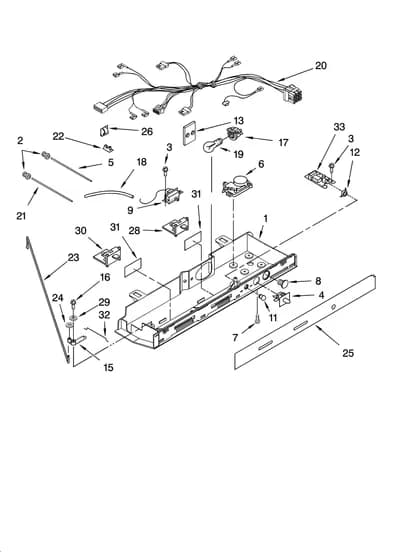

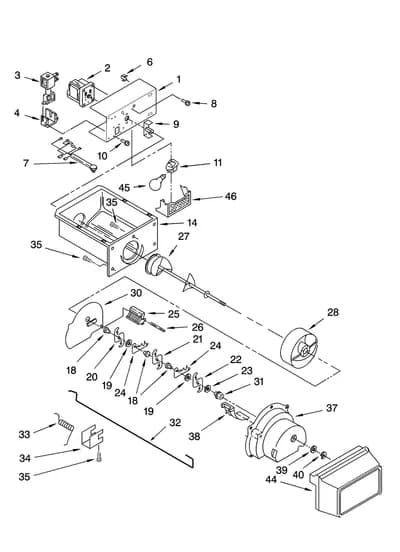

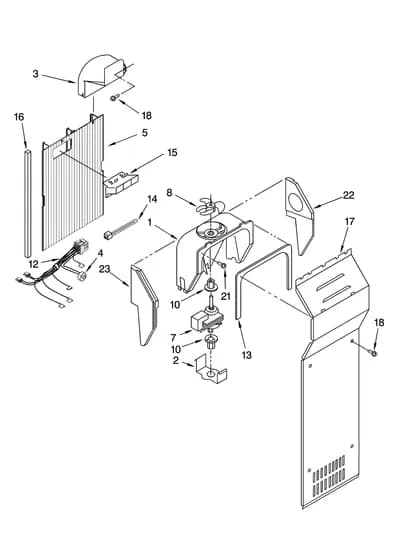

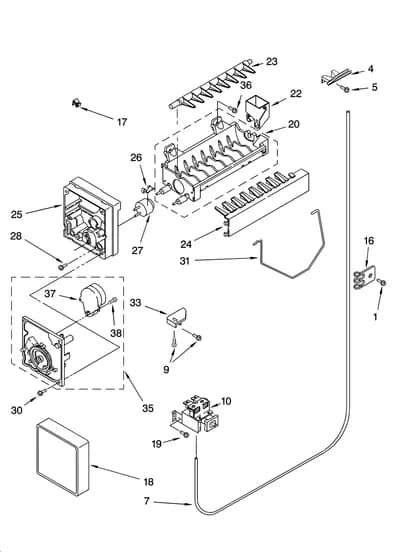

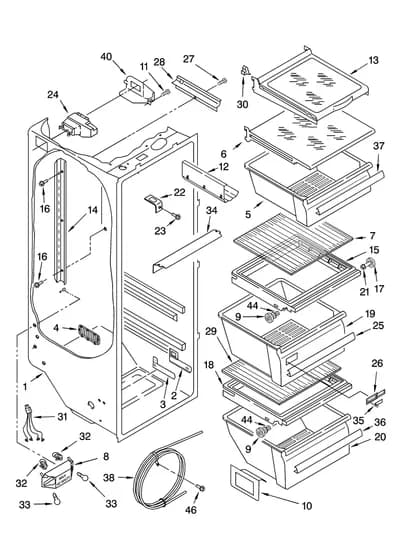

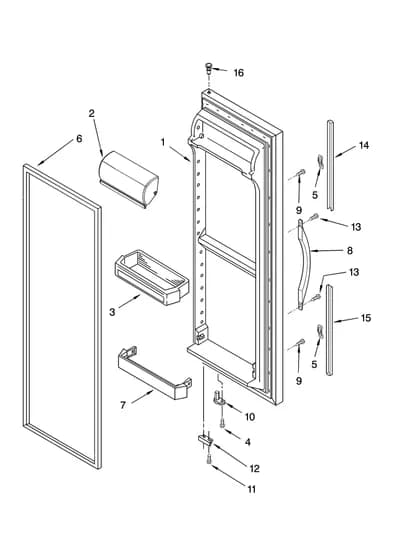

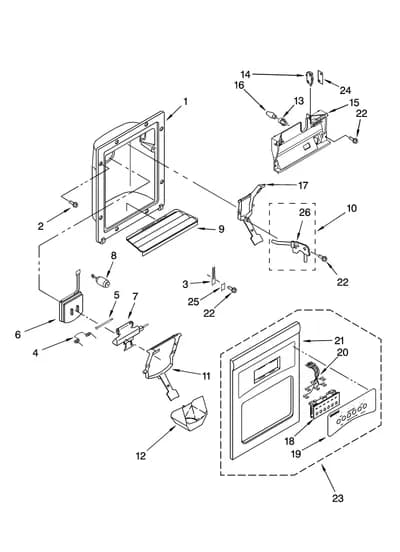

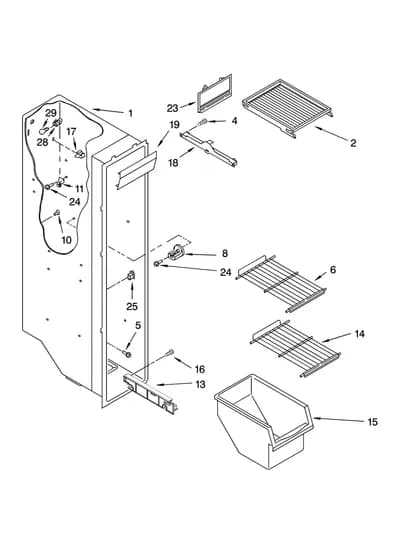

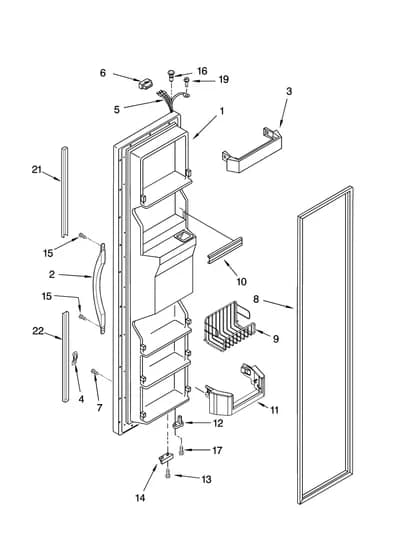

Parts Sections (11)
Diagram

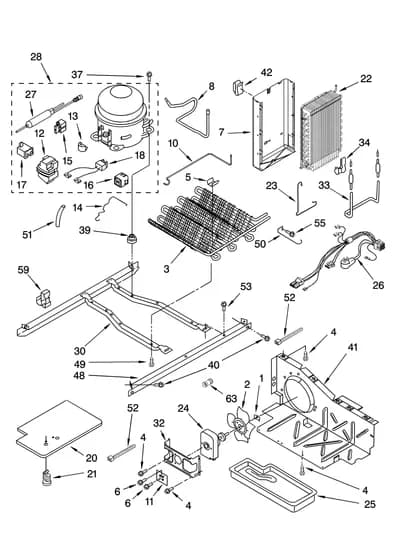

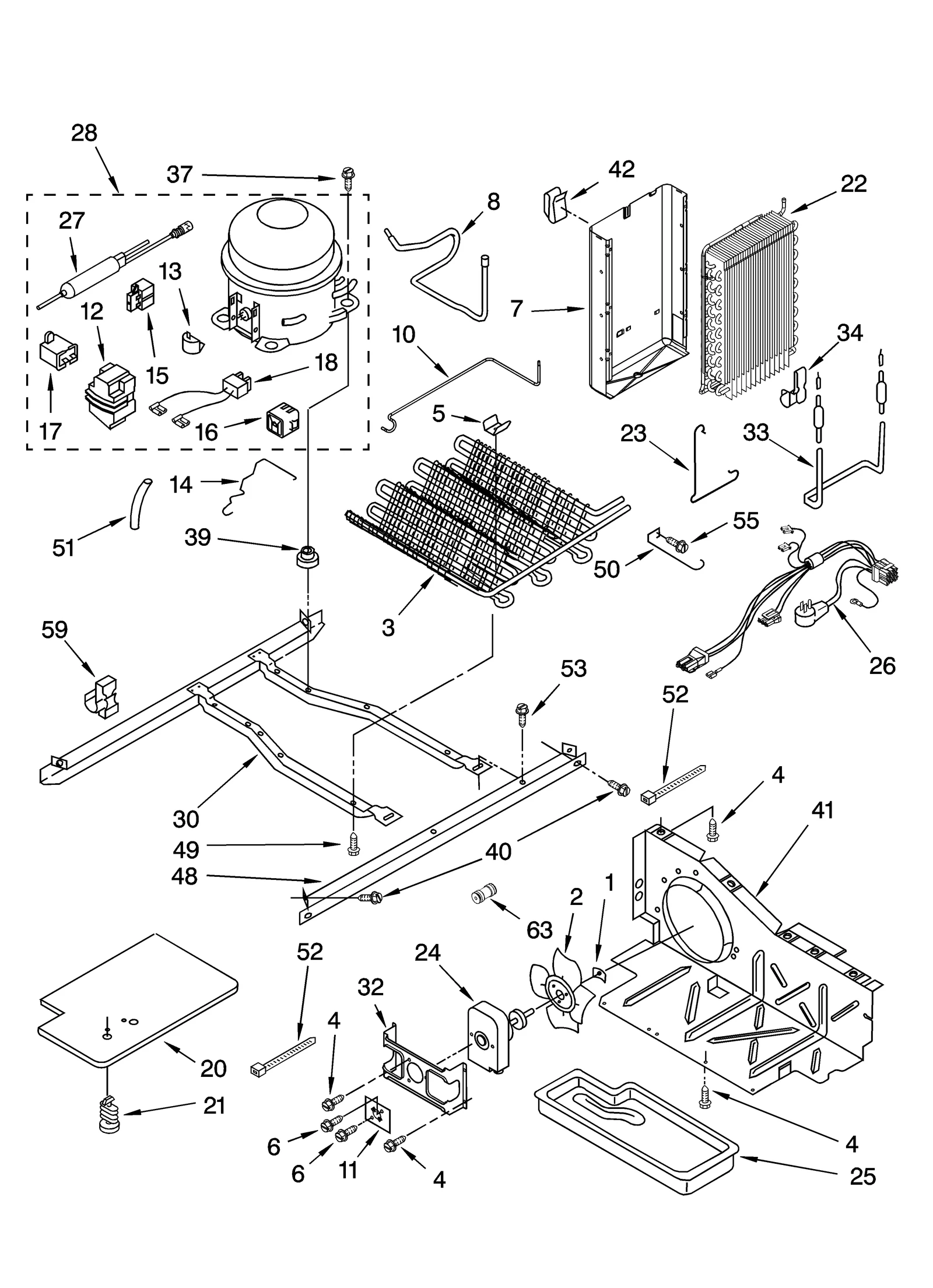

UNIT PARTS
Parts in UNIT PARTS
53 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP486692replaces 486692 Speed Nut | $5.04 Parts Dr |
| 2 |  | W11458267replaces 2225834 Fan Blade | $6.44 Part Advantage |
| 3 |  | 2324712replaces 2223953 Refrigerator Condenser | $159.60 Parts Dr |
| 4 |  | WP489464replaces 489464 Refrigerator Screw | $9.62 PartSelect |
| 5 |  | W10683556replaces 2216914 Refrigerator Clip | $12.51 ApplianceParts Pro |
| 6 |  | Roper Refrigerator Screw | - |
| 7 | | Refrigerator Shield | - |
| 8 |  | WP2205765replaces 2205765 Refrigerator Suction Line | - |
| 10 |  | Kirkland Refrigerator Refrigerant Capillary Tube | - |
| 11 | | Refrigerator Insert | - |
| 12 |  | WP2162358replaces 4387731 Terminal Cover | $30.56 Part Advantage |
| 13 |  | WP2154697replaces 2154697 Refrigerator Overload and PTC Start Relay | $66.44 ApplianceParts Pro |
| 14 | | Refrigerator Clip | - |
| 15 |  | W10920279replaces 2183454 Refrigerator Start Relay | $51.63 PartSelect |
| 16 | | 8201786VPreplaces 2188833 Start Device | - |
| 17 |  | WPW10662129replaces 1118576 Run Capacitor | $24.86 Part Advantage |
| 18 |  | WP2172890replaces 4387765 Refrigerator Run Capacitor | - |
| 20 | | Refrigerator Cover Unit | Discontinued |
| 21 |  | Refrigerator Clip | $11.71 ApplianceParts Pro |
| 22 |  | WP2188823replaces 2188823 Refrigerator Evaporator | $176.75 Part Advantage |
| 23 |  | WP2161324replaces 2161324 Refrigerator Defrost Clip | $5.78 Parts Dr |
| 24 |  | W10124096replaces 2188729 Condenser Motor | $65.83 Part Advantage |
| 25 |  | WPW10614158replaces 1105523 Refrigerator Drain Pan | $41.30 Part Advantage |
| 26 |  | WPW10309395replaces 2187783 Refrigerator Wire Harness | $139.87 Parts Dr |
| 27 |  | W10843121replaces 2199167 Drier-tue | $22.78 Part Advantage |
| 27A | | W10843121replaces 4387019 Refrigerator Dryer Tube | $22.78 Part Advantage |
| 28 |  | W10309994replaces 2212192 Refrigerator Compressor | $283.15 Part Advantage |
| 30 |  | 2304904replaces 2157397 Refrigerator Frame | - |
| 32 |  | WP2181929replaces 2181929 Refrigerator Condenser Fan Motor Bracket | $3.78 RepairClinic |
| 33 |  | WP2323198replaces 2188175 Refrigerator Heater | $27.15 Part Advantage |
| 34 | | W11623163replaces 2304287 Refrigerator Clip | - |
| 37 | | Screw | - |
| 39 | | Screw | - |
| 39A |  | WP4387558replaces 4387558 GROMMET | $5.00 RepairClinic |
| 40 |  | Refrigerator Compressor Rail Bracket Screw | - |
| 41 | | W10896764replaces 2196202 Refrigerator Air Baffle | $36.77 Part Advantage |
| 42 | | Exchange Clip | - |
| 48 |  | 2305374replaces 1127911 Rail Unit | $19.48 RepairClinic |
| 49 |  | W11544659replaces 8281232 Refrigerator Screw | $6.41 RepairClinic |
| 50 | – | 2186495 Fan Guard | - |
| 51 |  | W11751592replaces 2161302 Refrigerator Sleeve | $11.13 Part Advantage |
| 52 |  | WPW10339879replaces 2172840 Refrigerator Wire Tie | $2.30 Part Advantage |
| 53 |  | WP489427replaces 489427 Refrigerator Screw | $5.00 RepairClinic |
| 55 |  | WP489478replaces 489478 Refrigerator Screw | $5.00 RepairClinic |
| 59 | | Ice Maker Wire Harness Clamp | - |
| 63 |  | WP4373559replaces 2209709 Refrigerator Fitting | $23.07 Part Advantage |
| NI |  | Sears Refrigerator Service Valve | $21.10 Part Advantage |
| NI |  | WP978025replaces 978025 Refrigerator Service Valve | $26.37 Part Advantage |
| NI |  | Sears Refrigerator Service Valve | $32.89 Part Advantage |
| NI |  | Sears Refrigerator Service Valve | $13.43 Parts Dr |
| NI | | 978028NLA Refrigerator Service Valve | Discontinued |
| NI | | Refrigerator Service Valve | - |
| NI |  | Sears Refrigerator Service Valve, 3/4-in | $23.51 Parts Dr |
